End of Life Product

OMNI-600

The Adder Enclosure
Omni-Directional, 2X2 MIMO LTE Antenna
410 – 3800 MHz, 6.2dBi
A-OMNI-0600-V1-02 )

Key Features

  • 2X2 MIMO high performance omni-directional antenna
  • Consistent gain over a wide frequency band
  • Increased connectivity stability
  • Excellent broadband quality antenna
  • Vandal and water-resistant enclosure
Datasheet Options

The OMNI-600 is a unique new design with improved 2x2 MIMO electrical performance. Its ultra-wideband capability covers all contemporary operating frequencies with excellent balanced gain across the entire spectrum. Unlike many other antennas, higher frequencies are not compromised, ensuring superior performance across all bands.

The antenna design allows for superior pattern control over the full frequency range, making the OMNI-600 a true high-performance omni-directional antenna. This guarantees reliable signal reception in virtually any environment, making it suitable for use worldwide.

Poynting Antennas achieves this innovation through a new antenna configuration that incorporates multiple dipoles and a patented feed network. Additionally, the OMNI-600 is future-proof, supporting the 450 MHz frequency and the 3.5 GHz CBRS band, which is rapidly gaining popularity in various regions and countries.

Technical Specifications for OMNI-600

Additional information

Industry (Application)

, ,

Technology

,

Application Area

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

Enclosure Name

Enclosure Size

Cellular Ports

Product Options/Variants for OMNI-600

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0600-V1-02 SMA (m) Twin HDF-195 / 5m Off White

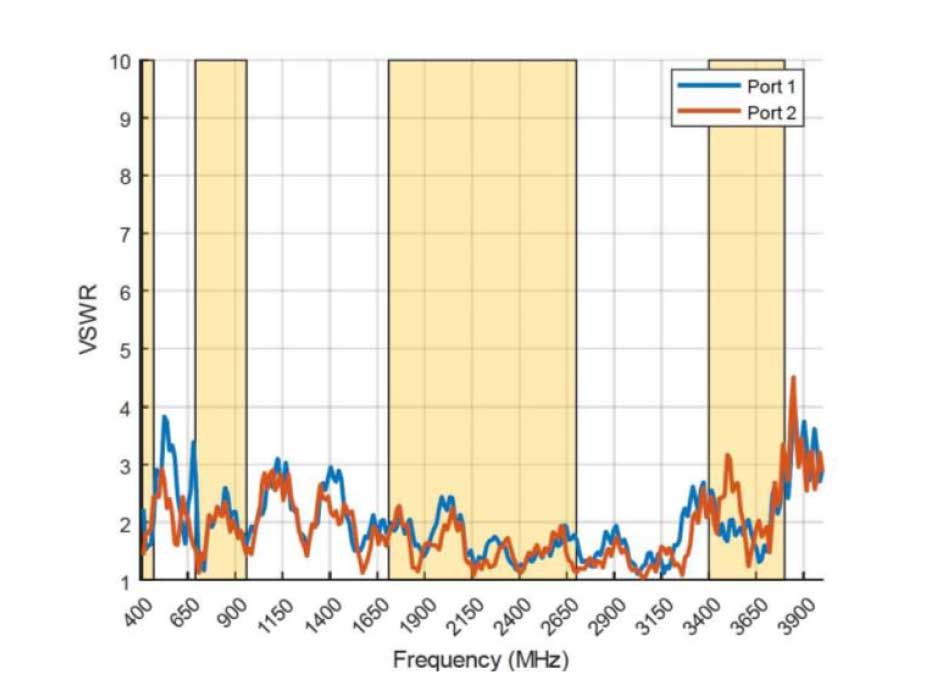

VSWR & Gain

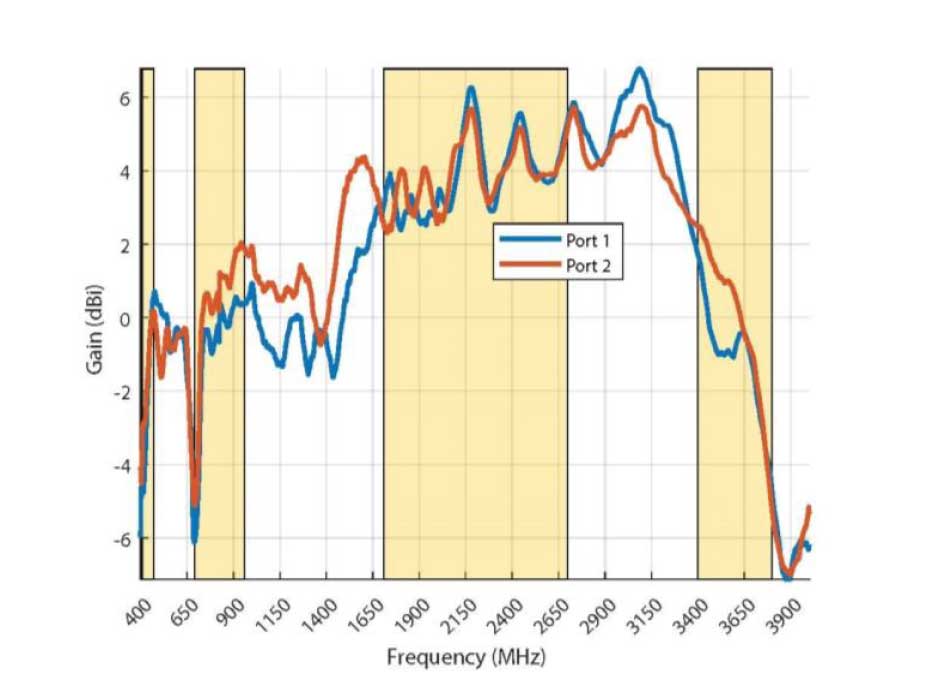

Gain (excluding Cable Loss)

Technical Drawing

Replacement Products
