OMNI-703

The Rhyno Enclosure
Omni-Directional Wi-Fi Antenna
2400 - 2500 MHz; 4.5dBi
POYNTING antennas enable reliable IoT connectivity for open-pit mining, ensuring seamless communication and automation for enhanced operational efficiency.
POYNTING antennas ensure reliable connectivity for underground mining, enabling seamless communication and data access for miners using digital devices and autonomous trucks.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments.
POYNTING antennas provide reliable connectivity for IoT-enabled open-pit mining, supporting seamless communication for unmanned trucks and autonomous vehicles in rugged environments.
POYNTING antennas enable reliable IoT connectivity for rural farming and wind farms, ensuring seamless communication, automation, and efficient energy and agricultural management.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments.
2400-2500 MHzview details below
4.5dBi±5km/3mi coverage*
Omni-Directional
2.4-2.5 GHz
IP69K
-40°C to +80°C
Fire Resistant

Key Features

  • Omni-directional Wi-Fi antenna
  • Suitable for 2.4 GHz Wi-Fi deployment
  • Compliant with IEEE 802.11b/g wireless standard
  • Ideal for IoT and M2M applications
  • Highly rugged and low-profile design
  • High pressure water and dust ingress protected enclosure (IP69K)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0703-V1-01
A-OMNI-0703-V2-01,Omni-Directional Wi-Fi Antenna,Industrial Wi-Fi Featured Image
A-OMNI-0703-V2-01,Omni-Directional Wi-Fi Antenna,Industrial Wi-Fi Back View
A-OMNI-0703-V2-01,Omni-Directional Wi-Fi Antenna,Industrial Wi-Fi Front View
A-OMNI-0703-V2-01,Omni-Directional Wi-Fi Antenna,Industrial Wi-Fi Side View
Rugged Omni-Directional 2.4 GHz Wi-Fi Antenna

The OMNI-703 is a high-performance omni-directional Wi-Fi antenna, part of Poynting’s new "Rhyno" antenna range. Operating in the 2.4 – 2.5 GHz band, this antenna provides reliable connectivity with a maximum gain of 4.5 dBi. Its superior pattern control and durable construction make it ideal for industrial and harsh environments.

Optimised 2.4 GHz Wi-Fi Connectivity: Covers the 2.4 GHz Wi-Fi band, ensuring stable and high-speed connections.
High-Gain Performance: Provides 4.5 dBi peak gain with consistent performance across the entire frequency range.
Omni-Directional Design: Offers 360° coverage, reducing dead zones and enhancing network reliability.
Superior Pattern Control: Ensures stable signal distribution, improving performance in RF-noisy environments.
Built for Harsh Environments: UV-stable ASA housing protects against corrosive industrial, chemical, and toxic environments.
Rugged & Weatherproof Design: IP69K and IK10-rated enclosure ensures durability in extreme conditions.
Customisable Connectivity: Equipped with an N-Type female connector, allowing easy integration with various cable types and lengths.

The OMNI-703 is a reliable and durable Wi-Fi antenna, designed to deliver consistent performance in industrial, commercial, and outdoor applications.

Ideal Applications

  • Smart Utilities: Smart Power Metering, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Smart Environmental & Water Systems
  • Warehouses & Logistics systems
  • Industrial factory automation and M2M systems
  • Farming & Agricultural M2M IoT

Technical Specifications for OMNI-703

Additional information

Industry (Application)

,

Technology

Cellular Freq. Range

Frequency Band

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for OMNI-703

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0703-V1-01 N-Type (f) N/A / N/A Grey

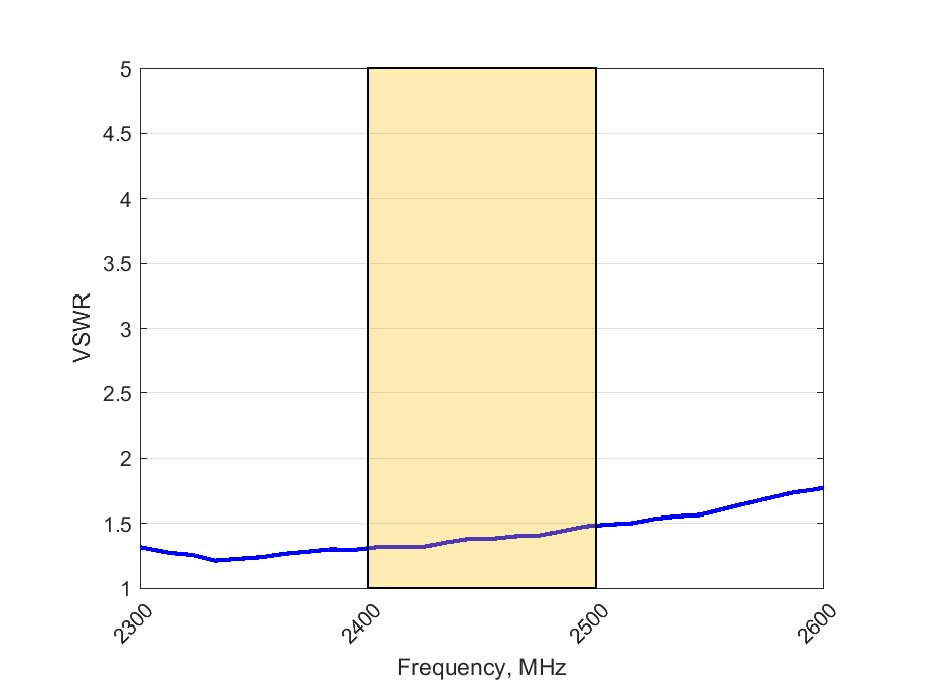

VSWR & Gain

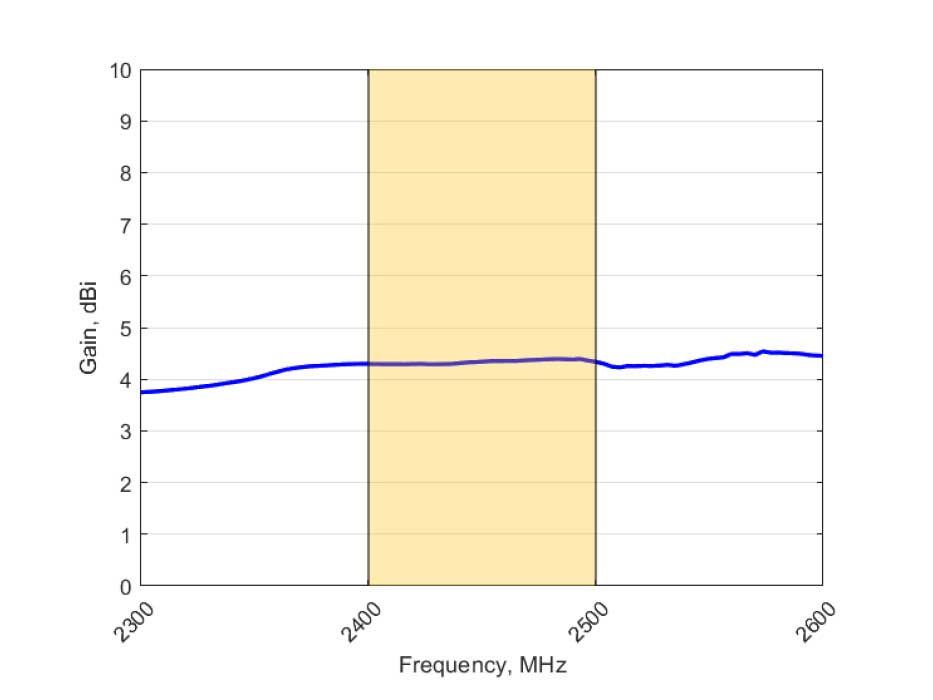

Gain (excluding Cable Loss)

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

OMNI-703 Product Certificates

A-OMNI-0703-V1-01 Declaration of Conformity

High Resolution Images

A-OMNI-0703-V1-01 Feature Image A-OMNI-0703-V1-01 Back View A-OMNI-0703-V1-01 Front View A-OMNI-0703-V1-01 Side View A-OMNI-0703-V1-01 Feature Image - Pole Mounting A-OMNI-0703-V1-01 Back View - Pole Mounting A-OMNI-0703-V1-01 Front View - Pole Mounting A-OMNI-0703-V1-01 Side View - Pole Mounting Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0703-V1-01 EAN: 6009710921951 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.56kg
1.23lbs		 Packaged Dimensions: 386 x 80 x 96 mm
15.2 x 3.15 x 3.78 inch		 Master Box QTY: 35 Master Box Weight: 20.80kg
45.86lbs		 Master Box Dimensions: 610 x 500 x 400 mm
24.02 x 19.68 x 15.75 inch		 Country of Origin: CN
SKU A-OMNI-0703-V1-01
EAN 6009710921951
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.56kg
1.23lbs
Packaged Dimensions 386 x 80 x 96 mm
15.2 x 3.15 x 3.78 inch
Master Box QTY 35
Master Box Weight 20.80kg
45.86lbs
Master Box Dimensions 610 x 500 x 400 mm
24.02 x 19.68 x 15.75 inch
Country of Origin CN
