OMNI-785

The Gecko Enclosure
Omni-Directional, Router/Equipment Mount Wi-Fi Antenna
2400 - 2500 MHz, 5000 - 7200 MHz 3.5dBi
POYNTING antennas ensure reliable connectivity for urban and rural estates, providing seamless communication and internet access for residential and business applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas deliver reliable connectivity for offices in the sky, ensuring seamless internet access and communication in urban city environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for suburban and rural estates, ensuring seamless internet access for homes located on the outskirts of the city. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural houses, ensuring seamless internet access and communication in remote locations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2400-7200 MHzview details below
4dBi±5km/3mi coverage*
Omni-Directional
2.4-2.5 GHz 5.0-7.2 GHz
IP65Dust-tight & Water-resistant
-40°C to +80°C

Key Features

  • Dual-band 2.4 GHz and 5 to 7.2 GHz Wi-Fi antenna
  • Omni-directional antenna with medium gain
  • Compliant with IEEE 802.11b/g/n and 802.11ac wireless standard
  • Highly portable with a quick and compact design
  • Direct router mount
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0785-V1-01
A-OMNI-0785-V2-01,Omni-Directional, Router/Equipment Mount Wi-Fi Antenna,Wi-Fi Router Antenna Featured Image
A-OMNI-0785-V2-01,Omni-Directional, Router/Equipment Mount Wi-Fi Antenna,Wi-Fi Router Antenna Back View
A-OMNI-0785-V2-01,Omni-Directional, Router/Equipment Mount Wi-Fi Antenna,Wi-Fi Router Antenna Front View
A-OMNI-0785-V2-01,Omni-Directional, Router/Equipment Mount Wi-Fi Antenna,Wi-Fi Router Antenna Side View
High-Performance Omni-Directional Dual-Band Wi-Fi Antenna

The OMNI-785 is a versatile omni-directional Wi-Fi antenna designed to enhance connectivity and improve transfer speeds for routers and modems. Covering the 2.4 GHz and 5 – 7.2 GHz Wi-Fi bands, this antenna ensures reliable performance for both older and modern dual-band Wi-Fi technologies.

Dual-Band Wi-Fi Connectivity: Supports 2.4 GHz and 5 – 7.2 GHz bands, ensuring strong and stable connections.
Peak Gain of 4 dBi: Provides enhanced signal strength and improved throughput across Wi-Fi networks.
Omni-Directional Design: Offers 360° coverage for optimal signal distribution and reduced dead zones.
Ground Plane Independent: Can be directly mounted on any equipment with an RP-SMA connector.
Flexible Deployment: Knuckle base allows multiple angle adjustments to accommodate various equipment orientations.
Universal Compatibility: Works with both older Wi-Fi technologies and dual-band Wi-Fi access points.

The OMNI-785 is an excellent solution for resolving channel saturation and optimising Wi-Fi performance, making it a reliable choice for high-speed, flexible wireless connectivity.

Ideal Applications

  • On-the-go: Highly portable
  • Poor data signal reception (indoor or outdoor)
  • Slow or unstable data transmission connection
  • Increase system transmission reliability
  • M2M and IoT applications

Technical Specifications for OMNI-785

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for OMNI-785

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0785-V1-01 RP-SMA (M) N/A / N/A Black

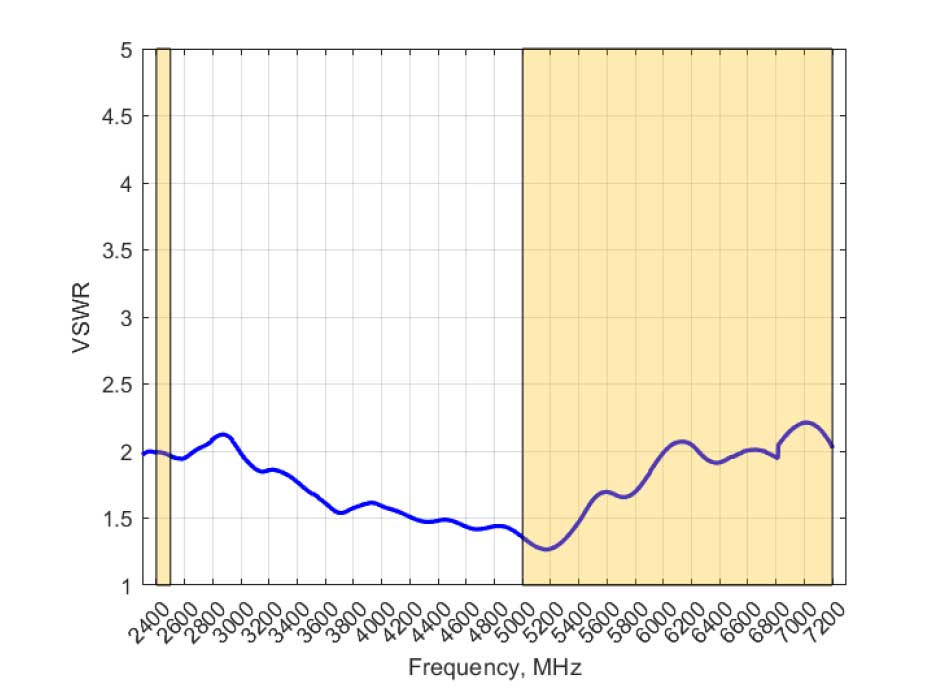

VSWR & Gain

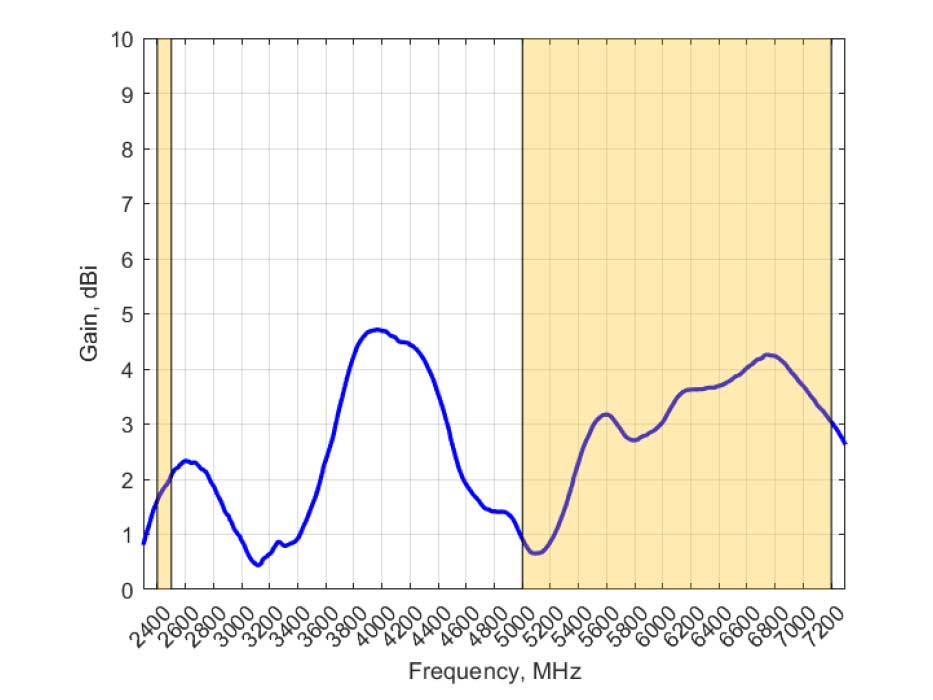

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Cradlepoint
Rajant
Robustel

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

OMNI-785 Product Certificates

A-OMNI-0785-V1-01 Declaration of Conformity

High Resolution Images

A-OMNI-0785-V1-01 Omni-Directional, Router/Equipment Mount Wi-Fi Antenna Feature Image A-OMNI-0785-V1-01 Omni-Directional, Router/Equipment Mount Wi-Fi Antenna Front View A-OMNI-0785-V1-01 Omni-Directional, Router/Equipment Mount Wi-Fi Antenna BackView A-OMNI-0785-V1-01 Omni-Directional, Router/Equipment Mount Wi-Fi Antenna Side View A-OMNI-0785-V1-01 Omni-Directional, Router/Equipment Mount Wi-Fi Antenna Top View Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0785-V1-01 EAN: 6009710923405 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.04kg
0.08lbs		 Packaged Dimensions: 230 x 45 x 13 mm
9.06 x 1.77 x 0.51 inch		 Master Box QTY: 300 Master Box Weight: 13.05kg
28.77lbs		 Master Box Dimensions: 500 x 330 x 320 mm
19.69 x 12.99 x 12.60 inch		 Country of Origin: CN
SKU A-OMNI-0785-V1-01
EAN 6009710923405
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.04kg
0.08lbs
Packaged Dimensions 230 x 45 x 13 mm
9.06 x 1.77 x 0.51 inch
Master Box QTY 300
Master Box Weight 13.05kg
28.77lbs
Master Box Dimensions 500 x 330 x 320 mm
19.69 x 12.99 x 12.60 inch
Country of Origin CN
