OMNI-85

The Gecko Enclosure
Wideband Router/Equipment Mount 5G/LTE Antenna
617 - 3800 MHz, 3.5dBi
POYNTING antennas ensure reliable connectivity for urban and rural estates, providing seamless communication and internet access for residential and business applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas deliver reliable connectivity for offices in the sky, ensuring seamless internet access and communication in urban city environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for suburban and rural estates, ensuring seamless internet access for homes located on the outskirts of the city. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural houses, ensuring seamless internet access and communication in remote locations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-3800 MHzview details below
4dBi±19km/12mi coverage*
Omni-Directional
2.4-2.5 GHz
-20°C to +70°C

Key Features

  • Future proof wideband LTE/5G omni-directional antenna
  • Highly portable and rugged design
  • Increased connectivity stability
  • Quick and compact setup
  • Direct router mount
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0085-V3-01
A-OMNI-0085-V3-01,Wideband Router/Equipment Mount 5G/LTE Antenna,5G Router Antenna Featured Image

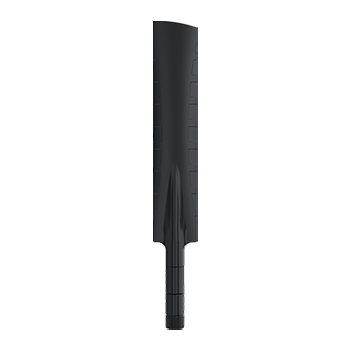

A-OMNI-0085-V3-01,Wideband Router/Equipment Mount 5G/LTE Antenna,5G Router Antenna Back View

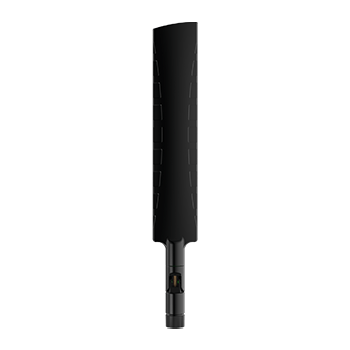

A-OMNI-0085-V3-01,Wideband Router/Equipment Mount 5G/LTE Antenna,5G Router Antenna Front View

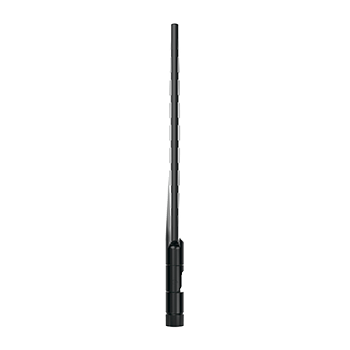

A-OMNI-0085-V3-01,Wideband Router/Equipment Mount 5G/LTE Antenna,5G Router Antenna Side View
Third-Generation Wideband Omni-Directional LTE/5G Antenna

The OMNI-85 is POYNTING’s third-generation “V3” version of its widely used router/equipment mount antenna. This wideband omni-directional antenna supports all contemporary 4G/LTE and future 5G frequency bands, ensuring seamless connectivity across various network technologies. Its compact and versatile design makes it ideal for global deployment.

Wideband Frequency Coverage: Operates from 617 to 3800 MHz, supporting 2G, 3G, 4G, and future 5G networks.
Peak Gain of 3.5 dBi: Provides stable and reliable signal performance across all frequency bands.
Omni-Directional Design: Ensures uniform coverage in all directions for enhanced connectivity.
Ground Plane Independent: Can be mounted directly onto equipment using an SMA female connector.
Flexible Deployment Options: Features a knuckle base that allows for multiple angle adjustments to suit various installation requirements.
Global Compatibility: Designed for use in all parts of the world, ensuring reliable connectivity across multiple network providers.

The OMNI-85 is a versatile and high-performance antenna solution, offering robust and future-proof connectivity for LTE and 5G applications.

Print Friendly, PDF & Email

Ideal Applications

  • Highly portable and ideal for on-the-go implementation
  • Improve poor data signal reception (indoor or outdoor)
  • Improve slow data transmission connection
  • Increase system transmission reliability
  • 5G/LTE fringe areas (close to an 4G/LTE area, but out of reach)
  • Network operator flexibility – as the antenna is wideband, a new antenna is not needed per network operator

Technical Specifications for OMNI-85

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Product Options/Variants for OMNI-85

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0085-V3-01 SMA (m) N/A / N/A Black

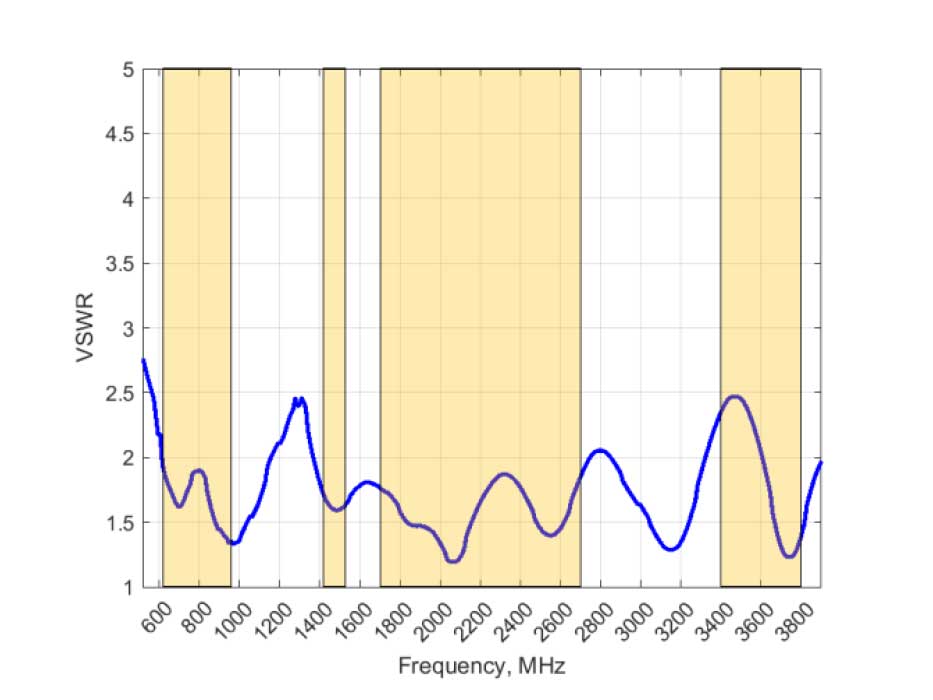

VSWR & Gain

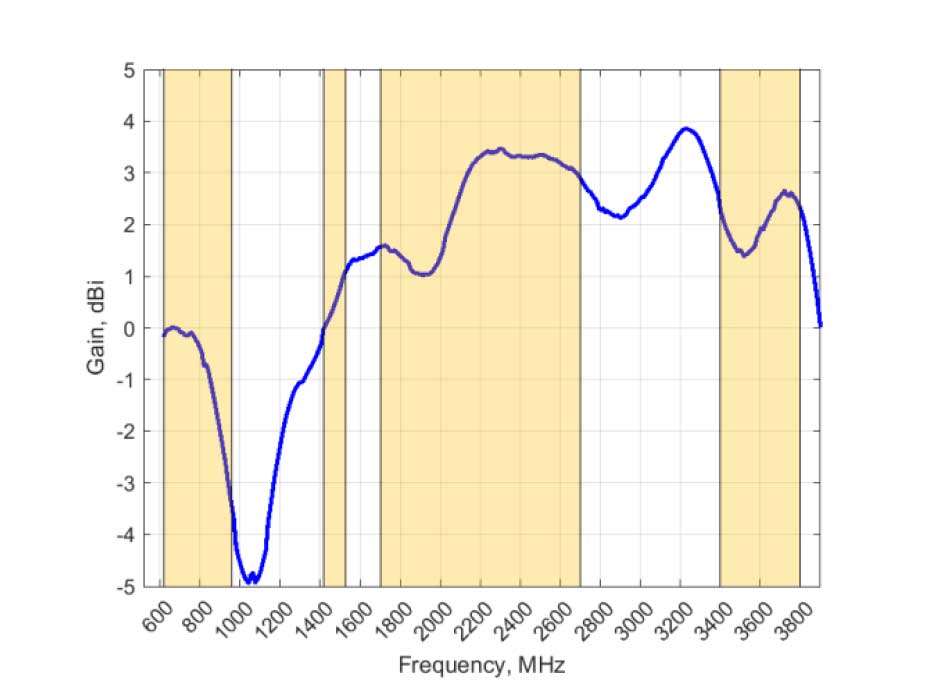

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Advantech
Cisco
InHand Networks
Robustel

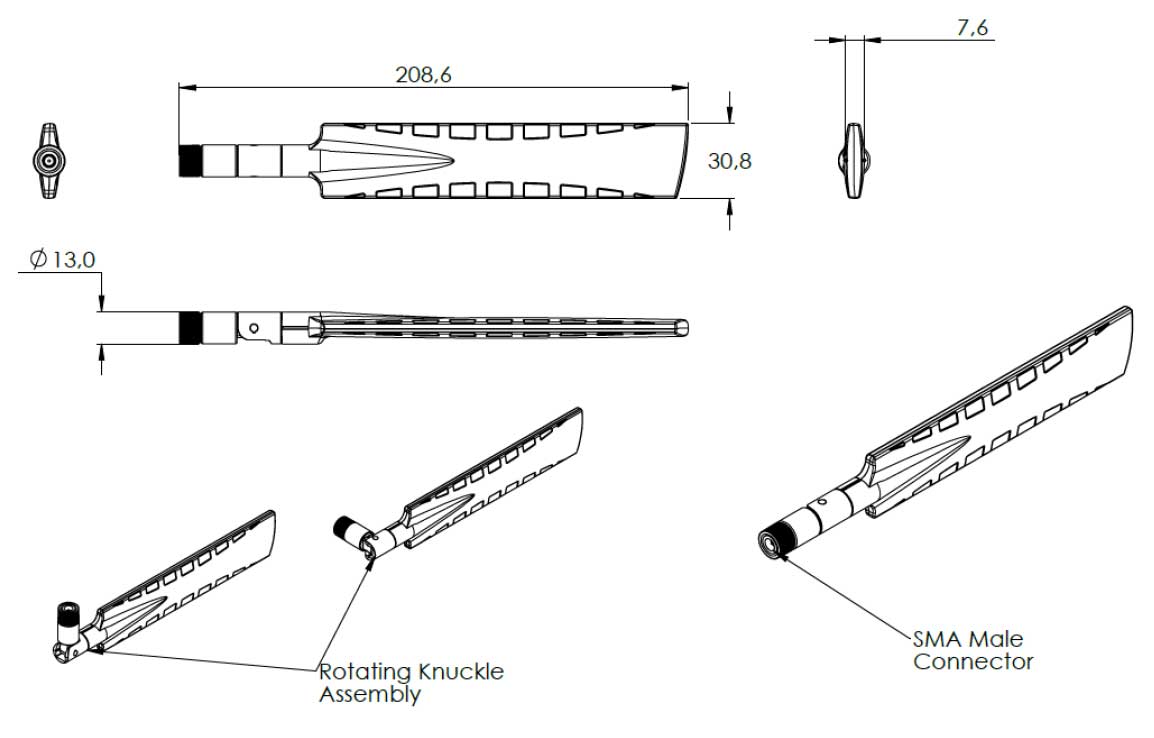

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-OMNI-0085-V3-01 Feature Image A-OMNI-0085-V3-01 Back View A-OMNI-0085-V3-01 Front View A-OMNI-0085-V3-01 Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0085-V3-01 EAN: 6009710921098 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.04kg
0.09lbs		 Packaged Dimensions: 230 x 320 mm
9.06 x 12.60 inch		 Master Box QTY: 300 Master Box Weight: 13.06kg
28.79lbs		 Master Box Dimensions: 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch		 Country of Origin: CN
SKU A-OMNI-0085-V3-01
EAN 6009710921098
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.04kg
0.09lbs
Packaged Dimensions 230 x 320 mm
9.06 x 12.60 inch
Master Box QTY 300
Master Box Weight 13.06kg
28.79lbs
Master Box Dimensions 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
Country of Origin CN
