PUCK-12-V2

The PUCK Enclosure
2-in-1 Transportation & IoT/M2M Antenna
2400 - 2500 MHz, 5000 - 7200 MHz, 7.5dBi; 2X2 Wi-Fi (MIMO)
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for buses and tour buses, providing seamless internet access for passengers in transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for open-pit mining, ensuring seamless communication and automation for enhanced operational efficiency. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2400-7200 MHzview details below
Wi-Fi: 7.5dBi±xxkm/xxmi coverage*
Omni-Directional
2.4-2.5 GHz 5.0-7.2 GHz
2×2 MIMO
-40°C to +80°C
Fire Resistant
IP69K

Key Features

  • 2-in-1 high performance omni-directional antenna
  • Dual-band Wi-Fi, 2.4 GHz, 5 GHz and 6GHz frequency bands
  • 2X2 MIMO for improved performance
  • Antenna supports Wi-Fi-6e/Wi-Fi-7/Bluetooth
  • Robust, vandal resistant and waterproof enclosure (IP 69K)
  • Ultra-versatile mounting options for easy installation
Supported Connectivity Technologies

Datasheet Options
POYNTING Antenna Solution Finder
A-PUCK-0012-V2-01
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Featured Image Colour Options in White and Black
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Side View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Side View
PUCK-12-V2 - Image 10
Compact High-Performance 2x2 MIMO Wi-Fi Antenna

POYNTING’s PUCK range introduces a compact yet powerful antenna solution for various applications, including IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming. The PUCK-12 is a 2-in-1 antenna system housed in a small, durable enclosure, making it ideal for high-performance Wi-Fi connectivity in space-constrained environments.

Dual-Band 2×2 MIMO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
Compact & Versatile Design: Small-profile form factor ensures easy integration across various industries.
Optimised Radiation Patterns: Offers an excellent balance of omnidirectionality, pattern diversity, and signal efficiency for improved connection stability.
Superior High-Frequency Performance: Delivers exceptional throughput and reliability, especially at higher frequency bands.
Ideal for Harsh Environments: Designed for robust Wi-Fi performance in industrial, transportation, and remote monitoring applications.

The PUCK-12 is a reliable, high-efficiency Wi-Fi antenna, offering stable and high-speed wireless connectivity for demanding applications in compact installations.

Print Friendly, PDF & Email

Ideal Applications

  • Smart utilities: Smart power, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Industrial factory automation, robotic machinery and other M2M systems
  • Digital Signage
  • Warehouses & Logistic systems
  • Transport (Busses, Utility & Public Safety)
  • Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
  • Agricultural machinery
  • Marine: small boats, yachts near to coastlines or inner waters

Technical Specifications for PUCK-12-V2

Additional information

Industry (Application)

, , , ,

Technology

Cellular Freq. Range

Frequency Band

, ,

Wi-Fi Standard

, , , , ,

Product Configuration

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for PUCK-12-V2

SKU Connector Type COAX Cable Type / Length Colour
A-PUCK-0012-V2-01 SMA (m) & RPSMA adaptors RTK-031 / 2m Black
A-PUCK-0012-V2-01-W SMA (m) & RPSMA adaptors RTK-031 / 2m White

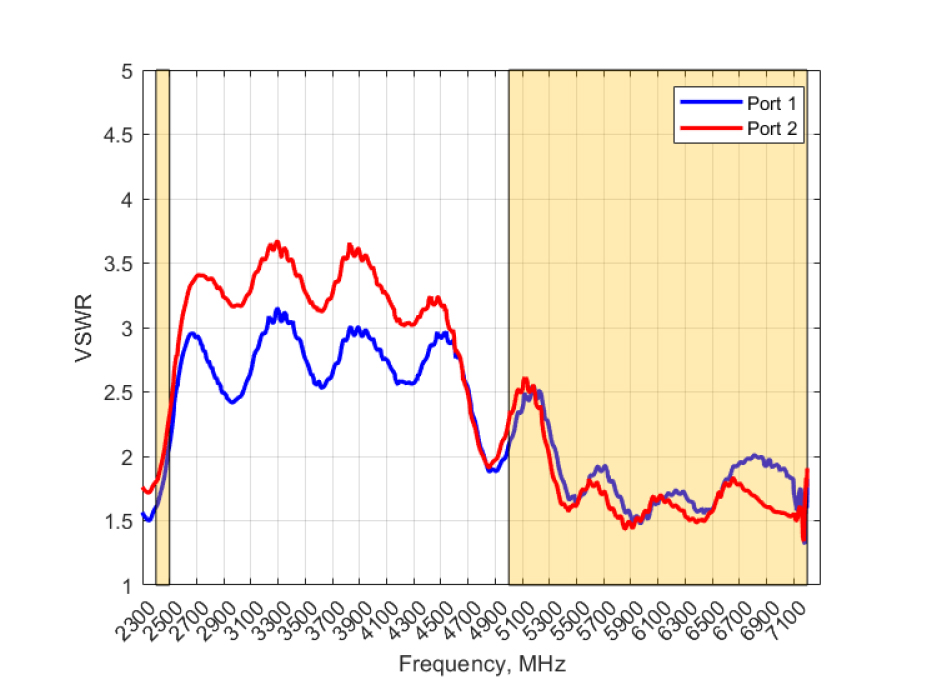

VSWR & Gain

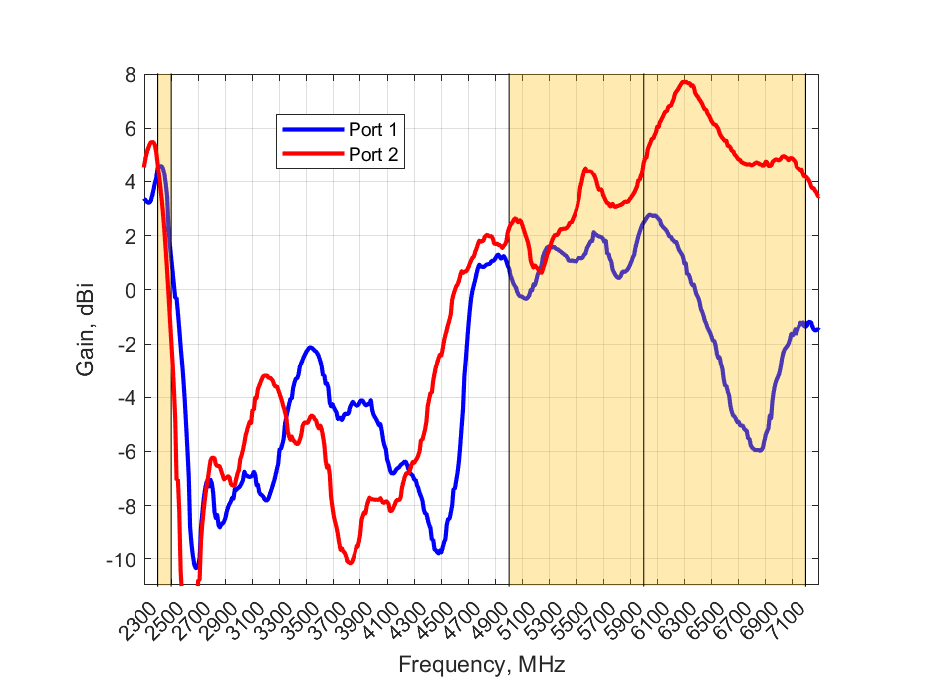

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Cisco
Peplink
Rajant
Robustel

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

PUCK LTE MIMO Antenna Feature Image PUCK LTE MIMO Antenna Back View PUCK LTE MIMO Antenna Front View PUCK LTE MIMO Antenna Side View PUCK LTE MIMO Antenna Feature Image White PUCK LTE MIMO Antenna Back View White PUCK LTE MIMO Antenna Front View White PUCK LTE MIMO Antenna Side View White PUCK Mounting Option: Panel PUCK Mounting Option: Wall and Pole PUCK Mounting Option: Spigot PUCK Mounting Option: Spigot Exploded Long PUCK Mounting Option: Spigot Exploded PUCK Mounting Option: Surface Adhesive PUCK Mounting Option: Magnetic Base Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-PUCK-0012-V2-01 EAN: 6009710928394 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.55kg
1.21lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 16.5kg
36.38lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0012-V2-01-W EAN: 6009710928417 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.55kg
1.21lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 16.5kg
36.38lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0012-V2-01A-PUCK-0012-V2-01-W
EAN 60097109283946009710928417
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.55kg
1.21lbs		0.55kg
1.21lbs
Packaged Dimensions 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch
Master Box QTY 2727
Master Box Weight 16.5kg
36.38lbs		16.5kg
36.38lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch
Country of Origin CNCN
