PUCK-2-V2

The PUCK Enclosure
2-in-1 Transportation & IoT/M2M Antenna
617 - 6000 MHz; 2X2 5G(MIMO), 6.5dBi
POYNTING antennas ensure reliable connectivity for small speedboats, providing seamless communication and internet access for marine and coastal adventures.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication and real-time data access for farmers using tablets in the field.
POYNTING antennas provide reliable connectivity for open-pit mining operations, ensuring seamless communication between scrapers, pickers, and ground-loosening vehicles for efficient extraction.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations.
POYNTING antennas ensure reliable connectivity for buses and tour buses, providing seamless internet access for passengers in transport and mobility applications.
617-6000 MHzview details below
6.5dBi±26km/16mi coverage*
Omni-Directional
2×2 MIMO
IP69K
-40°C to +80°C

Key Features

  • 2-in-1 5G high performance multi frequency antenna
  • Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi/LoRa/Bluetooth
  • 5G (2x2 MIMO)
  • Ultra-wideband coverage from 617 – 6000 MHz for cellular
  • Robust, vandal resistant and waterproof (IP 69K)
  • Ideal for transportation, marine and IoT/M2M use
  • Ultra-versatile mounting options for easy installation
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-PUCK-0002-V2-01
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Featured Image Colour Options in White and Black
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Side View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Side View
PUCK-2-V2 - Image 10
Compact High-Performance 2-in-1 5G & LTE Antenna

Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-2 is a 2-in-1 antenna system within a single enclosure, providing reliable and future-proof connectivity for 5G and LTE networks.

Wideband Cellular Coverage: Features 2x2 MIMO 5G/LTE antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.

The PUCK-2 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G and LTE connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.

Ideal Applications

  • Smart utilities: Smart Power, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Industrial factory automation, robotic machinery and other M2M systems
  • Digital Signage
  • Warehouses & Logistic systems
  • Transport (Busses, Utility & Public Safety)
  • Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
  • Agricultural machinery
  • Marine: small boats, yachts near to coastlines or inner waters

Technical Specifications for PUCK-2-V2

Additional information

Industry (Application)

, , ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , ,

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for PUCK-2-V2

SKU Connector Type COAX Cable Type / Length Colour
A-PUCK-0002-V2-01 SMA (m) RTK-031 / 2m Black
A-PUCK-0002-V2-01-W SMA (m) RTK-031 / 2m White

VSWR & Gain

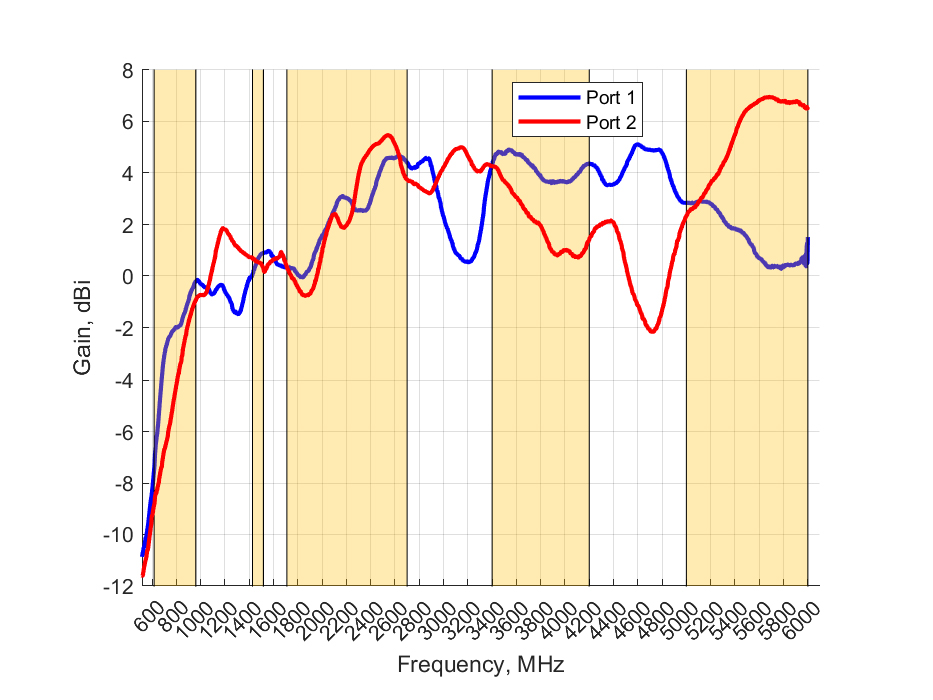

Gain (excluding Cable Loss)

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

PUCK-2-V2 Product Certificates

A-PUCK-0002-V2-01 Declaration of Conformity A-PUCK-0002-V2-01 White Declaration of Conformity A-PUCK-0002-V2-01 N-Type Declaration of Conformity A-PUCK-0002-V2-01 0.7m Declaration of Conformity A-PUCK-0002-V2-01 3m Declaration of Conformity

High Resolution Images

PUCK LTE MIMO Antenna Feature Image PUCK LTE MIMO Antenna Back View PUCK LTE MIMO Antenna Front View PUCK LTE MIMO Antenna Side View PUCK LTE MIMO Antenna Feature Image White PUCK LTE MIMO Antenna Back View White PUCK LTE MIMO Antenna Front View White PUCK LTE MIMO Antenna Side View White PUCK Mounting Option: Panel PUCK Mounting Option: Wall and Pole PUCK Mounting Option: Spigot PUCK Mounting Option: Spigot Exploded Long PUCK Mounting Option: Spigot Exploded PUCK Mounting Option: Surface Adhesive PUCK Mounting Option: Magnetic Base Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-PUCK-0002-V2-01 EAN: 6009710928233 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.55kg
1.21lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 16.7kg
36.82lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0002-V2-01-W EAN: 6009710928257 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.55kg
1.21lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 16.7kg
36.82lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0002-V2-01A-PUCK-0002-V2-01-W
EAN 60097109282336009710928257
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.55kg
1.21lbs		0.55kg
1.21lbs
Packaged Dimensions 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch
Master Box QTY 2727
Master Box Weight 16.7kg
36.82lbs		16.7kg
36.82lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch
Country of Origin CNCN
