XPOL-1-5G Plus (4×4 MIMO)

The Lynx Enclosure
X-Polarised, Omni-Directional, 4X4 MIMO 5G Antenna
410 - 6000 MHz, 7dBi
A-XPOL-0001-V3,X-Polarised, Omni-Directional, 2X2 / 4x4 MIMO 5G Antenna
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
A customer engages with a bank teller through a service counter, illustrating the importance of secure and uninterrupted connectivity in financial institutions. POYNTING’s antenna solutions support dependable communication for efficient banking operations and enhanced customer service. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
A woman is seen checking out in an artisan bakery, representing the need for consistent and high-speed connectivity in modern retail environments. POYNTING’s solutions help ensure reliable communication for seamless point-of-sale operations and customer experiences. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
Two engineers in high-visibility jackets are seen discussing network performance while working with advanced antenna technology. This scene highlights the practical application of POYNTING’s reliable 5G/LTE connectivity solutions in real-world environments where efficient communication is essential. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
A man pays for fuel using a credit card at a terminal, showcasing the need for reliable connectivity in remote and outdoor retail environments. POYNTING’s antenna solutions enable stable and secure communication for seamless payment processing at fuel stations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
410-6000 MHzview details below
7dBi±41km/25mi coverage*
Omni-Directional
4×4 MIMO
IP65Dust-tight & Water-resistant

Key Features

  • Ultra-Wideband cellular antennas from 410 to 6000 MHz
  • Cross-polarised antennas for improved performance
  • Omni-directional antenna with a low-profile design
  • High gain for the antenna size
  • 4x4 MIMO 4G/5G antenna for higher data throughputs
  • Versatile mounting options for ease of installation
  • Weather, dust, and vandal-resistant enclosure (IP 65)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-XPOL-0001-V3-41
A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Featured Image

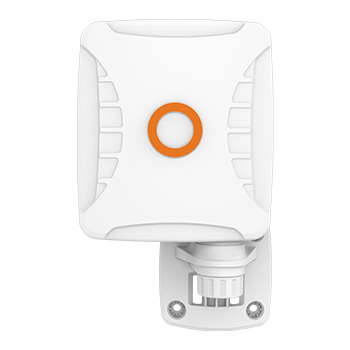

A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Front View

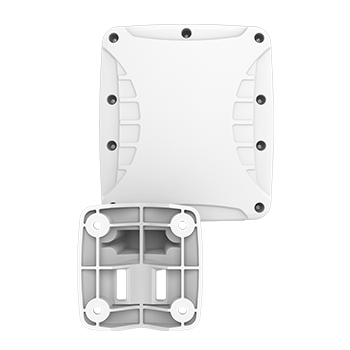

A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Back View

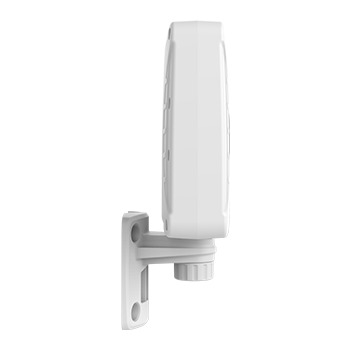

A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Side Left View

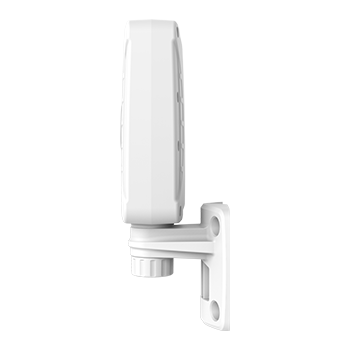

A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Side Right View

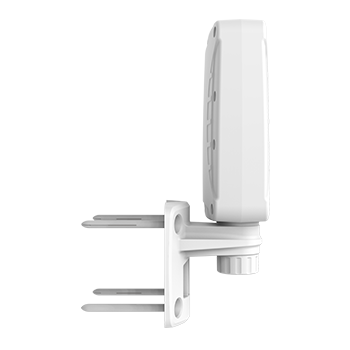

A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Mounting - Wall

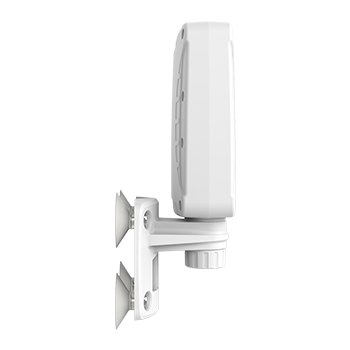

A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Mounting - Window

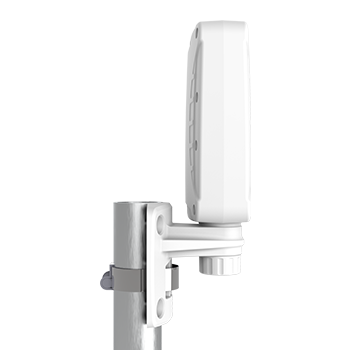

A-XPOL-0001-V3-41,410 - 6000 MHz, 7dBi, Mounting - Pole
Next-Generation 4x4 MIMO Ultra-Wideband Antenna for Superior 5G & LTE Performance

The XPOL-1-5G+ is POYNTING’s third-generation “V3” version of its popular Cross Polarised (XPOL) cellular band antenna, available in 2×2 and 4×4 MIMO configurations. This version has been fully redesigned with a modern enclosure and enhanced antenna design, now supporting an ultra-wide frequency range from 410 to 6000 MHz. It is compatible with a wide range of cellular networks and is future-ready for 5G applications up to 6 GHz.

Ultra-Wideband Frequency Range: Supports 410 – 6000 MHz for compatibility with legacy and future 5G technologies.
Powerful 4×4 MIMO Performance: Features four cross-polarised cellular antennas in one enclosure, enabling improved data throughput and link reliability.
High Peak Gain of 7 dBi: Offers more than double the gain of the previous V2 version, delivering extended coverage and stronger signals for Fixed Wireless Access (FWA).
Omni-Directional Radiation Patterns: Carefully engineered for consistent coverage across urban, suburban, and commercial environments.
Durable & Weather-Resistant Enclosure: IP65-rated design protects against dust, water, and vandalism, making it ideal for harsh outdoor use.

The XPOL-1-5G+ is a next-generation, high-performance antenna solution designed to maximise cellular connectivity across diverse deployment scenarios, ensuring excellent performance for current and future networks.

Print Friendly, PDF & Email

Ideal Applications

  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Homes and small offices in both urban and suburban environments
  • Small to medium-sized businesses across various commercial and industrial sectors such as retail outlets, petrol stations, guesthouses, banks, etc.
  • Temporary offices on construction sites
  • Serve as a reliable backup connectivity option for locations that use fibre or Starlink as their primary internet connection

Technical Specifications for XPOL-1-5G Plus (4×4 MIMO)

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Product Options/Variants for XPOL-1-5G Plus (4×4 MIMO)

SKU Connector Type COAX Cable Type / Length Colour
A-XPOL-0001-V3-41 SMA (m) HDF-195 / 5m White

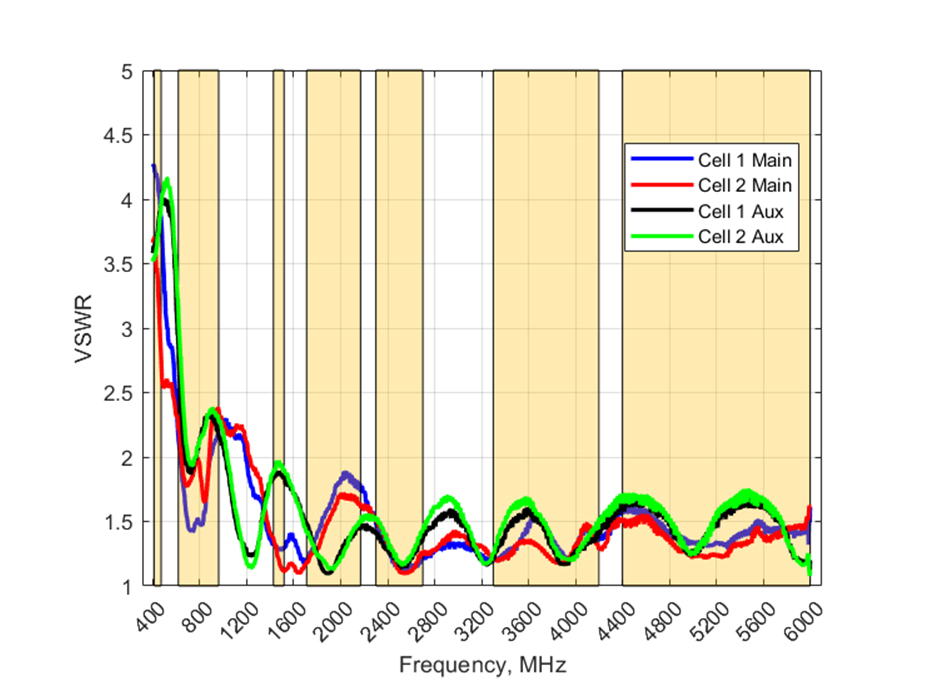

VSWR & Gain

Gain (excluding Cable Loss)

Router Compatibilities

Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

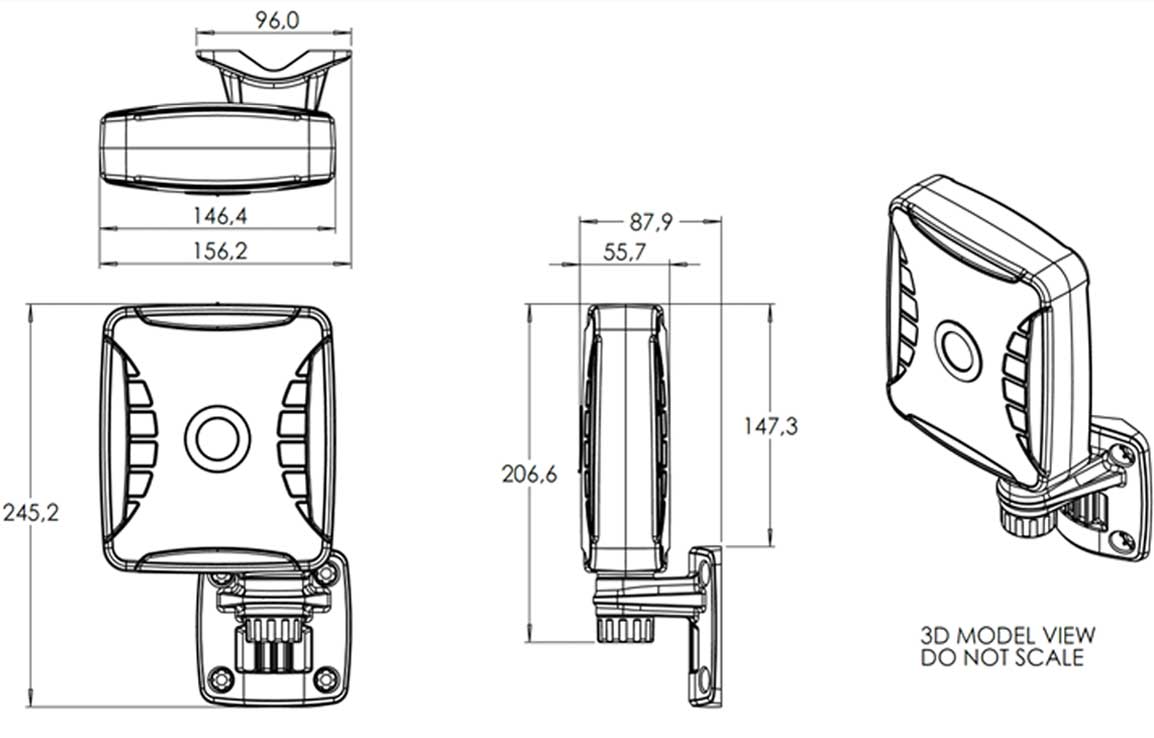

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-XPOL-0001-V3-41 Feature Image A-XPOL-0001-V3-41 Front View A-XPOL-0001-V3-41 Back View A-XPOL-0001-V3-41 Side Left View A-XPOL-0001-V3-41 Side Right View A-XPOL-0001-V3-41 Mounting Option: Wall A-XPOL-0001-V3-41 Mounting Option: Window A-XPOL-0001-V3-41 Mounting Option: Pole Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-XPOL-0001-V3-41 EAN: 6009710929230 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.45kg
3.20lbs		 Packaged Dimensions: 271 x 191 x 120 mm
10.67 x 7.52 x 4.72 inch		 Master Box QTY: 16 Master Box Weight: 24.3kg
53.57lbs		 Master Box Dimensions: 560 x 400 x 505mm
22.05 x 15.75 x 19.88 inch		 Country of Origin: CN
SKU A-XPOL-0001-V3-41
EAN 6009710929230
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.45kg
3.20lbs
Packaged Dimensions 271 x 191 x 120 mm
10.67 x 7.52 x 4.72 inch
Master Box QTY 16
Master Box Weight 24.3kg
53.57lbs
Master Box Dimensions 560 x 400 x 505mm
22.05 x 15.75 x 19.88 inch
Country of Origin CN
