EPNT-2

The ePoynt Enclosure
Cross-Polarised, High Gain, Uni-Directional 5G/LTE & Wi-Fi CPE
617 – 4200 MHz; 4x4 4G/5G (MIMO), 11 dBi
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small and large open office spaces in urban commercial environments, ensuring seamless communication and data access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for farmers in the field, enabling seamless communication and real-time data access on mobile devices for smart farming. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for suburban and rural estates, ensuring seamless internet access for homes located on the outskirts of the city. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural homes on the outskirts of urban areas, ensuring seamless internet access across large open spaces and farmland. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for smart farming, ensuring seamless communication and real-time data access for farmers using tablets in cow sheds. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-4200 MHzview details below
11dBi±43km/27mi coverage*
Directional
4×4 MIMO
IP65Dust-tight & Water-resistant
-40°C to +80°C

Key Features

  • An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
  • Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
  • New advanced metamaterial technology
  • Exceptional high gain performance over the main 4G/5G bands
  • 2x2 MIMO dual-band 2.4 GHz and 5 – 7.2 GHz Wi-Fi antennas
  • Cross-polarised antennas for improved performance
  • IP65 weather/dust and vandal-resistant enclosure

Please select your Router Brand
By selecting your router brand, we can pair the suitable ePoyntâ„¢ solution. If your router brand is not listed, please select "Not Listed" from the dropdown menu.
Find the Compatible ePoyntâ„¢

Above are our recommendations, but you can browse our product range on this page for more options, or you can call a sales representative in your region on our contact us page.
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-EPNT-0002-V3-01

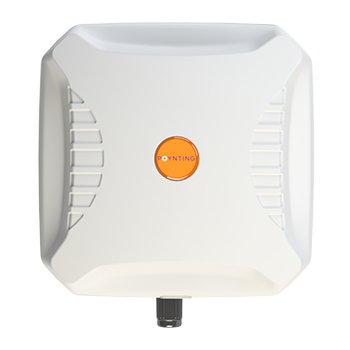

A-EPNT-0002-V3-01,Cross-Polarised, Omni-Directional 5G/LTE & Wi-Fi Antenna,Omni-Directional CPE Front View

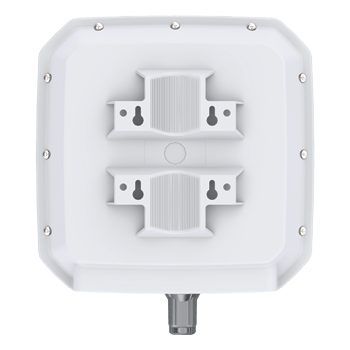

A-EPNT-0002-V3-01,Cross-Polarised, High Gain, Uni-Directional 5G/LTE Antenna,Directional CPE Back View
A-EPNT-0002-V3-01,Cross-Polarised, Omni-Directional 5G/LTE & Wi-Fi Antenna,Omni-Directional CPE Front View

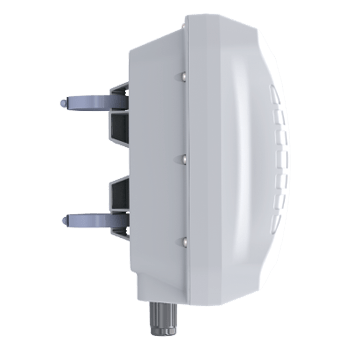

A-EPNT-0002-V3-01,Cross-Polarised, High Gain, Uni-Directional 5G/LTE Antenna,Directional CPE Side View

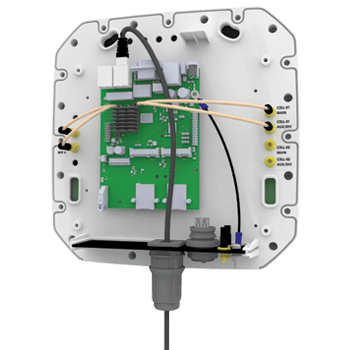

A-EPNT-0002-V3-01,Cross-Polarised, High Gain, Uni-Directional 5G/LTE Antenna,Directional CPE CPE Back Open
High-Gain Antenna Enclosure for 4G & 5G Routers

Poynting Antennas introduces the ePoynt series, an innovative antenna enclosure range designed to fit a variety of router modules, transforming the antenna enclosure into high-performance Customer Premises Equipment (CPE). The EPNT-2 enclosure supports routers up to 185 x 145 x 45 mm³, delivering enhanced signal stability and throughput.

Advanced AMC Technology: Incorporates Artificial Magnetic Conductor (AMC) technology from the XPOL-2-5G antenna for superior performance.
Wideband Uni-Directional & Omni-Directional Antennas: Covers 617–960 MHz and 1710–4200 MHz, ideal for 4G & 5G implementations.
Optimised for 4x4 MIMO: Features four cross-polarised cellular antennas – two uni-directional antennas with 11 dBi peak gain and two omni-directional antennas with 5 dBi peak gain.
Integrated Dual-Band Wi-Fi: Includes two omni-directional Wi-Fi antennas covering 2.4 GHz & 5–6 GHz for 2x2 MIMO performance.
Superior Connectivity & Data Throughput: The combination of a high-gain XPOL-2-5G antenna with a world-class router ensures outstanding wireless performance.
Rugged & Weatherproof Design: IP65-rated enclosure ensures durability in harsh outdoor conditions.

The EPNT-2 is the perfect solution for LTE & 5G deployments, providing a powerful, all-in-one antenna and enclosure for superior connectivity and performance.

Ideal Applications

  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Consumer 5G/4G internet connectivity
  • Industrial and commercial 5G/4G deployment
  • Urban and rural household reception enhancement
  • Agricultural and farming 5G/4G data distribution

Technical Specifications for EPNT-2

Additional information

Industry (Application)

, ,

Technology

,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

,

Polarisation

Environmental

Wi-Fi Ports

Router Housing Dimensions

,

Product Options/Variants for EPNT-2

SKU Connector Type COAX Cable Type / Length Colour
A-EPNT-0002-V3-01 SMA (M) RG 178 / 0.25m White

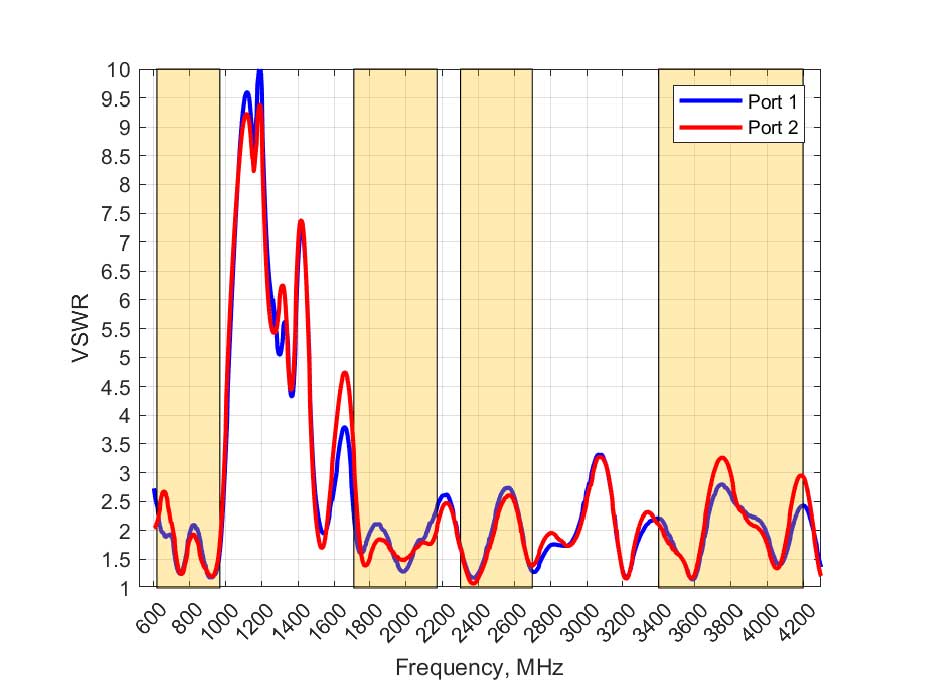

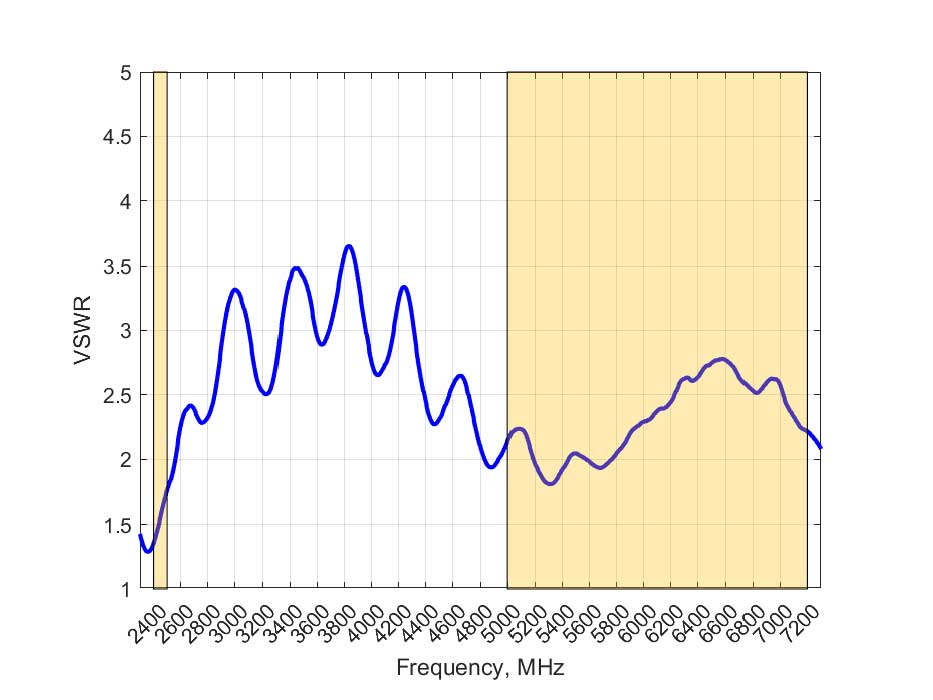

VSWR & Gain

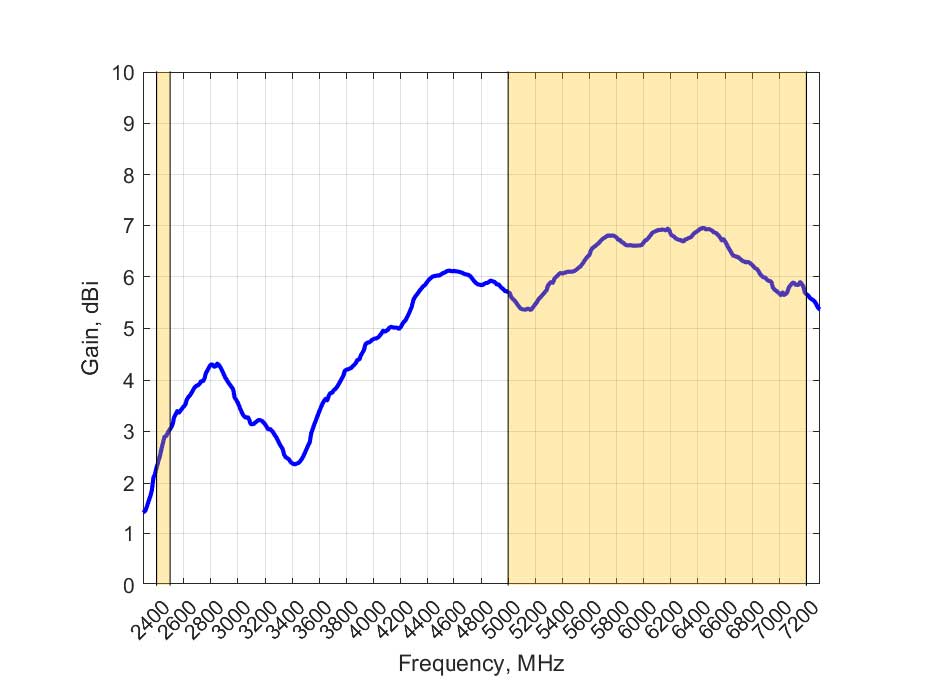

Gain (excluding Cable Loss)

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Cradlepoint
Digi
Teltonika

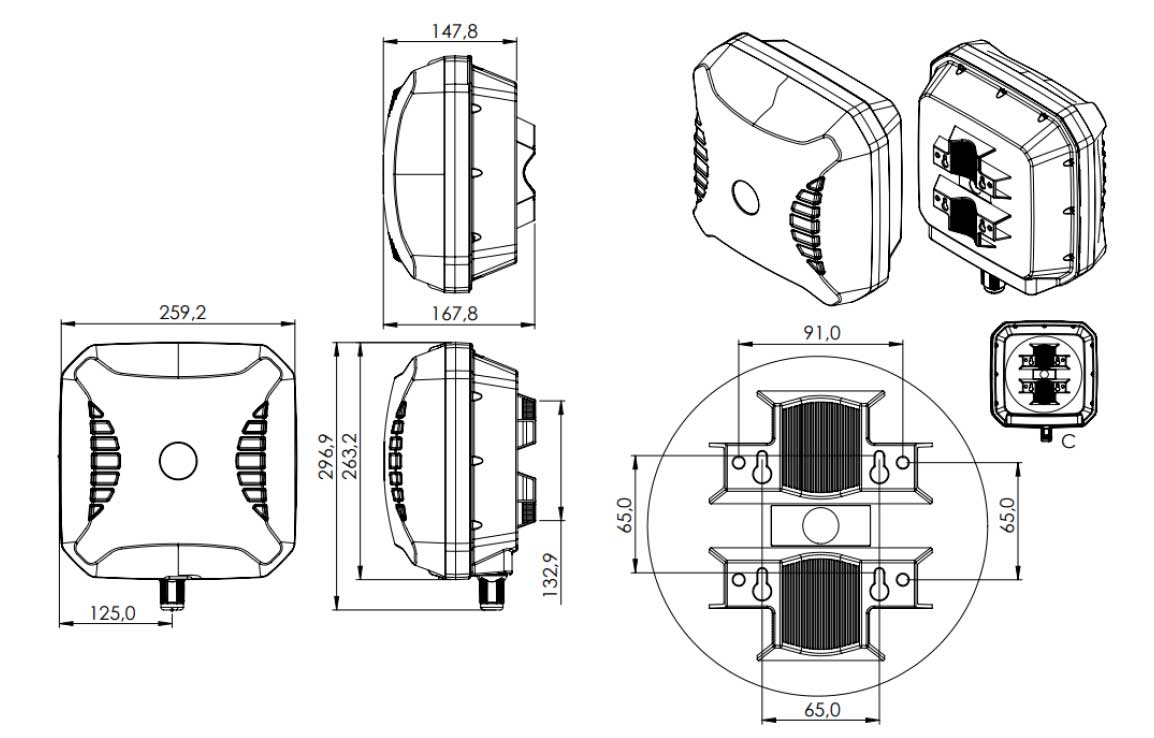

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-EPNT-0002-V3-01 Feature Image A-EPNT-0002-V3-01 Back View A-EPNT-0002-V3-01 Front View A-EPNT-0002-V3-01 Side View A-EPNT-0002-V3-01 Pole Mount View A-EPNT-0002-V3-01 Open Back View A-EPNT-0002-V3-01 Back Exploded View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-EPNT-0002-V3-01 EAN: 6009710927915 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 2.17kg
4.79lbs		 Packaged Dimensions: 410 x 280 x 177 mm
16.14 x 11.02 x 6.97 inch		 Master Box QTY: 6 Master Box Weight: 13.02kg
28.70lbs		 Master Box Dimensions: 1126 x 430 x 330 mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU A-EPNT-0002-V3-01
EAN 6009710927915
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 2.17kg
4.79lbs
Packaged Dimensions 410 x 280 x 177 mm
16.14 x 11.02 x 6.97 inch
Master Box QTY 6
Master Box Weight 13.02kg
28.70lbs
Master Box Dimensions 1126 x 430 x 330 mm
44.29 x 16.93 x 13 inch
Country of Origin CN
