HELI-31

The MiniHELI Enclosure
A-HELI-0031-V2-01 Circular Polarised, Directional Mine/Tunnel Antenna; LTE/5G/Wi-Fi; 1700 - 7200 MHz, 9 dBi Mine Tunnel
A-HELI-0031-V2-01 Circular Polarised, Directional Mine/Tunnel Antenna; LTE/5G/Wi-Fi; 1700 - 7200 MHz, 9 dBi Mine Tunnel
Technical Specification Download
1710-2170 MHz; 2300-2700 MHz; 3200-7200 MHz9.5dBiUni-Directional4G LTE5G2.4-2.5 GHz 5.0-6.0 GHzIP 65-40°C to +70°C

Circular Polarised, Directional Mine/Tunnel Antenna; LTE/5G/Wi-Fi

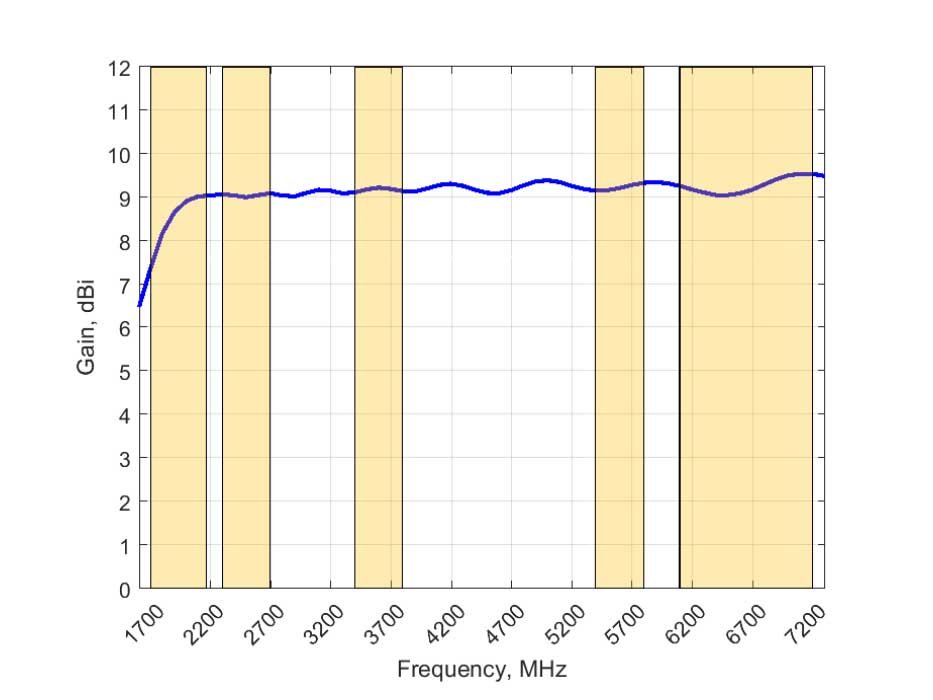

1700 - 7200 MHz, 9dBi

  • Ultra-wideband circular polarised
  • Wi-Fi 6 (802.11ax) & LTE/4G/5G
  • Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel.
  • Left-Hand Circular (LHC) & Right-Hand Circular (RHC) polarised.
  • Uni-directional – radiates in one direction in a tunnel.
  • Ruggedized, water and dust ingress protected (IP 65)
  • Ideal for Mining & Tunnel M2M and IoT deployments
Add to Compare
TS Document

Availability Notification

Availability Notification

Close Trigger
Product Overview

The HELI-31 forms part of a series of MiniHELI antennas. These antennas are only mini in size relative to their bigger brothers which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes.
The HELI-31 is an ultra-wideband antenna, radiating in one direction (i.e. Uni-directional), which make them ideal for the coverage from 1710-7200 MHz. These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mine automation. This wide-band helical antenna propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many of the signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.

Print Friendly, PDF & Email
Product Options
SKU A-HELI-0031-V2-01-L A-HELI-0031-V2-01-R
COAX Cable Type RG-58 RG-58
COAX Cable Length 0.35m 0.35m
Color Grey Grey
Product Video's
Why is it important to use Circular Polarised Antennas in Mine and Tunnel Communications? How to reduce cost for underground antenna installations? How does a tunnel's surface influence underground communications? How do I determine the best placement for an antenna in a tunnel? Webinar 6: Digging into circular polarised underground communication Poynting MiniHELI Antennas - for mining and underground communications How does a tunnel's surface influence underground communications?
Downloadable Files
A-HELI-0031-V2-01 Mine Tunnel Feature Image A-HELI-0031-V2-01 Mine Tunnel Back View A-HELI-0031-V2-01 Mine Tunnel Front View A-HELI-0031-V2-01 Mine Tunnel Side View View Our Downloads Page for High-Res Images and more
FAQ
FAQ - Why Are Circular Polarised MinePoynt HELI Antennas Better For Tunnels? Case Study - Tunnel inspection & measurement using HELI antennas Case Study - Poynting’s MinePoynt Antennas Makes Wireless Work Underground Article - Underground Propagation Range Tests With Poynting’s MinePoynt HELI And MiniHELI Antennas Article - Making Wireless Happen… Underground Article - LTE HELI Antenna Customised in Orange
Shipping Details
SKU A-HELI-0031-V2-01-L A-HELI-0031-V2-01-R
EAN 6009710920411 6009710921623
HS Code #85291069 #85291069
Packaged Weight 1.6kg
3.55lbs		 1.6kg
3.55lbs
Packaged Dimensions 450 x 165 x 140 mm
17.72 x 6.5 x 5.51 inch		 450 x 165 x 140 mm
17.72 x 6.5 x 5.51 inch
Master Box QTY 20 20
Master Box Weight 32kg
70.55lbs		 32kg
70.55lbs
Master Box Dimensions 1250 x 730 x 360 mm
49.21 x 28.74 x 14.17 inch
Country of Origin RSA RSA
