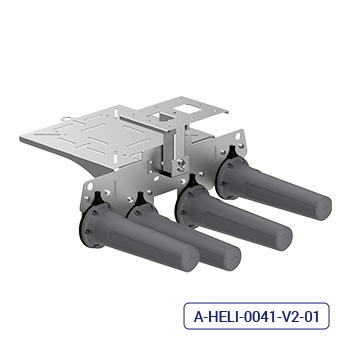

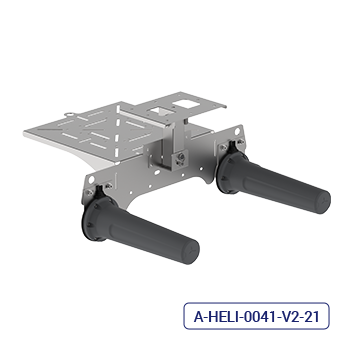

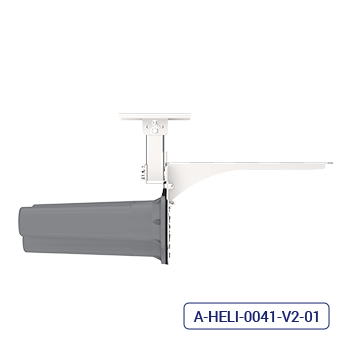

HELI-41

The MiniHELI Enclosure

2400-2500 MHz; 5000-6000 MHz2.4 GHz 12.5dBic; 5 GHz 13dBicUni-Directional2.4-2.5 GHz 5.0-6.0 GHz4×4 MIMO Possible with RHC & LHC combined IP65-40°C to +70°CFire Resistant(TRG) MDG 3608:2022

Circular Polarised, Uni-Directional Mine/Tunnel Wi-Fi Antenna

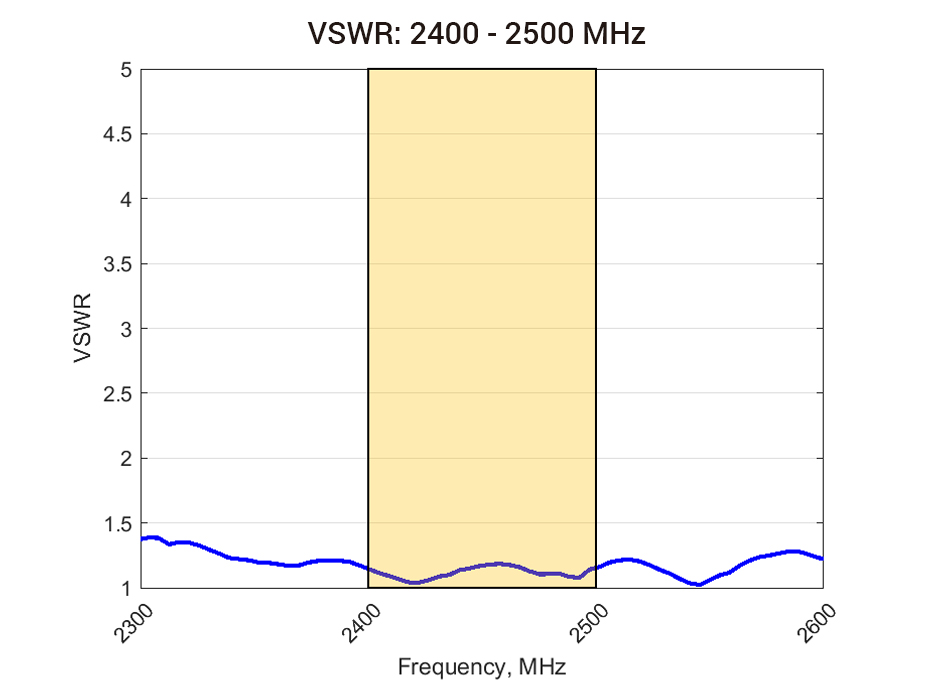

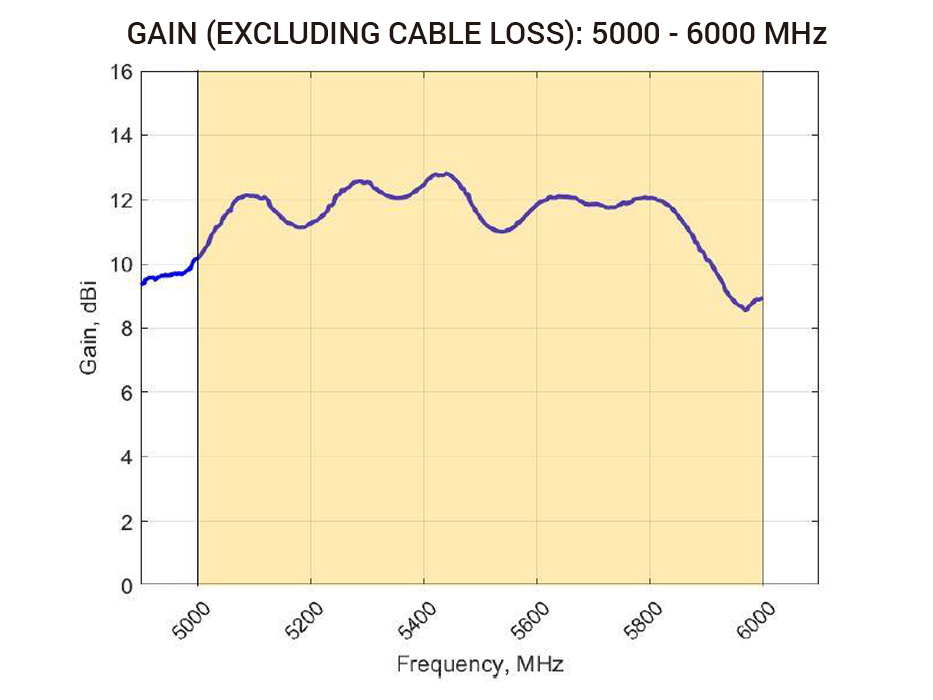

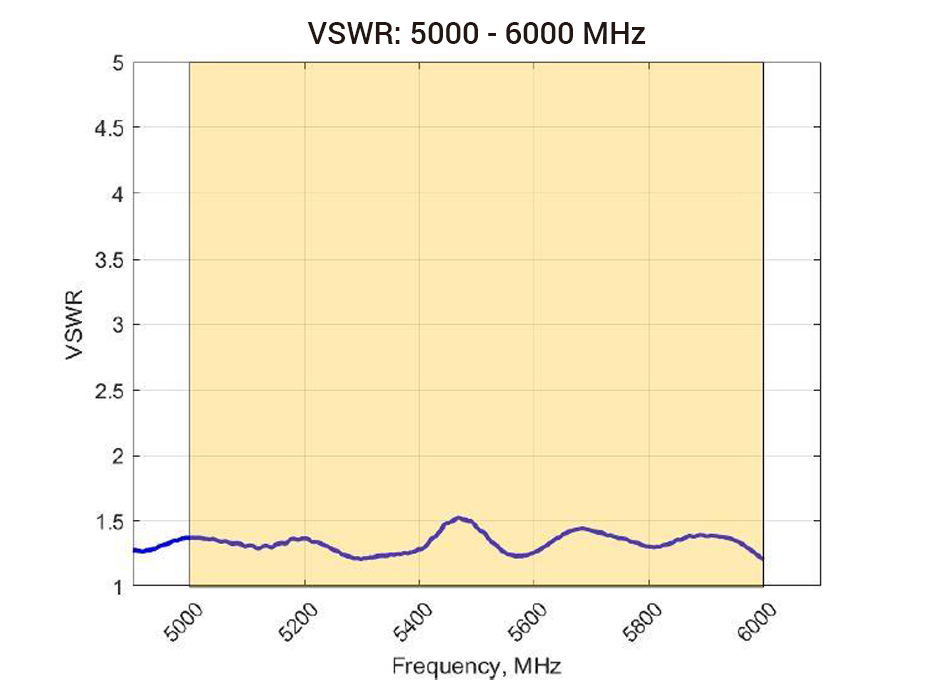

2400 - 2500 MHz, 12.5dBic; 5000 - 6000 MHz, 13dBic


  • Circular Polarised HELI antenna provides enhanced signal propagation and connection stability within a tunnel
  • Left Hand Circular (LHC) & Right-Hand Circular (RHC) polarised
  • Uni-directional – radiates in one direction in a tunnel
  • Ruggedized, water and dust ingress protected (IP 65)
  • Ideal for Mining & Tunnel M2M and IoT deployments
The HELI-41 forms part of the Mini-HELI antenna series. These antennas are only mini in size relative to their bigger brothers, the HELI-3, HELI-4 & HELI-8, but offer medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes. The HELI-41 is a dual-band 2.4 GHz and 5 GHz Wi-Fi antenna, radiating in a single direction (i.e., uni-directional). This makes them ideal for the coverage of both Wi-Fi bands in mining and other type of tunnels. These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mining automation. These antennas are available in both Left-hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a 4x4 MIMO or even 8x8 MIMO deployment when using the BRKT-46, resulting in optimum performance. The antenna decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel. The dual-band Wi-Fi connection propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel.

Additional information

Industry (Application)

Technology

Frequency Band

,

Cellular Freq. Range

Gain

Directionality

Mounting Type

Wi-Fi Standard

, , ,

Connectors

MIMO

Polarisation

Environmental

Enclosure Name

Enclosure Size

Price Pricing Scale

Wi-Fi Ports

SKU COAX Cable Type COAX Cable Length Colour Other
A-HELI-0041-V2-01 RG-58 0.35m Grey
A-HELI-0042-V1-02 RG-58 0.35m Grey

SKU A-HELI-0041-V2-01 EAN: 6009710923580 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: TBC Packaged Dimensions: TBC Master Box QTY: TBC Master Box Weight: TBC Master Box Dimensions: TBC Country of Origin: RSA
SKU A-HELI-0042-V1-02 EAN: 6009710923603 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight: TBC Packaged Dimensions: TBC Master Box QTY: TBC Master Box Weight: TBC Master Box Dimensions: TBC Country of Origin: RSA
SKU A-HELI-0041-V2-01A-HELI-0042-V1-02
EAN 60097109235806009710923603
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight TBCTBC
Packaged Dimensions TBCTBC
Master Box QTY TBCTBC
Master Box Weight TBCTBC
Master Box Dimensions TBCTBC
Country of Origin RSARSA
