MIMO-3-17

The Badger Enclosure
7-in-1 Transportation & Automotive Antenna
410 - 3800 MHz; 4X4 LTE (MIMO), 6.2dBi; 2X2 Wi-Fi (MIMO), 7dBi; GPS/GLONASS, 21dBi
POYNTING antennas provide reliable connectivity for rally cars, ensuring seamless communication and data transmission in transport and mobility applications.
POYNTING antennas provide reliable connectivity for RVs and motorhomes, ensuring seamless internet access for families traveling and camping in transport and mobility applications.
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management.
POYNTING antennas ensure reliable connectivity for small speedboats, providing seamless communication and internet access for marine and coastal adventures.
410-3800 MHzview details below
LTE: 6.2dBi; Wi-Fi: 7dBi; GPS: 21dBi±38km/24mi coverage*
Omni-Directional
4×4 MIMO
2.4-2.5 GHz 5.0-6.0 GHz
IP69K
E-Mark

Key Features

  • 7-in-1 High performance multi frequency 2G/3G/4G/LTE/5G antenna
  • 4X4 MIMO LTE, 2X2 MIMO Wi-Fi & GPS / GLONASS
  • Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 69K)
  • Ideal for transportation and marine use
  • Multi mounting options for easy installation
Supported Connectivity Technologies




Datasheet Options
POYNTING Antenna Solution Finder
A-MIMO-0003-V2-17

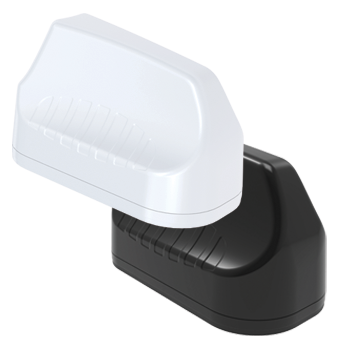

A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Featured Image Colour Options in Black and White
A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Black Featured Image

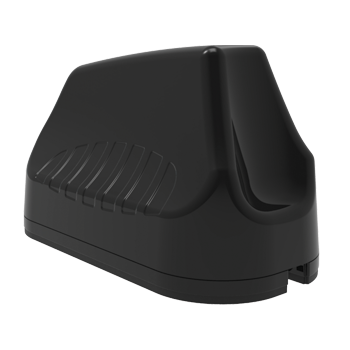

A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Black Back View

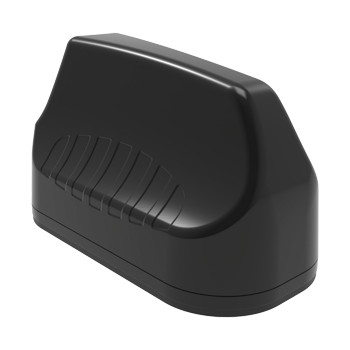

A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Black Front View
A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Black Side View

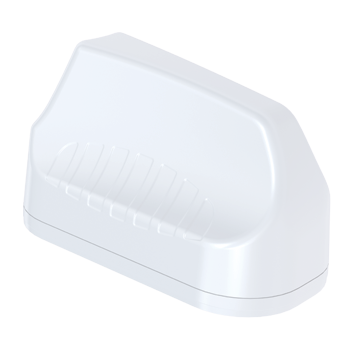

A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna White Featured Image
A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna White Back View
A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna White Front View

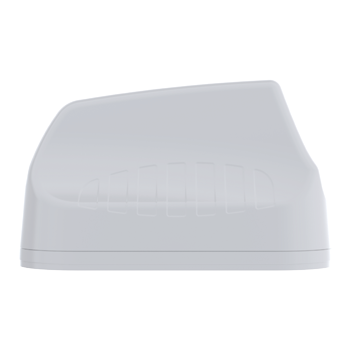

A-MIMO-0003-V2-17,7-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna White Side View
High-Performance 7-in-1 Multi-Frequency Antenna for 5G, LTE, Wi-Fi & GPS

The MIMO-3-17 is a high-performance 7-in-1 multi-frequency antenna housed in a single enclosure, providing four cellular MIMO antennas, two dual-band Wi-Fi antennas, and a GPS/GLONASS antenna. Designed for seamless 2G, 3G, 4G, and emerging 5G connectivity, it supports a wide frequency range from 617 MHz to 2700 MHz, as well as the new 450 MHz and 3.5 GHz CBRS bands. This ultra-wideband performance ensures compatibility with multiple network operators and future cellular technologies up to 3.8 GHz.

Ultra-Wideband Cellular Coverage: Supports frequencies from 617 MHz to 3.8 GHz, covering LTE and 5G applications.
Advanced 4x4 Cellular MIMO Technology: Provides enhanced signal strength, pattern diversity, and omnidirectional coverage.
Dual-Band 2x2 MIMO Wi-Fi Antennas: Two independent Wi-Fi antennas support concurrent 2.4 GHz and 5 GHz operation for improved wireless performance.
Integrated GPS/GLONASS Antenna: High-performance active GPS system for accurate positioning, operational down to -40°C.
Optimised for Transportation & Marine Use: Engineered to meet the rigorous demands of commercial vehicles, marine, and industrial applications.
Futureproof Connectivity: Ensures long-term compatibility with evolving cellular, Wi-Fi, and IoT applications.
Superior Radiation Performance: Designed for an optimal balance between omnidirectionality, diversity, and signal propagation.

The MIMO-3-17 is the ideal solution for transportation, marine, M2M, and IoT applications, delivering exceptional performance, durability, and future-ready connectivity across multiple frequency bands.

Ideal Applications

  • Transport broadband and Wi-Fi distribution, automation and telemetry for buses, utility, trucks and public safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & agricultural automation such as M2M & IoT
  • Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)
  • Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)

Technical Specifications for MIMO-3-17

Additional information

Industry (Application)

,

Technology

, , ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

,

Polarisation

Environmental

Cellular Ports

Wi-Fi Ports

GNSS/GPS Ports

Accessories

Product Options/Variants for MIMO-3-17

SKU Connector Type COAX Cable Type / Length Colour
A-MIMO-0003-V2-17 SMA (m) & RPSMA adaptors HDF-195 & RTK-031 / 2m White
A-MIMO-0003-V2-17-B SMA (m) & RPSMA adaptors HDF-195 & RTK-031 / Black

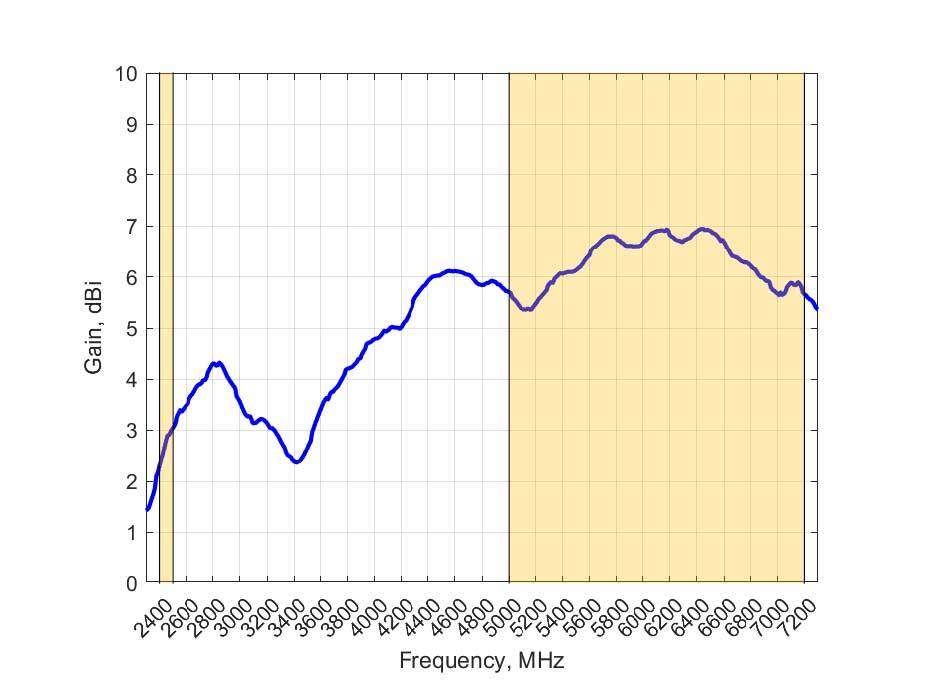

VSWR & Gain

Gain (excluding Cable Loss)

Gain (excluding Cable Loss)

Technical Drawing

FAQ's & Articles

Downloadable Files

MIMO-3-17 Product Certificates

POYNTING-MIMO-3-E-Mark_E1_10R06-Certificate

High Resolution Images

A-MIMO-0003-V2-17 LTE MIMO Antenna Feature Image A-MIMO-0003-V2-17 LTE MIMO Antenna Back View A-MIMO-0003-V2-17 LTE MIMO Antenna Front View A-MIMO-0003-V2-17 LTE MIMO Antenna Side View View Mounting Options Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-MIMO-0003-V2-17 EAN: 6009710920848 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.61kg
3.55lbs		 Packaged Dimensions: 265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch		 Master Box QTY: 10 Master Box Weight: 18.95kg
41.78lbs		 Master Box Dimensions: 1125 x 430 x 330mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU A-MIMO-0003-V2-17-B EAN: 6009710922125 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.61kg
3.55lbs		 Packaged Dimensions: 265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch		 Master Box QTY: 10 Master Box Weight: 18.95kg
41.78lbs		 Master Box Dimensions: 1125 x 430 x 330mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU A-MIMO-0003-V2-17A-MIMO-0003-V2-17-B
EAN 60097109208486009710922125
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.61kg
3.55lbs		1.61kg
3.55lbs
Packaged Dimensions 265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch		265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch
Master Box QTY 1010
Master Box Weight 18.95kg
41.78lbs		18.95kg
41.78lbs
Master Box Dimensions 1125 x 430 x 330mm
44.29 x 16.93 x 13 inch		1125 x 430 x 330mm
44.29 x 16.93 x 13 inch
Country of Origin CNCN
