OMNI-707

The Rhyno XL Enclosure
Omni-Directional, Dual-Port Wi-Fi Antenna
2400 - 2500 MHz, 5000 - 6000 MHz; 5.5dBi
POYNTING antennas enable reliable IoT connectivity for open-pit mining, ensuring seamless communication and automation for enhanced operational efficiency. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for underground mining, enabling seamless communication and data access for miners using digital devices and autonomous trucks. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for IoT-enabled open-pit mining, supporting seamless communication for unmanned trucks and autonomous vehicles in rugged environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for rural farming and wind farms, ensuring seamless communication, automation, and efficient energy and agricultural management. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2400-6000 MHzview details below
5.5dBi±6km/4mi coverage*
Omni-Directional
2.4-2.5GHz 5.0-6.0GHz
IP69K
-40°C to +80°C
Fire Resistant

Key Features

  • Medium gain, omni-directional Wi-Fi antenna
  • Suitable for 2.4 GHz and 5 GHz Wi-Fi deployment
  • Compliant with IEEE 802.11b/g/n and 802.11ac wireless standard
  • Dual-port configuration to connect multiple Wi-Fi ports
  • Ideal for IoT and M2M applications
  • Highly rugged and low-profile design
  • High pressure water and dust ingress protected enclosure (IP69K)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0707-V1-01
A-OMNI-0707-V2-01,Omni-Directional, Dual-Port Wi-Fi Antenna,Industrial Wi-Fi Featured Image
A-OMNI-0707-V2-01,Omni-Directional, Dual-Port Wi-Fi Antenna,Industrial Wi-Fi Back View
A-OMNI-0707-V2-01,Omni-Directional, Dual-Port Wi-Fi Antenna,Industrial Wi-Fi Front View
A-OMNI-0707-V2-01,Omni-Directional, Dual-Port Wi-Fi Antenna,Industrial Wi-Fi Side View
Rugged Omni-Directional Dual-Port Wi-Fi Antenna

The OMNI-707 is a high-performance omni-directional Wi-Fi antenna developed by POYNTING Antennas as part of the new “Rhyno” antenna range. Designed for harsh environments, this antenna ensures reliable and stable Wi-Fi connectivity across both 2.4 GHz and 5 – 6 GHz bands. Its rugged enclosure and superior pattern control make it an excellent choice for demanding applications.

Dual-Band Wi-Fi Connectivity: Supports 2.4 GHz and 5 – 6 GHz Wi-Fi bands for improved performance and flexibility.
High-Gain Performance: Delivers 5.5 dBi peak gain, ensuring strong and reliable wireless connections.
Omni-Directional Design: Provides 360° signal coverage for optimal distribution and minimal dead zones.
Superior Pattern Control: Ensures balanced performance across all frequency bands for enhanced stability.
Rugged & Weatherproof Design: Features an IP69K and IK10-rated enclosure for extreme durability in harsh environmental conditions.
Versatile Deployment: Ideal for resolving Wi-Fi channel saturation, supporting dual-band Wi-Fi technology, and operating in RF-noisy environments.
Flexible Connectivity Options: Equipped with two 0.3 m pigtail N-Type female connectors, allowing for custom cable configurations.

The OMNI-707 is a robust and future-ready Wi-Fi antenna, designed to deliver exceptional wireless performance in industrial, commercial, and outdoor applications.

Print Friendly, PDF & Email

Ideal Applications

  • Smart Utilities: Smart Power Metering, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Smart Environmental & Water Systems
  • Industrial factory automation and M2M systems

Technical Specifications for OMNI-707

Additional information

Industry (Application)

,

Technology

Cellular Freq. Range

Frequency Band

,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Product Options/Variants for OMNI-707

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0707-V1-01 N-Type (f) RG-58 / 0.3m Grey

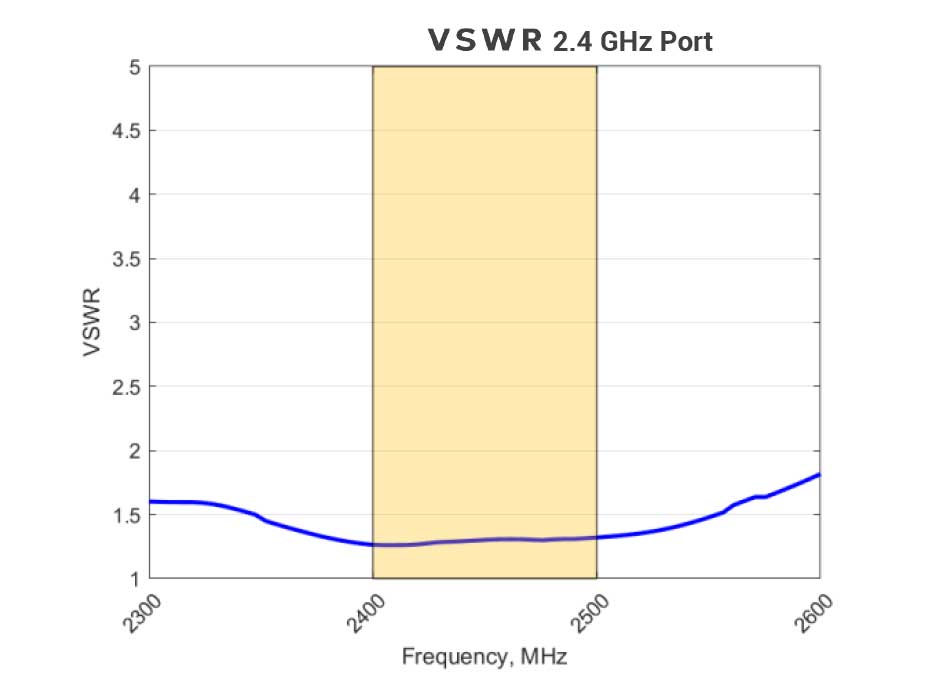

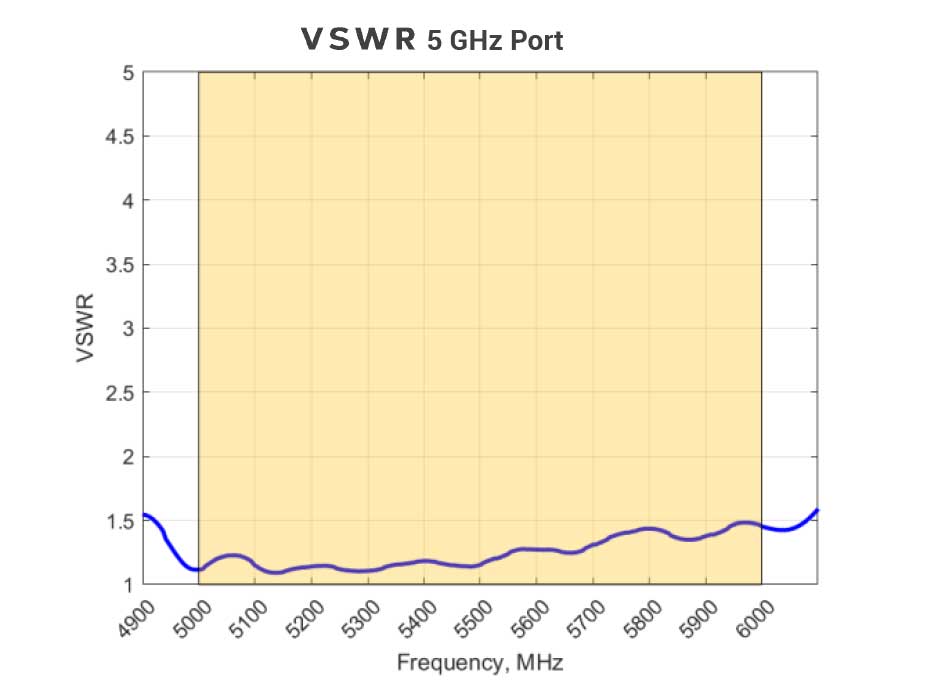

VSWR & Gain

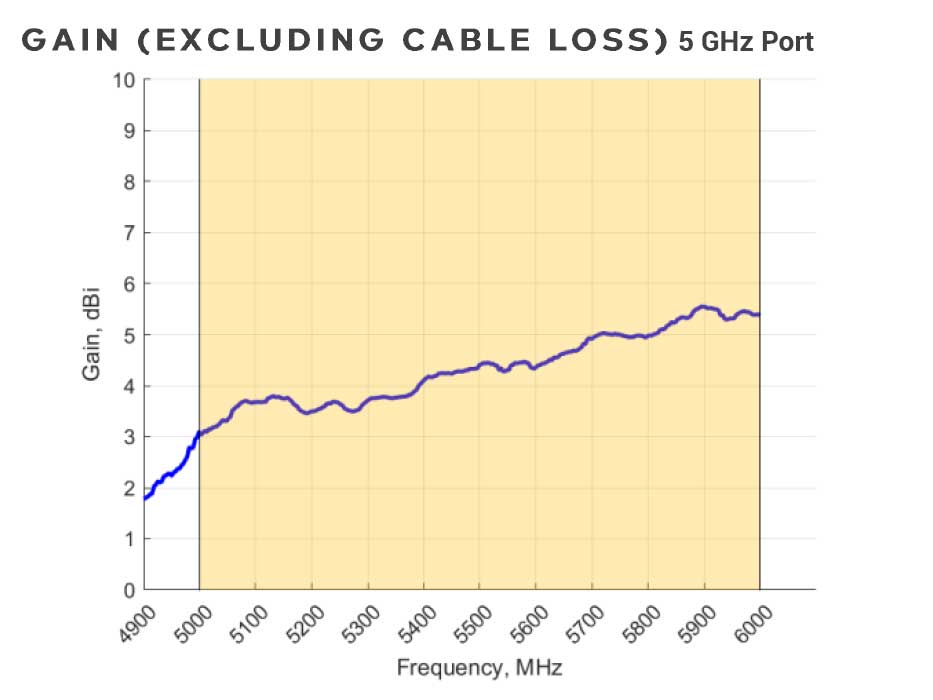

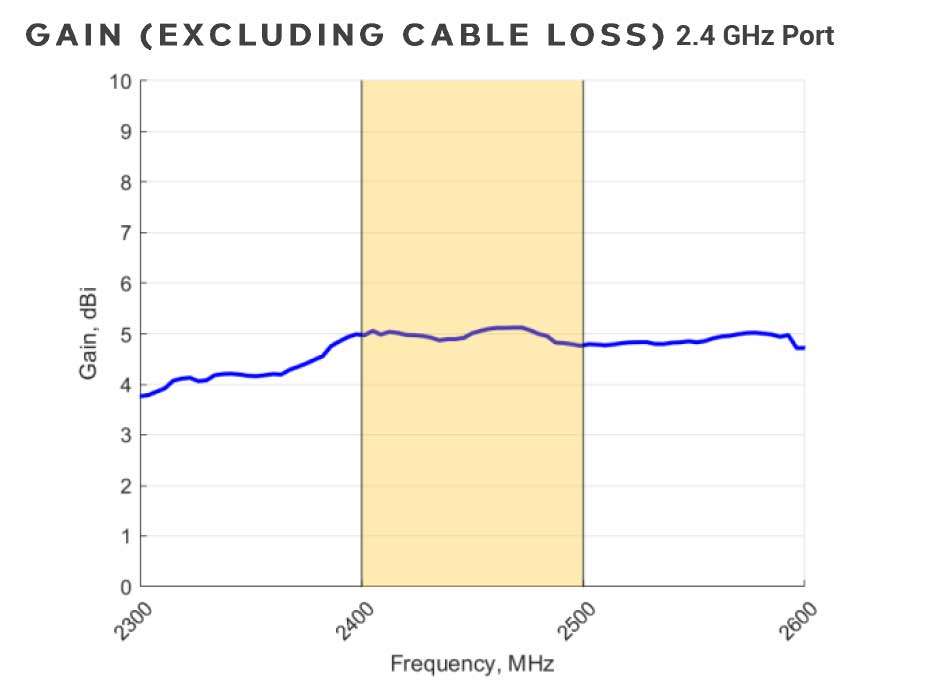

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Advantech
Cisco
EuroTech
Huawei
InHand Networks
Peplink
Rajant
Robustel

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

OMNI-707 Product Certificates

A-OMNI-0707-V1-01 Declaration of Conformity

High Resolution Images

A-OMNI-0707-V1-01 Feature Image A-OMNI-0707-V1-01 Back View A-OMNI-0707-V1-01 Front View A-OMNI-0707-V1-01 Side View A-OMNI-0707-V1-01 Feature Image - Pole Mount A-OMNI-0707-V1-01 Back View - Pole Mount A-OMNI-0707-V1-01 Front View - Pole Mount A-OMNI-0707-V1-01 Side View - Pole Mount Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0707-V1-01 EAN: 6009710923344 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.63kg
1.39lbs		 Packaged Dimensions: 386 x 80 x 96 mm
15.20 x 3.15 x 3.78 inch		 Master Box QTY: 35 Master Box Weight: 22.6kg
49.82lbs		 Master Box Dimensions: 400 x 500 x 610 mm
15.75 x 19.69 x 24.02 inch		 Country of Origin: CN
SKU A-OMNI-0707-V1-01
EAN 6009710923344
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.63kg
1.39lbs
Packaged Dimensions 386 x 80 x 96 mm
15.20 x 3.15 x 3.78 inch
Master Box QTY 35
Master Box Weight 22.6kg
49.82lbs
Master Box Dimensions 400 x 500 x 610 mm
15.75 x 19.69 x 24.02 inch
Country of Origin CN
