PUCK-1-V2

The PUCK Enclosure
SISO Transportation & IoT/M2M Antenna
617 - 6000 MHz; 5G SISO, 5.5dBi
POYNTING antennas provide reliable connectivity for small yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for buses and tour buses, providing seamless internet access for passengers in transport and mobility applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for IoT-enabled warehouses, supporting seamless communication for autonomous bots and smart logistics operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small and large open office spaces in urban commercial environments, ensuring seamless communication and data access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for open-pit mining operations, ensuring seamless communication between scrapers, pickers, and ground-loosening vehicles for efficient extraction. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-6000 MHzview details below
5.5dBi±23km/14mi coverage*
Omni-Directional
IP69K
-40°C to +80°C

Key Features

  • 5G high performance multi frequency antenna
  • Antenna supports Private 5G/5G/4G/3G/2G/Wi-Fi/LoRa/Bluetooth
  • Ultra-wideband coverage from 617 – 6000 MHz for cellular
  • Robust, vandal resistant and waterproof (IP 69K)
  • Ideal for transportation, marine and IoT/M2M use
  • Ultra-versatile mounting options for easy installation
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-PUCK-0001-V2-01
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Featured Image Colour Options in White and Black
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna White Side View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Featured Image
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Back View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Front View
A-PUCK-0012-V2-01,2-in-1 Transportation & IoT/M2M Antenna,Wi-Fi MIMO Antenna Black Side View
PUCK-1-V2 - Image 10
Compact High-Performance SISO 5G & LTE Antenna

POYNTING’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, smart metering, smart utilities, transportation, marine, and agricultural/farming applications. The PUCK-1 is a SISO antenna offering wideband coverage from 617 to 6000 MHz, ensuring reliable connectivity across LTE/4G and 5G networks.

Wideband Cellular Coverage: Supports frequencies from 617 to 6000 MHz, covering LTE/4G and 5G for future-proof implementation.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Signal Stability: Delivers strong and reliable connectivity, particularly at higher frequency bands where throughput and stability are critical.

The PUCK-1 is an excellent choice for applications requiring a compact, high-performance SISO antenna solution, offering robust and stable LTE/5G connectivity.

Print Friendly, PDF & Email

Ideal Applications

  • Smart utilities: Smart Power, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Industrial factory automation, robotic machinery and other M2M systems
  • Digital Signage
  • Warehouses & Logistic systems
  • Transport (Busses, Utility & Public Safety)
  • Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
  • Agricultural machinery
  • Marine: small boats, yachts near to coastlines or inner waters

Technical Specifications for PUCK-1-V2

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , ,

Gain

Directionality

Mounting Type

, , , ,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for PUCK-1-V2

SKU Connector Type COAX Cable Type / Length Colour
A-PUCK-0001-V2-01 SMA (m) RTK-031 / 2m Black
A-PUCK-0001-V2-01-W SMA (m) RTK-031 / 2m White

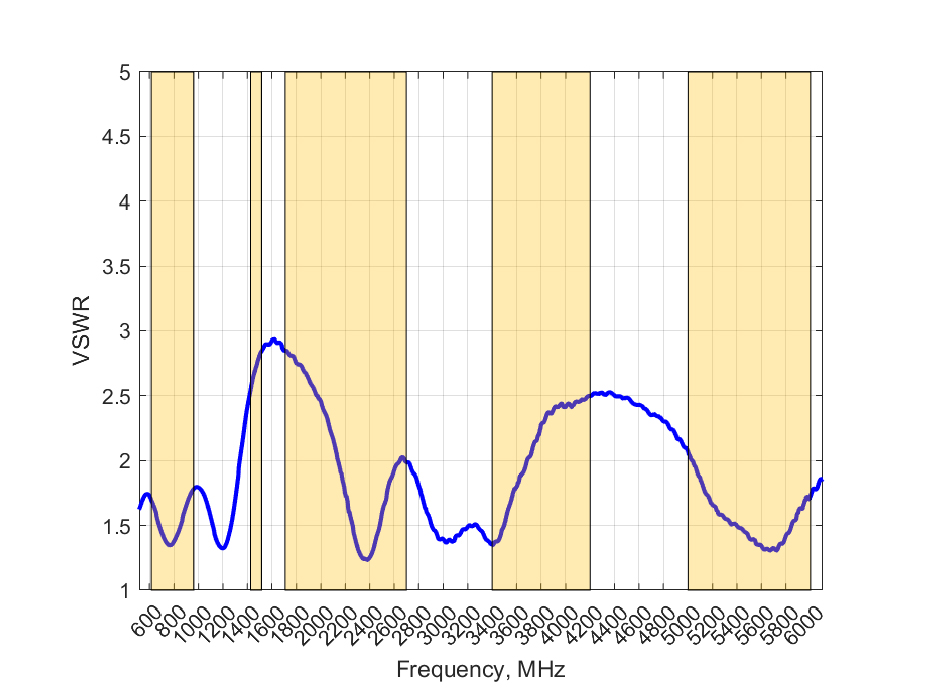

VSWR & Gain

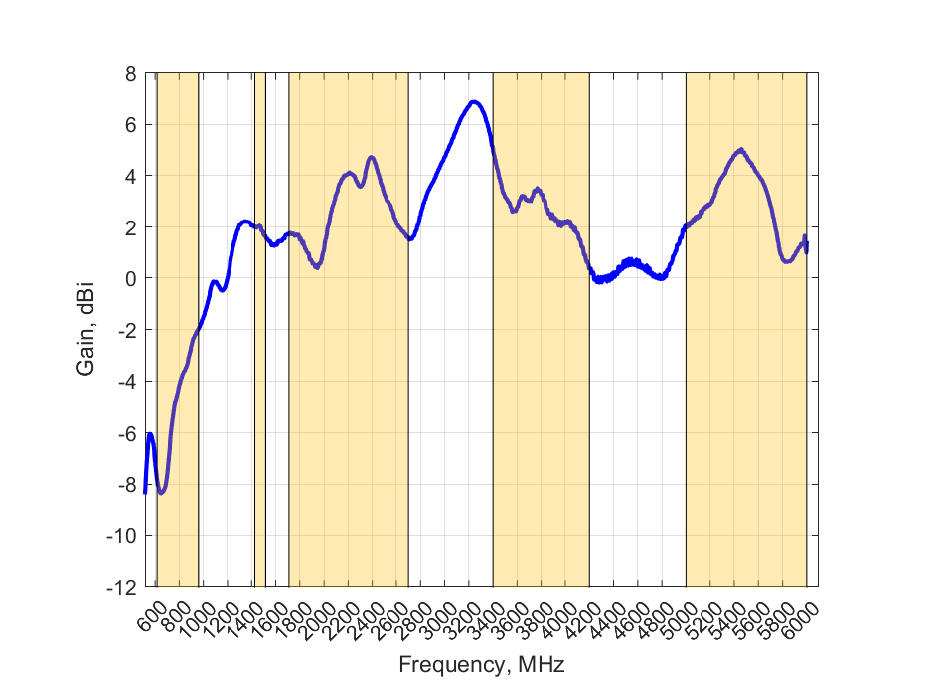

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Digi
Robustel
Teltonika

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

PUCK-1-V2 Product Certificates

A-PUCK-0001-V2-01 Declaration of Conformity A-PUCK-0001-V2-01 White Declaration of Conformity A-PUCK-0001-V2-01 0.7m Declaration of Conformity A-PUCK-0001-V2-01 5m Declaration of Conformity

High Resolution Images

PUCK LTE MIMO Antenna Feature Image PUCK LTE MIMO Antenna Back View PUCK LTE MIMO Antenna Front View PUCK LTE MIMO Antenna Side View PUCK LTE MIMO Antenna Feature Image White PUCK LTE MIMO Antenna Back View White PUCK LTE MIMO Antenna Front View White PUCK LTE MIMO Antenna Side View White PUCK Mounting Option: Panel PUCK Mounting Option: Wall and Pole PUCK Mounting Option: Spigot PUCK Mounting Option: Spigot Exploded Long PUCK Mounting Option: Spigot Exploded PUCK Mounting Option: Surface Adhesive PUCK Mounting Option: Magnetic Base Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-PUCK-0001-V2-01 EAN: 6009710928196 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.5kg
1.10lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 15.05kg
33.18lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0001-V2-01-W EAN: 6009710928219 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.5kg
1.10lbs		 Packaged Dimensions: 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		 Master Box QTY: 27 Master Box Weight: 15.05kg
33.18lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		 Country of Origin: CN
SKU A-PUCK-0001-V2-01A-PUCK-0001-V2-01-W
EAN 60097109281966009710928219
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.5kg
1.10lbs		0.5kg
1.10lbs
Packaged Dimensions 150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch		150 x 150 x 120 mm
5.91 x 5.91 x 4.73 inch
Master Box QTY 2727
Master Box Weight 15.05kg
33.18lbs		15.05kg
33.18lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch		520 x 495 x 400 mm
20.47 x 19.49 x 15.75 inch
Country of Origin CNCN
