WaveHunter™ V4

The WaveHunter Enclosure
X-Polarised, High Gain, Multi-Directional 5G/LTE, 24x24 Multi MIMO Antenna Array
617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS
POYNTING antennas provide robust connectivity for XL vessels, including oil tankers and container ships, ensuring reliable communication and internet access for marine and coastal operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas deliver reliable connectivity for XL container ships, ensuring seamless communication and internet access for marine and coastal operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure seamless connectivity for mega yachts, providing reliable internet access and communication for marine and coastal applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide seamless connectivity for XL cruise ships, ensuring reliable internet access and communication for marine and coastal operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for XL cargo ships, providing seamless communication and internet access for marine and coastal operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for XL cruise ships, providing seamless communication and internet access for marine and coastal voyages. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-960 MHz; 1710-2700 MHz; 3400-4200 MHzview details below
11dBi±43km/27mi coverage*
Multi-directional
4×4 MIMO
IP69K
-40°C to +80°C

Key Features

  • Antenna enclosure with high performance antennas
  • New advanced metamaterial technology
  • Exceptional high gain performance over the main 4G/5G bands
  • Cross-polarised antennas for improved performance
  • IP69K weather/dust resistant enclosure
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-WHUNTER-001-V4-101-102
A-WHUNTER-001-V4-101-102,617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS, Featured Image

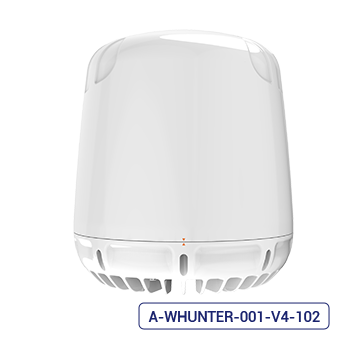

A-WHUNTER-001-V4-101-102,617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS, Front View
A-WHUNTER-001-V4-101-102,617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS, Bottom Base View
A-WHUNTER-001-V4-101-102,617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS, Top View
A-WHUNTER-001-V4-101-102,617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS, Base Exploded View

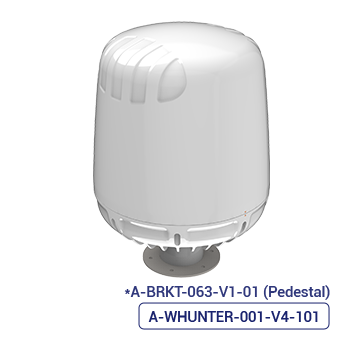

A-WHUNTER-001-V4-101-102,617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS, Pedestal Featured Image - 101

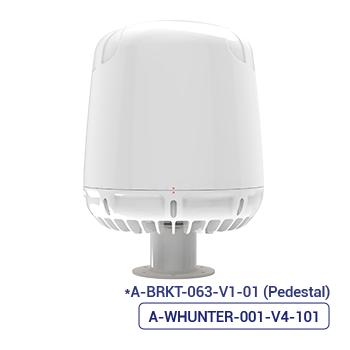

A-WHUNTER-001-V4-101-102,617-960MHz & 1710-4200MHz, 11dBi, 6x(4x4 MIMO) + 4x4 MIMO Dual Band Wi-Fi + 2x2 GPS, Pedestal Front View - 101
High-Performance Antenna Enclosure for Multi-Router LTE & 5G Deployments

Introducing the WaveHunter™ Series: POYNTING Antennas proudly unveils its innovative new range of antenna enclosures, the WaveHunter™ series. Designed to accommodate a variety of router and networking modules, the WaveHunter™ transforms into a robust Customer Premises Equipment (CPE) by simply adding your choice of LTE/5G routers and networking devices.

Versatile Compatibility: The WaveHunter™ enclosure supports routers up to dimensions of 450 mm x 280 mm x 110 mm, using the optional WaveHunter™ brackets for secure installation. Additional equipment may be integrated into a customised, user-supplied stacked frame.

Advanced Antenna Technology: Utilising our globally acclaimed Artificial Magnetic Conductor (AMC) technology from the XPOL-2-5G antenna, the WaveHunter™ features an array of 12 cross-polarised, high gain, 2×2 MIMO directional antennas. These are strategically arranged in two stacked arrays, offset at 60° increments, to provide 360° wideband coverage.

Exceptional Frequency Range: Offers comprehensive frequency coverage from 617 to 960 MHz and 1710 to 4200 MHz, with a peak gain of 11 dBi, ideal for Multi-router LTE & 5G bonded and aggregated deployments.

Durable and Weatherproof Design: Engineered to withstand adverse weather conditions, the WaveHunter™ antenna enclosure is both weatherproof and waterproof, boasting an IP 69K rating.

Seamless Integration: The WaveHunter™ series is designed for easy installation, promoting not only functionality but also reliability in a variety of environmental conditions, making it an optimal solution for advanced connectivity needs.

Print Friendly, PDF & Email

Ideal Applications

  • Marine applications: Super yachts, commercial vessels, cruise ships, ferries, private yachts, and towing vessels
  • Harsh environments such as harbour buildings, and buoys
  • Enhanced LTE/4G and 5G reception
  • Increase system transmission reliability

Technical Specifications for WaveHunter™ V4

Additional information

Industry (Application)

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , , ,

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Wi-Fi Ports

GNSS/GPS Ports

Accessories

Product Options/Variants for WaveHunter™ V4

SKU Connector Type COAX Cable Type / Length Colour
A-WHUNTER-001-V4-101 SMA (m) RG141 / 750mm White
A-WHUNTER-001-V4-102 SMA (m) RG141 / 750mm White

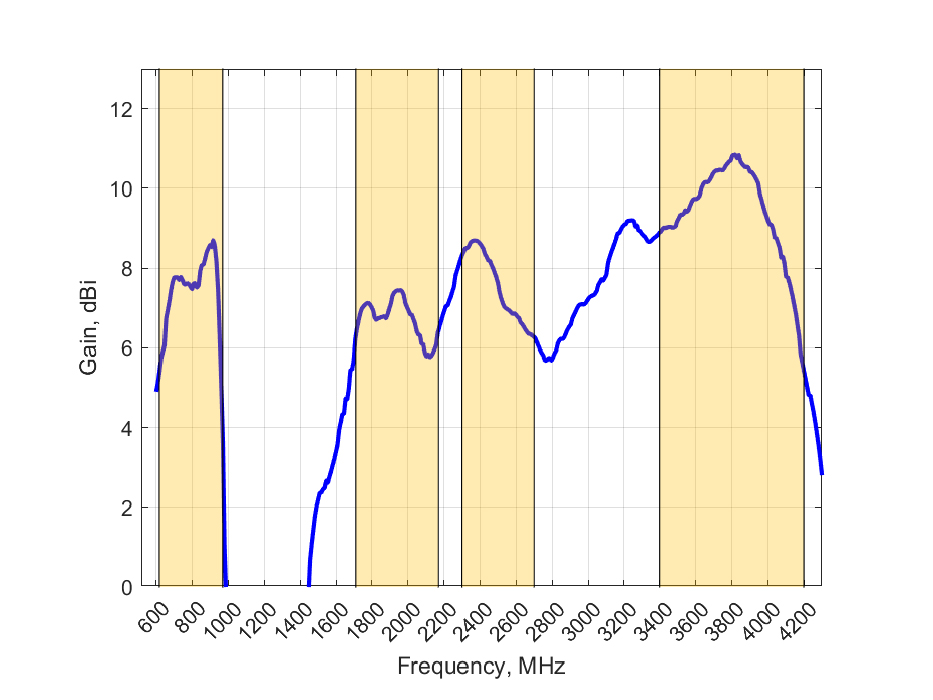

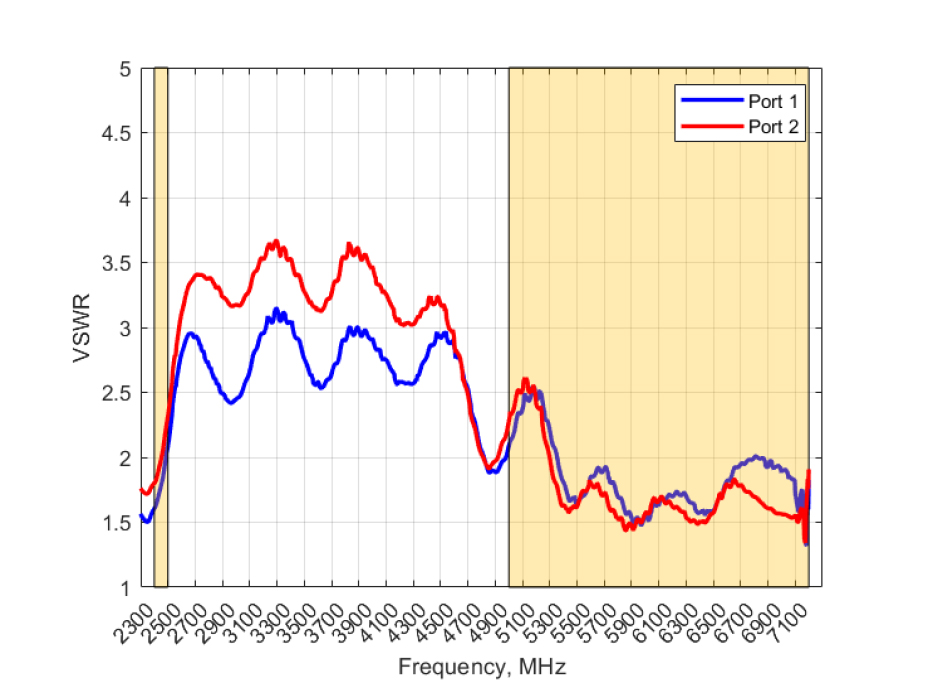

VSWR & Gain

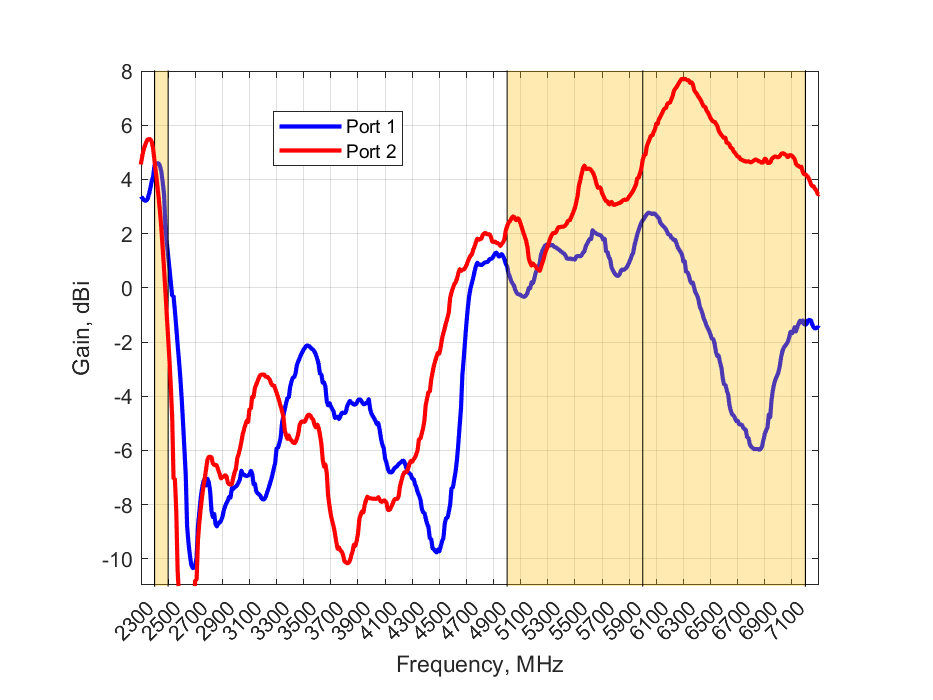

Gain (excluding Cable Loss)

Gain (excluding Cable Loss)

Router Compatibilities

Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

WaveHunter™ V4 Product Certificates

A-WHUNTER-001-V4-101 Declaration of Conformity A-WHUNTER-001-V4-102 Declaration of Conformity

High Resolution Images

A-WHUNTER-001-V4-102 Multi-Directional CPE Feature Image A-WHUNTER-001-V4-102 Multi-Directional CPE Front Image A-WHUNTER-001-V4-102 Multi-Directional Bottom Base Image A-WHUNTER-001-V4-102 Multi-Directional Top Image A-WHUNTER-001-V4-102 Multi-Directional Exploded View A-WHUNTER-001-V4-102 Multi-Directional Pedestal Feature Image A-WHUNTER-001-V4-102 Multi-Directional Pedestal Front Image Download website images (low resolution)

MSI & CAD Files

XPOL-24 CAD Files

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-WHUNTER-001-V4-101 EAN: 6009710928998 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: TBC Packaged Dimensions: TBC Master Box QTY: 1 Master Box Weight: TBC Master Box Dimensions: TBC Country of Origin: RSA
SKU A-WHUNTER-001-V4-102 EAN: 6009710929018 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 43.56kg
96.03lbs		 Packaged Dimensions: 700 x 700 x 940 mm
27.56 x 27.56 x 37.01 inch		 Master Box QTY: 1 Master Box Weight: 77.16kg
170.11lbs		 Master Box Dimensions: 700 x 700 x 940 mm
27.56 x 27.56 x 37.01 inch		 Country of Origin: RSA
SKU A-WHUNTER-001-V4-101A-WHUNTER-001-V4-102
EAN 60097109289986009710929018
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight TBC43.56kg
96.03lbs
Packaged Dimensions TBC700 x 700 x 940 mm
27.56 x 27.56 x 37.01 inch
Master Box QTY 11
Master Box Weight TBC77.16kg
170.11lbs
Master Box Dimensions TBC700 x 700 x 940 mm
27.56 x 27.56 x 37.01 inch
Country of Origin RSARSA
