DASH-3

The DASH Enclosure
Ultra Low Profile, Smart Meter LTE Antenna
400 - 510 MHz, 1.2dBi
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for electric vehicle charging stations, ensuring seamless communication and real-time data management for smart mobility solutions. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
400-510 MHzview details below
1.2dBi±22km/14mi coverage*
Omni-Directional
-40°C to +75°C
Fire Resistant
IP67Waterproof/Dust-resistant

Key Features

  • Smart Meter, M2M and IoT antenna
  • Futureproof LTE antenna
  • Increased connectivity stability
  • LoRa (433 MHz),
  • CDMA (450 MHz)
  • NB-IoT/LTE-M (450 MHz)
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
Get Quotation
A-DASH-0003-V1

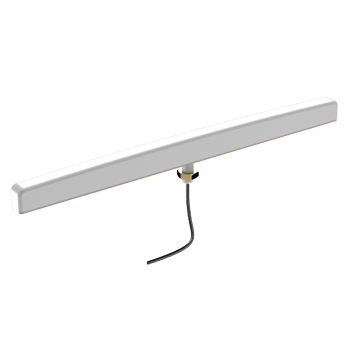

A-DASH-0003-V1,Ultra Low Profile, Smart Meter LTE Antenna,LTE Featured Image

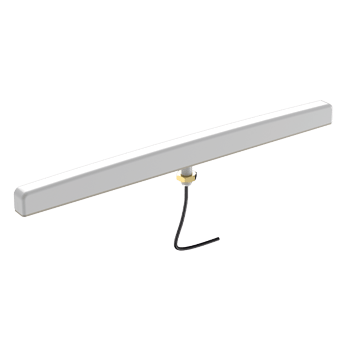

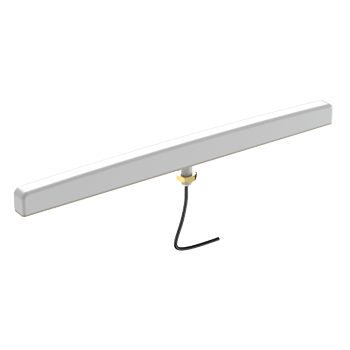

A-DASH-0003-V1,Ultra Low Profile, Smart Meter LTE Antenna,LTE Back View
A-DASH-0003-V1,Ultra Low Profile, Smart Meter LTE Antenna,LTE Front View

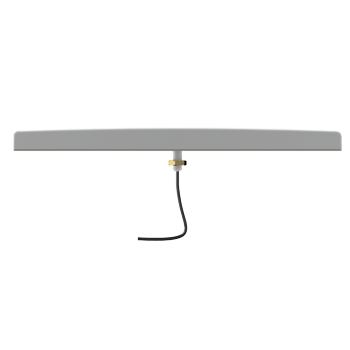

A-DASH-0003-V1,Ultra Low Profile, Smart Meter LTE Antenna,LTE Side View
Compact, Omni-Directional Antenna for Smart Meters & IoT

The DASH-3 is purposefully designed for low-profile applications, making it ideal for smart meters and IoT deployments. Its omni-directional radiation pattern ensures reliable connectivity for both indoor and outdoor installations, typically mounted on the top or side of smart meter boxes.

Wideband Frequency Coverage: 400–510 MHz, supporting IoT and LTE/CDMA applications.

Omni-Directional Radiation Pattern: Ensures 360° signal coverage for consistent performance.

Compact & Low-Profile Design: Seamlessly integrates into smart meter enclosures for easy deployment.

Superior Electrical Performance: Optimised for the 433–510 MHz international IoT and LTE/CDMA bands.

The DASH-3 is the perfect solution for smart metering and IoT applications, delivering reliable connectivity with a simple, durable design.

Print Friendly, PDF & Email

Ideal Applications

  • Smart Utilities: Smart Power Metering, Gas & Water Metering
  • Smart Buildings: Climate Control, Access Control, Security, Irrigation
  • Digital Signage
  • Smart Environmental & Water Systems
  • Industrial Factory Automation and M2M systems
  • Warehouses & Logistics Systems
  • Farming & Agricultural M2M & IoT

Technical Specifications for DASH-3

Additional information

Industry (Application)

Technology

, , ,

Cellular Freq. Range

Frequency Band

, ,

5G Bands

,

LTE/4G Bands

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Product Options/Variants for DASH-3

SKU Connector Type COAX Cable Type / Length Colour
A-DASH-0003-V1 SMA (m) RG-174 / 1m Off White

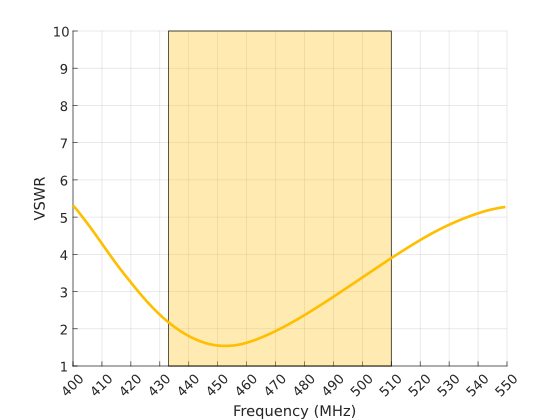

VSWR & Gain

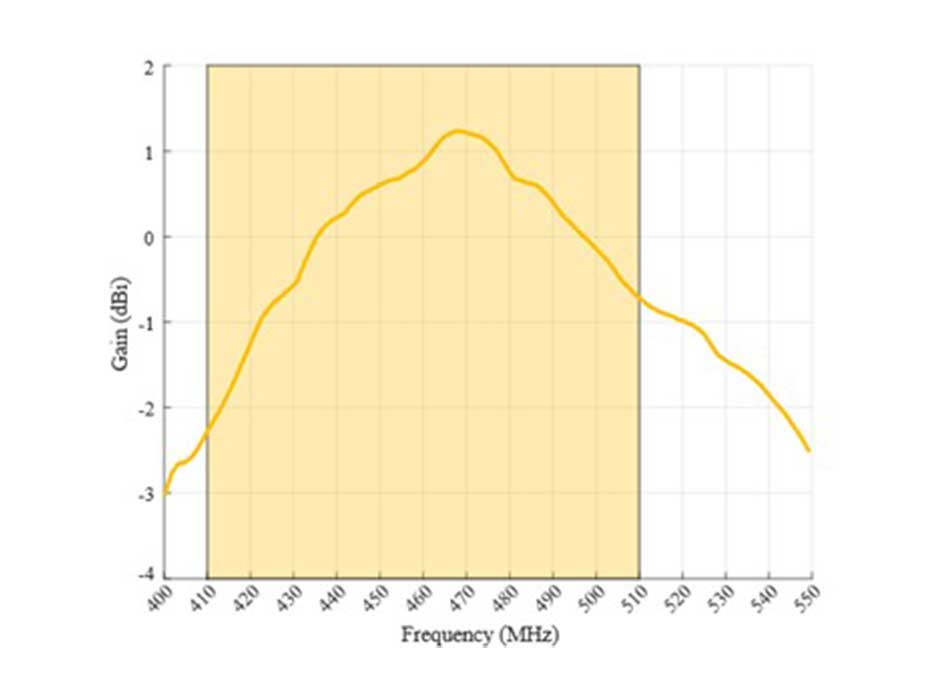

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Advantech

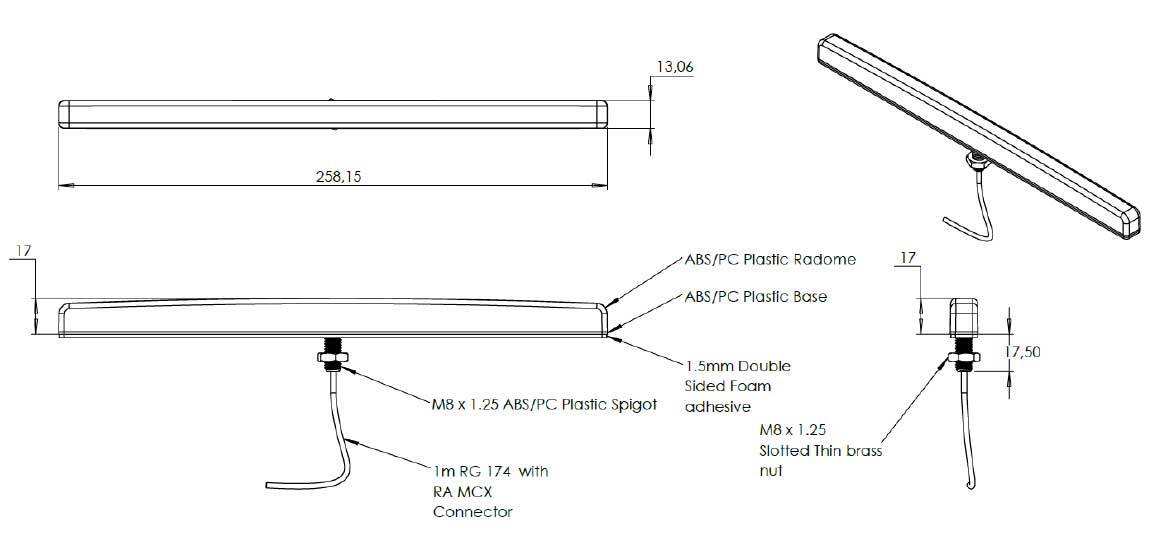

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-DASH-0003-V1 LTE Feature Image A-DASH-0003-V1 LTE Back View A-DASH-0003-V1 LTE Front View A-DASH-0003-V1 LTE Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-DASH-0003-V1 EAN: 707273470256 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.07kg
0.154lbs		 Packaged Dimensions: 265 x 100 x 15 mm
10.43 x 3.93 x 0.59 inch		 Master Box QTY: 110 Master Box Weight: 7.61Kg
16.78lbs		 Master Box Dimensions: 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch		 Country of Origin: CN
SKU A-DASH-0003-V1
EAN 707273470256
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.07kg
0.154lbs
Packaged Dimensions 265 x 100 x 15 mm
10.43 x 3.93 x 0.59 inch
Master Box QTY 110
Master Box Weight 7.61Kg
16.78lbs
Master Box Dimensions 500 x 330 x 320 mm
19.69 x 13 x 12.6 inch
Country of Origin CN
