EPNT-4

Short Cable.
Zero Loss.
The Penguin Enclosure
X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE
617 - 4200 MHz, 3dBi; 2400 - 2500 MHz & 5000 - 7200 MHz; 2.2dBi
POYNTING antennas provide reliable connectivity for rural farming, ensuring seamless communication between homes, silos, warehouses, and smart agricultural operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for urban and rural estates, providing seamless communication and internet access for residential and business applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for smart farming, ensuring seamless communication and real-time data access for farmers using tablets in cow sheds. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-4200 MHzview details below
3dBi LTE±17km/11mi coverage*
Omni-Directional
2.4-2.5 GHz 5.0-7.2 GHz
4×4 MIMO
IP67Waterproof/Dust-resistant
-40°C to +80°C

Key Features

No Long Feeders. Maximum Performance.

Router inside enclosure for short RF cables, stronger signal, and faster data.
  • An all-in-one solution that integrates high-performance antennas with your router into a single, rugged outdoor enclosure, simplifying installation
  • Minimal RF cable losses, as there is no need for lengthy RF cables to connect to your router, enhancing overall antenna performance
  • Wideband 5G/LTE antennas up to 4x4 MIMO
  • Backwards compatible with 2G/3G/4G technologies
  • 2x2 or 4x4 MIMO Wi-Fi antennas for 2.4 GHz and 5 to 7.2 GHz
  • Available router size of up to 140 x 120 x 50 mm³
  • 316 stainless steel bracket included for marine applications
  • Weather, dust and vandal resistant enclosure (IP67)

Please select your Router Brand
By selecting your router brand, we can pair the suitable ePoyntâ„¢ solution. If your router brand is not listed, please select "Not Listed" from the dropdown menu.
Find the Compatible ePoyntâ„¢

Above are our recommendations, but you can browse our product range on this page for more options, or you can call a sales representative in your region on our contact us page.
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
Get Quotation
A-EPNT-0004-V1
A-EPNT-0004-V1,X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE,Omni-Directional CPE Featured Image
A-EPNT-0004-V1,X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE,Omni-Directional CPE Back View
A-EPNT-0004-V1,X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE,Omni-Directional CPE Front View
A-EPNT-0004-V1,X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE,Omni-Directional CPE Side View
A-EPNT-0004-V1,X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE,Omni-Directional CPE CPE Radome Open
POYNTING EPNT-4 Bracket View
EPNT-4 New 316 stainless steel bracket - BRKT-91
EPNT-4 New 316 stainless steel bracket - BRKT-91 Side View
EPNT-4 New 316 stainless steel bracket - BRKT-91 Featured Image
EPNT-4 New 316 stainless steel bracket - BRKT-91 Bottom View
Omni-Directional Antenna Enclosure for 5G/4G & Wi-Fi

POYNTING introduces the EPNT-4, an advanced omni-directional Customer Premises Equipment (CPE) solution that integrates multiple high-performance antennas into a single enclosure. Designed for versatility, the EPNT-4 enhances 5G/4G and Wi-Fi performance, making it ideal for reliable communication in demanding environments.

Comprehensive Multi-Antenna System: Features 4×4 5G/4G MIMO, 4×4 Wi-Fi MIMO, and an additional GPS antenna for enhanced connectivity.
Wideband Cellular Coverage: Supports 617–4200 MHz, ensuring excellent gain across major 5G/4G bands for superior multi-carrier aggregation (CA).
High-Performance Wi-Fi Antennas: Dual-band operation covering 2.4 GHz & 5–7.2 GHz with 2.2 dBi peak gain for 4×4 MIMO connectivity.
Cross-Polarised Antenna Elements: Improves signal reception, enhancing overall performance and data throughput.
Optimised for Harsh Environments: Fully saltwater-protected and resistant to corrosive chemicals, thanks to its UV-stable ASA radome material.
Rugged & Weatherproof Design: Built to withstand extreme conditions with IP67 & IK10 ratings, ensuring durability and vandal resistance.

The EPNT-4 is the ideal solution for robust, high-performance connectivity, providing seamless 5G/4G and Wi-Fi integration in even the most challenging environments.

Print Friendly, PDF & Email

Ideal Applications

  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & agricultural automation such as M2M & IoT
  • Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)
  • Outdoor antenna for Fixed Wireless Access (FWA)
  • Consumer 5G/4G internet connectivity
  • Industrial and commercial 5G/4G deployment

Technical Specifications for EPNT-4

Additional information

Industry (Application)

, ,

Technology

, ,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

, , , ,

Product Configuration

Gain

Directionality

Mounting Type

, , ,

Connectors

MIMO

,

Polarisation

Environmental

LTE Ports

,

Wi-Fi Ports

,

GNSS/GPS Ports

Router Housing Dimensions

,

Product Options/Variants for EPNT-4

SKU Connector Type COAX Cable Type / Length Colour
A-EPNT-0004-V1-15 RA-SMA (m) RTK-031 / 0.15m White
A-EPNT-0004-V1-17 RA-SMA (m) RTK-031 / 0.15m White
A-EPNT-0004-V1-19 RA-SMA (m) RTK-031 / 0.15m White

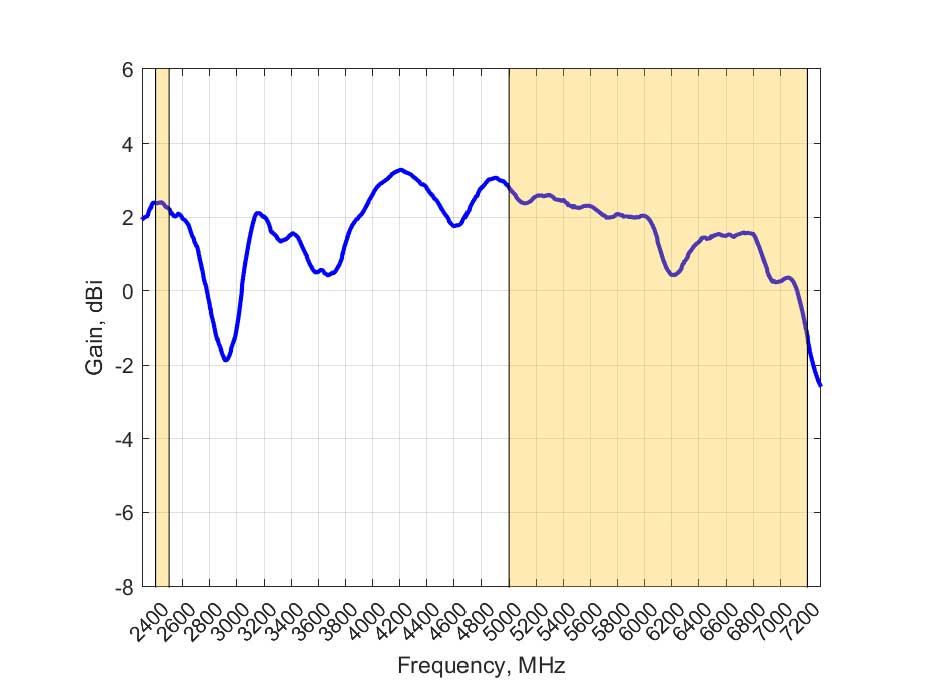

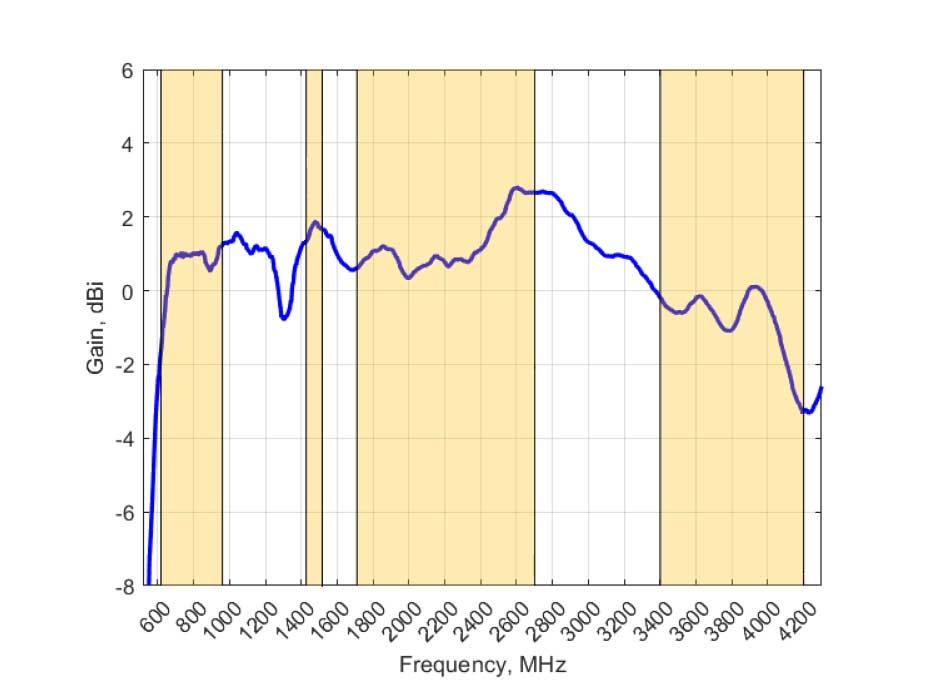

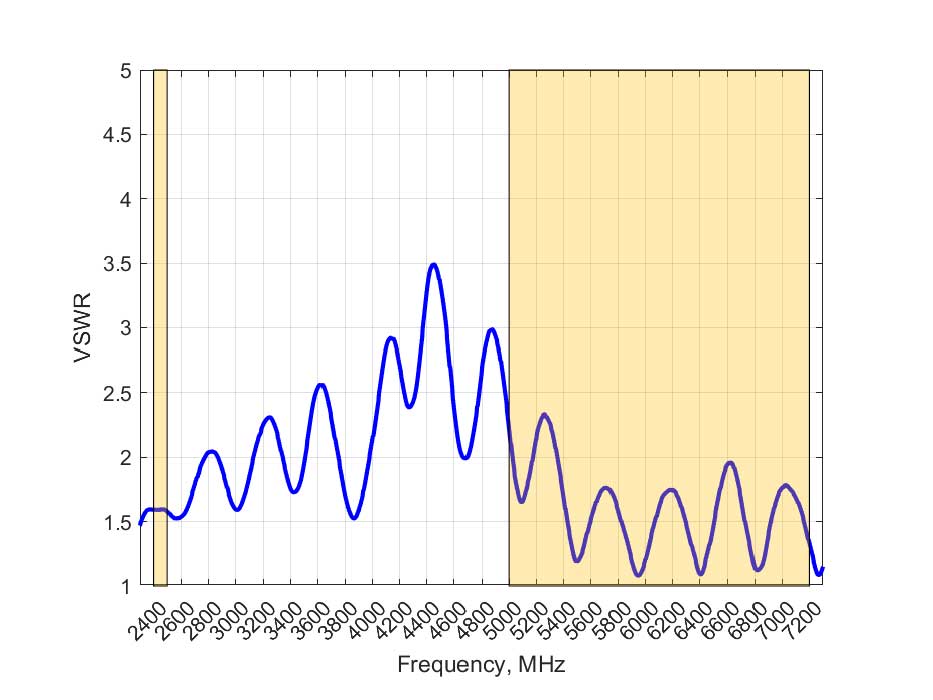

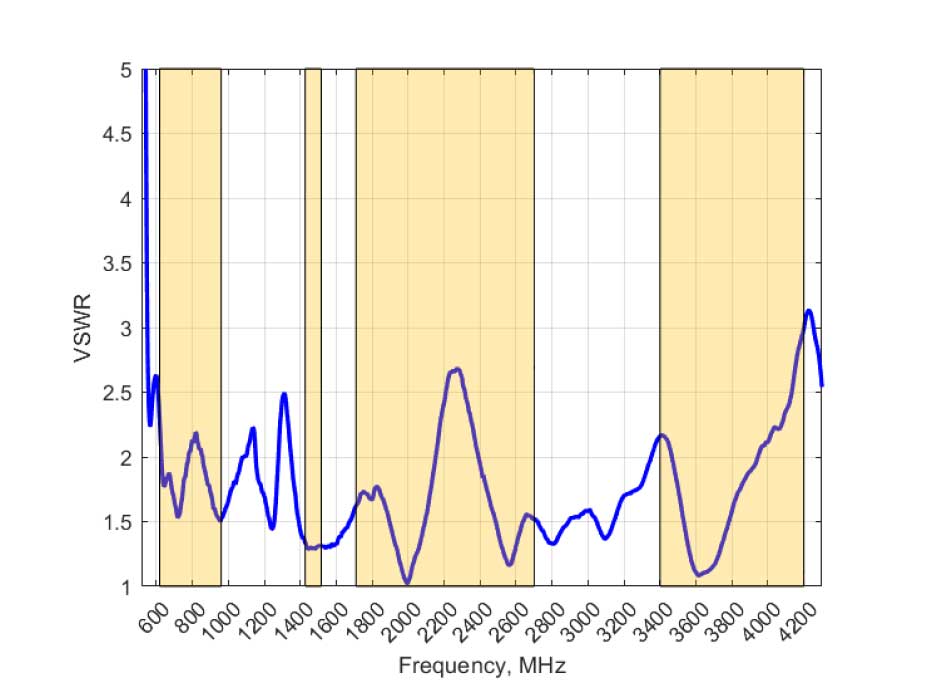

VSWR & Gain

Gain (excluding Cable Loss)

Gain (excluding Cable Loss)

Technical Drawing

FAQ's & Articles

Downloadable Files

EPNT-4 Product Certificates

A-EPNT-004-V1-17 Declaration of Conformity A-EPNT-004-V1-19 Declaration of Conformity

High Resolution Images

A-EPNT-004-V1 Omni-Directional CPE Feature Image A-EPNT-004-V1 Omni-Directional CPE Front View A-EPNT-004-V1 Omni-Directional CPE Back View A-EPNT-004-V1 Omni-Directional CPE Side View A-EPNT-004-V1 Omni-Directional CPE Top View A-EPNT-004-V1 Omni-Directional CPE Clear Radome A-EPNT-004-V1 BRKT-91 Side View A-EPNT-004-V1 BRKT-91 Bottom View A-EPNT-004-V1 BRKT-91 Front View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-EPNT-0004-V1-15 EAN: 6009710924853 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 2.19kg
4.83lbs		 Packaged Dimensions: 405 x 28 x 20 mm
15.95 x 11.02 x 7.87 inch		 Master Box QTY: 5 Master Box Weight: 12.78kg
28.18lbs		 Master Box Dimensions: 1125 x 430 x 330 mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU A-EPNT-0004-V1-17 EAN: 6009710924877 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 2.21kg
4.87lbs		 Packaged Dimensions: 405 x 280 x 200 mm
15.95 x 11.02 x 7.87 inch		 Master Box QTY: 5 Master Box Weight: 13.05kg
28.77lbs		 Master Box Dimensions: 1125 x 430 x 330 mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU A-EPNT-0004-V1-19 EAN: 6009710924631 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 2.65kg
5.84lbs		 Packaged Dimensions: 405 x 28 x 20 mm
15.95 x 11.02 x 7.87 inch		 Master Box QTY: 5 Master Box Weight: 15.2kg
33.5lbs		 Master Box Dimensions: 1125 x 430 x 330 mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU EAN: HS Code: Packaged Weight: Packaged Dimensions: Master Box QTY: Master Box Weight: Master Box Dimensions: Country of Origin:
SKU A-EPNT-0004-V1-15A-EPNT-0004-V1-17A-EPNT-0004-V1-19
EAN 600971092485360097109248776009710924631
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 2.19kg
4.83lbs		2.21kg
4.87lbs		2.65kg
5.84lbs
Packaged Dimensions 405 x 28 x 20 mm
15.95 x 11.02 x 7.87 inch		405 x 280 x 200 mm
15.95 x 11.02 x 7.87 inch		405 x 28 x 20 mm
15.95 x 11.02 x 7.87 inch
Master Box QTY 555
Master Box Weight 12.78kg
28.18lbs		13.05kg
28.77lbs		15.2kg
33.5lbs
Master Box Dimensions 1125 x 430 x 330 mm
44.29 x 16.93 x 13 inch		1125 x 430 x 330 mm
44.29 x 16.93 x 13 inch		1125 x 430 x 330 mm
44.29 x 16.93 x 13 inch
Country of Origin CNCNCN
