HELI-40

The Badger Enclosure
Circular Polarised, Bi-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi
2400 – 2500 MHz; 5000 – 6000 MHz, 4.8 dBic
POYNTING antennas ensure reliable connectivity for busy subway trains, providing seamless communication and internet access in underground tunnels and high-traffic urban environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for IoT-enabled open-pit mining, supporting seamless communication for unmanned trucks and autonomous vehicles in rugged environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for underground mining and tunneling operations, enabling seamless communication and data transmission in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for subway trains and underground mining operations, providing seamless communication in tunnels and challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for underground mining trucks, enabling seamless communication and data transmission in tunnel environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for underground mining operations, ensuring seamless communication, automation, and data transmission in challenging environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
2400-2500; 5000-6000 MHzview details below
4.8dBic±5km/3mi coverage*
Bi-Directional
2.4-2.5 GHz 5.0-6.0 GHz
2×2 MIMO
IP68Dust-tight & Waterproof
-40°C to +70°C
Fire Resistant

Key Features

  • Circular Polarised HELI antenna provides enhanced signal propagation ad connection stability within a tunnel
  • Left Hand Circular (LHC) & Right-Hand Circular (RHC) polarised
  • Bi-directional – radiates in both directions within a tunnel
  • Ruggedized, water and dust ingress protected (IP68)
  • Ideal for Mining & Tunnel M2M and IoT deployment
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
Get Quotation
A-HELI-0040-V1-01
A-HELI-0040-V2-01,Circular Polarised, Bi-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Wi-Fi Mine Tunnel Featured Image

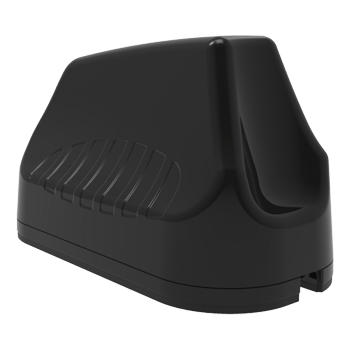

A-HELI-0040-V2-01,Circular Polarised, Bi-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Wi-Fi Mine Tunnel Back View

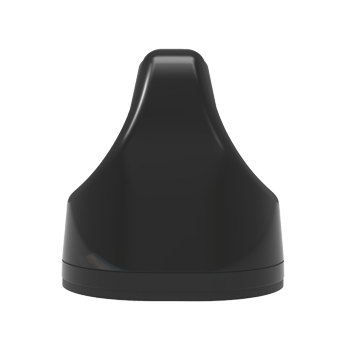

A-HELI-0040-V2-01,Circular Polarised, Bi-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Wi-Fi Mine Tunnel Front View

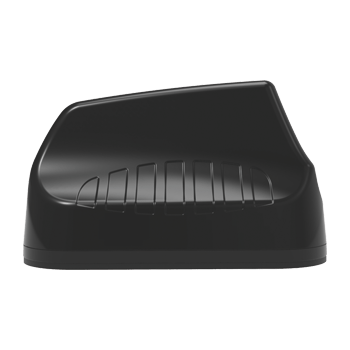

A-HELI-0040-V2-01,Circular Polarised, Bi-Directional Mine/Tunnel Antenna; Dual-band Wi-Fi,Wi-Fi Mine Tunnel Side View
Dual-Band 2x2 MIMO Wi-Fi Antenna for Mining and Tunnel Applications

The HELI-40 expands POYNTING’s HELI antenna range, offering a dual-band 2.4 GHz and 5 GHz Wi-Fi antenna designed for bi-directional radiation, making it ideal for mining and tunnel deployments. Engineered specifically for vehicle and equipment mounting, the HELI-40 ensures seamless telemetry and mining automation within underground environments. The circular polarization enhances signal propagation around bends, ensuring improved link stability and reliability in non-line-of-sight (NLOS) conditions.

Dual-Band Wi-Fi Coverage: Supports 2.4 GHz and 5 GHz Wi-Fi bands, ensuring reliable connectivity in mining and tunnel environments.
Bi-Directional Radiation Pattern: Provides coverage in both directions, enhancing Wi-Fi performance in confined tunnel spaces.
2×2 MIMO Capability: Enhances data throughput and signal reliability for advanced mining communication systems.
Optimized for MIMO Deployments: Available in Left-Hand Circular (LHC) and Right-Hand Circular (RHC) polarization for improved decorrelation.
Non-Line-of-Sight (NLOS) Propagation: Circular polarization enables signal transmission around tunnel bends, minimizing interference from mining equipment.
Vehicle & Equipment Mounting: Designed for rugged deployment on mobile machinery, improving telemetry and automation in mining operations.

The HELI-40 is a high-performance Wi-Fi antenna designed to deliver reliable, stable, and interference-free connectivity in challenging underground environments, making it an ideal solution for mining, tunneling, and industrial applications.

Print Friendly, PDF & Email

Ideal Applications

  • Mining Vehicles & Machinery communications, telemetry, and automation (M2M & IoT)
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Creating complete underground in tunnel connection for vehicle tracking and personnel safety

Technical Specifications for HELI-40

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

,

Wi-Fi Standard

, , ,

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

Wi-Fi Ports

Accessories

Product Options/Variants for HELI-40

SKU Connector Type COAX Cable Type / Length Colour
A-HELI-0040-V1-01 N-Type (M) RG-58 / 0.35m Black

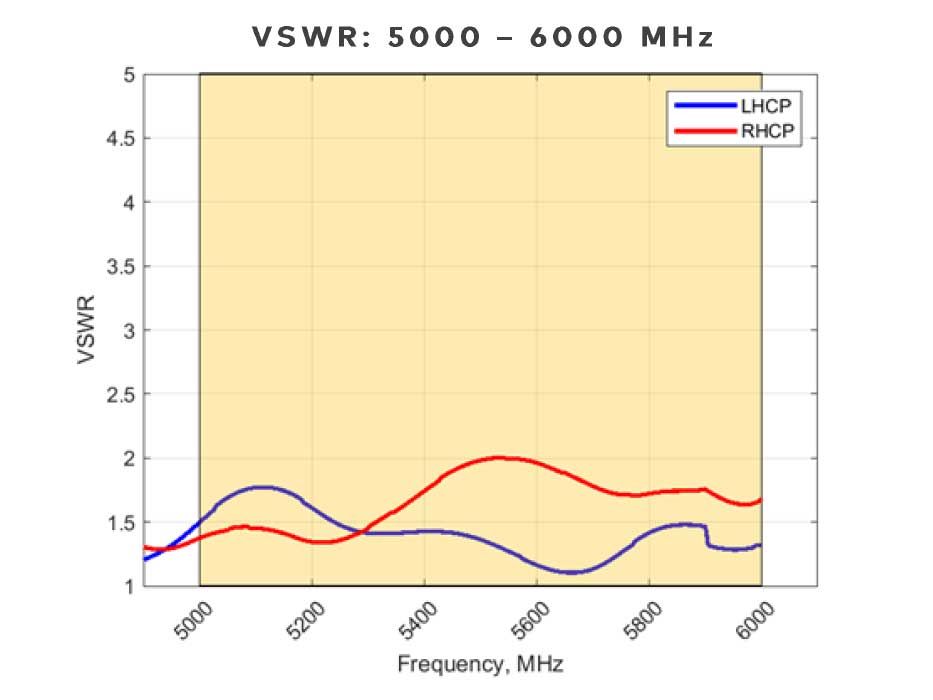

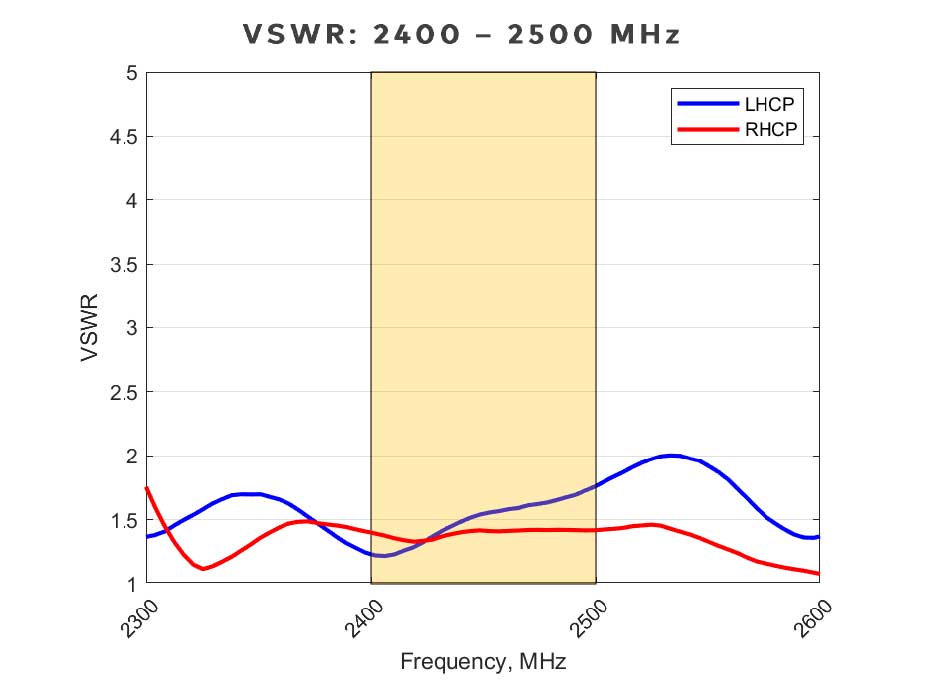

VSWR & Gain

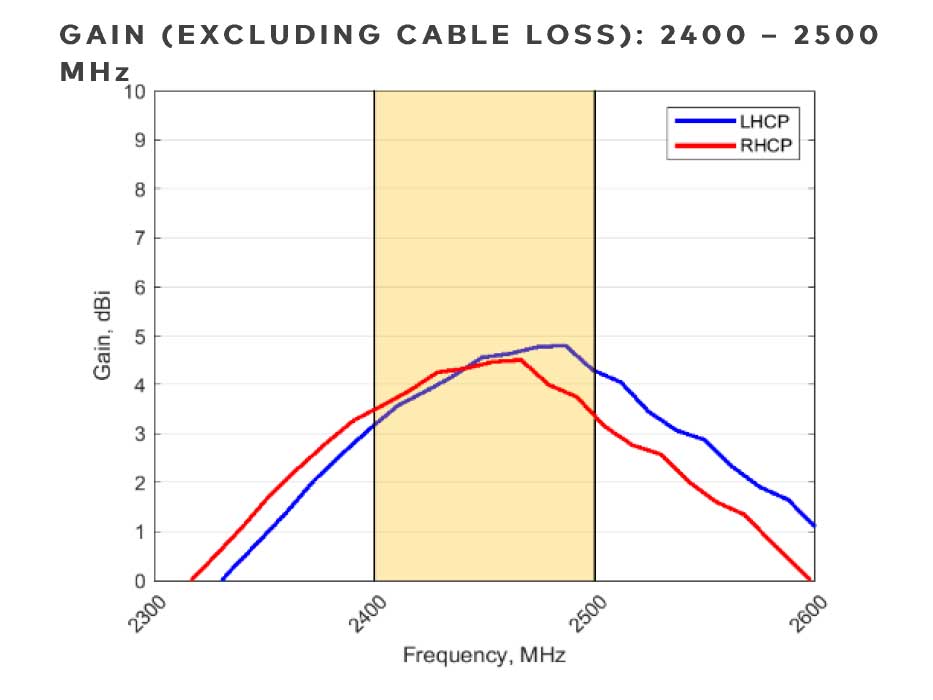

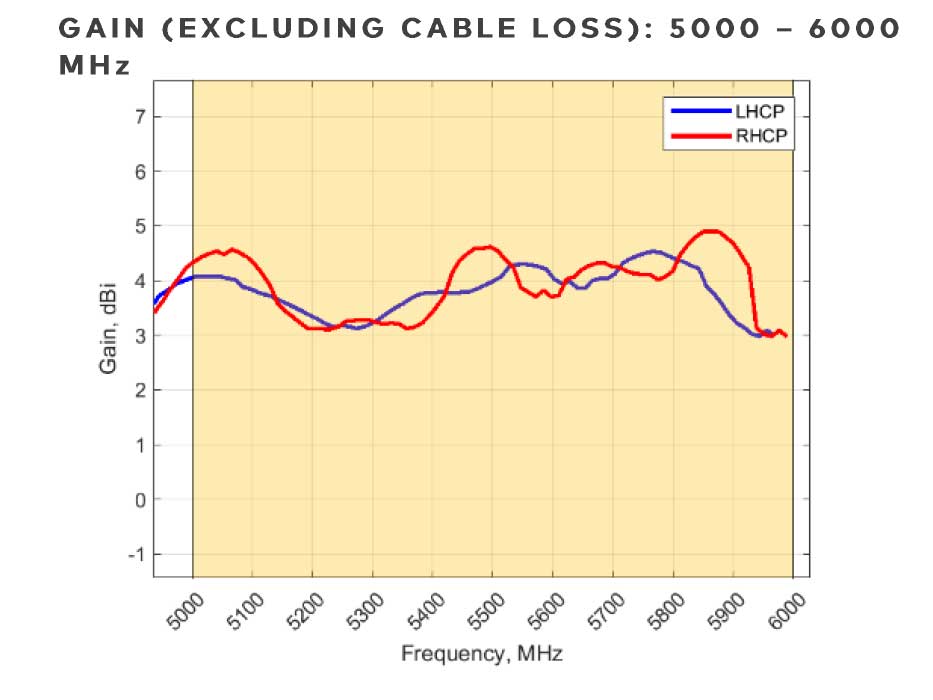

Gain (excluding Cable Loss)

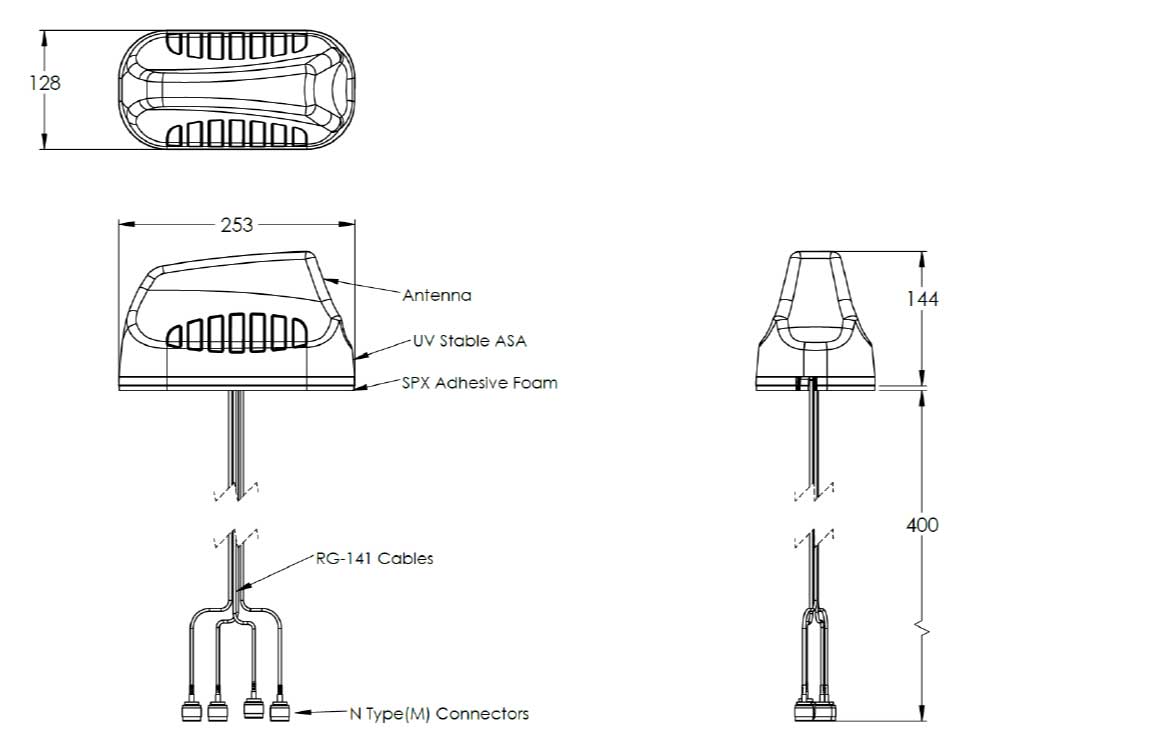

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

A-HELI-0040-V1-01 Wi-Fi Mine Tunnel Antenna Feature Image A-HELI-0040-V1-01 Wi-Fi Mine Tunnel Antenna Back View A-HELI-0040-V1-01 Wi-Fi Mine Tunnel Antenna Front View A-HELI-0040-V1-01 Wi-Fi Mine Tunnel Antenna Side Left View A-HELI-0040-V1-01 Wi-Fi Mine Tunnel Antenna Side Right View A-HELI-0040-V1-01 Wi-Fi Mine Tunnel Antenna Top View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-HELI-0040-V1-01 EAN: 6009710923542 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.48kg
3.26lbs		 Packaged Dimensions: 452 x 165 x 140 mm
17.72 x 6.5 x 5.51 inch		 Master Box QTY: TBC Master Box Weight: TBC Master Box Dimensions: TBC Country of Origin: RSA
SKU A-HELI-0040-V1-01
EAN 6009710923542
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.48kg
3.26lbs
Packaged Dimensions 452 x 165 x 140 mm
17.72 x 6.5 x 5.51 inch
Master Box QTY TBC
Master Box Weight TBC
Master Box Dimensions TBC
Country of Origin RSA
