OMNI-402-5G

The Moray Enclosure
Omni-Directional, Marine & Coastal 5G/4G 2x2 MIMO Antenna
410 – 4200 MHz, 5.8dBi
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for medium-sized yachts, ensuring seamless communication and internet access for marine and coastal adventures. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for tugboats, ensuring seamless communication and internet access for marine and coastal operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for large yachts, providing seamless communication and internet access for marine and coastal journeys. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity along shores with mountains and open sea sections, providing seamless communication and data access for coastal and maritime operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for harbors and buildings, ensuring seamless communication and data access to support boats and yachts in maritime operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
410-4200 MHzview details below
5.8dBi±36km/22mi coverage*
Omni-Directional
2×2 MIMO
IP68Dust-tight & Waterproof
-40°C to +80°C

Key Features

  • High performance wideband omni-directional marine antenna
  • 2x2 MIMO capability for improved performance
  • Easy mounting with feed through 1-inch marine standard adapter bracket included
  • Robust and all-weather proof for harsh conditions at sea (IP 68)
  • Various 316 stainless steel mounting brackets available optionally
  • UV and saltwater protected against tempestuous weather conditions
Supported Connectivity Technologies




Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0402-V2-01
OMNI-402-5G
OMNI-402-5G - Image 2
OMNI-402-5G - Image 3
OMNI-402-5G - Image 4
Ultra-Wideband 2x2 MIMO Omni-Directional Marine Antenna

The OMNI-402-5G is a high-performance omni-directional antenna designed to support all contemporary 5G and LTE operating frequencies. With ultra-wideband coverage from 410 to 4200 MHz and a peak gain of 5.8 dBi, this antenna ensures strong and reliable connectivity in marine and coastal environments. Its 2×2 MIMO capability enhances network performance, making it ideal for demanding offshore applications.

Ultra-Wideband Frequency Coverage: Supports 410 to 4200 MHz, ensuring compatibility with global LTE and 5G networks.
2×2 MIMO Capability: Features vertically separated elements for improved data throughput and signal reliability.
Omni-Directional Design: Provides 360° coverage, ensuring stable connectivity in all directions.
Superior Pattern Control: Optimized signal distribution across the entire frequency range for enhanced reception.
Future-Proof Technology: Covers the 450 MHz LTE band for long-range communication and the 4.2 GHz 5G band for high-speed connectivity.
Global Deployment: Designed for use worldwide, ensuring seamless operation across multiple network providers.
Marine-Grade Durability: Engineered for harsh marine environments, providing long-lasting performance in extreme conditions.
Patented Feed Network: Utilizes multiple dipoles and an advanced configuration for optimal signal stability.

The OMNI-402-5G is a future-proof, high-performance marine antenna, delivering ultra-wideband connectivity and 2×2 MIMO support for uninterrupted network performance in offshore and coastal environments.

Print Friendly, PDF & Email

Ideal Applications

  • Marine applications: Yachts / Boats / Ferries
  • Enhanced 5G/LTE reception
  • Poor data signal reception
  • Improve data transmission connection reliability & stability
  • Wi-Fi applications

Technical Specifications for OMNI-402-5G

Additional information

Industry (Application)

Technology

,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

, ,

Cellular Ports

Accessories

Product Options/Variants for OMNI-402-5G

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0402-V2-01 SMA (m) Twin HDF-195 / 2m White

VSWR & Gain

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Advantech
Celerway
Cradlepoint
Digi
Robustel
Teltonika

Technical Drawing

FAQ's & Articles

No articles available currently.

Downloadable Files

High Resolution Images

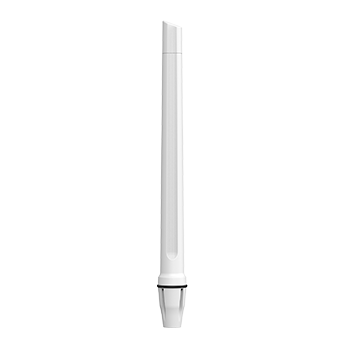

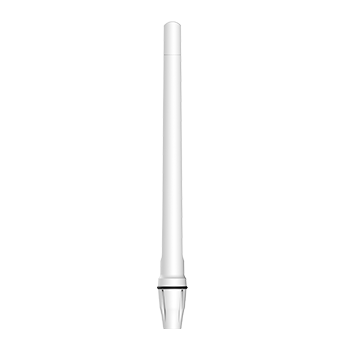

OMNI-402-5G Omni-Directional Antenna Feature Image OMNI-402-5G Omni-Directional Antenna Front View OMNI-402-5G Omni-Directional Antenna Back View OMNI-402-5G Omni-Directional Antenna Side View Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0402-V2-01 EAN: 6009710927113 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.72kg
3.79lbs		 Packaged Dimensions: 704 x 147x 100 mm
27.72 x 5.79 x 3.94 inch		 Master Box QTY: 10 Master Box Weight: 18.1kg
39.90lbs		 Master Box Dimensions: 350 x 560 x 770 mm
13.78 x 22.05 x 30.32 inch		 Country of Origin: CN
SKU A-OMNI-0402-V2-01
EAN 6009710927113
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.72kg
3.79lbs
Packaged Dimensions 704 x 147x 100 mm
27.72 x 5.79 x 3.94 inch
Master Box QTY 10
Master Box Weight 18.1kg
39.90lbs
Master Box Dimensions 350 x 560 x 770 mm
13.78 x 22.05 x 30.32 inch
Country of Origin CN
