OMNI-403

The Barnacle Enclosure
Omni-Directional Marine and Coastal LTE Antenna
617 - 2700 MHz; 5dBi
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures.
POYNTING antennas ensure reliable connectivity for small yachts, providing seamless communication and internet access for marine and coastal adventures.
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures.
POYNTING antennas provide reliable connectivity for small yachts, ensuring seamless communication and internet access for marine and coastal adventures.
POYNTING antennas ensure reliable connectivity for small speedboats, providing seamless communication and internet access for marine and coastal adventures.
POYNTING antennas ensure reliable connectivity for small speedboats, providing seamless communication and internet access for marine and coastal adventures.
617-2700 MHzview details below
5dBi±22km/14mi coverage*
Omni-Directional
2.4-2.5 GHz
-40°C to +80°C
IP69K

Key Features

  • Marine quality, low profile, and omni-directional LTE antenna
  • Suitable for 5G deployment for up to 2700 MHz
  • Robust and all-weather proof for harsh conditions at sea
  • Easy mounting with feed through a standard 1-inch marine adapter bracket included
  • Various marine grade 316 stainless steel mounting brackets available optionally
  • UV and saltwater protected against tempestuous weather conditions
  • High pressure water and dust ingress protected enclosure (IP69K)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0403-V1-01
A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Featured Image
A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Back View
A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Front View
A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Side View
  1. A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Featured Image
  2. A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Back View
  3. A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Front View
  4. A-OMNI-0403-V2-01,Omni-Directional Marine and Coastal LTE Antenna,LTE Marine Antenna Side View
Compact Wideband LTE Omni-Directional Marine Antenna

The OMNI-403 is a high-performance omni-directional LTE antenna, designed specifically for marine and coastal environments. Featuring a compact radome and wideband coverage across all LTE frequencies, this antenna ensures balanced gain and enhanced performance, including multi-carrier aggregation (CA) support. Its rugged construction and marine-grade mounting compatibility make it an ideal solution for reliable connectivity in offshore conditions.

Wideband LTE Coverage: Supports all contemporary LTE frequencies, ensuring reliable global connectivity.
5G Compatibility: Operates on all 5G networks up to 2700 MHz, providing future-ready connectivity.
Compact Marine-Optimised Design: Smaller profile radome enables seamless integration into marine and coastal environments.
Enhanced Performance with Multi-Carrier Aggregation (CA): Improves signal reliability and data throughput across all supported bands.
Superior Pattern Control: Ensures stable and consistent signal reception across the entire frequency range.
Patented Feed Network: Utilizes multiple dipoles and an advanced feed design for optimal performance.
Easy Marine Installation: Equipped with a standard 1-inch (14 TPI) marine mount connector for simple attachment to most standard marine fittings.
Built for Harsh Environments: Engineered to withstand extreme marine conditions, ensuring durability and long-lasting performance.

The OMNI-403 is a reliable and future-ready LTE antenna, delivering high-performance connectivity for vessels, offshore platforms, and other maritime applications. With its compact design, superior pattern control, and rugged build, it is the ideal choice for marine deployments.

Ideal Applications

  • Marine applications / Yachts / Boats / Ferries
  • Enhanced LTE reception
  • IoT and M2M applications
  • Areas with poor data signal reception
  • Improve data transmission connection reliability & stability

Technical Specifications for OMNI-403

Additional information

Industry (Application)

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

Connectors

MIMO

Polarisation

Environmental

, ,

Cellular Ports

Accessories

Product Options/Variants for OMNI-403

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0403-V1-01 N-Type (f) N/A / N/A White

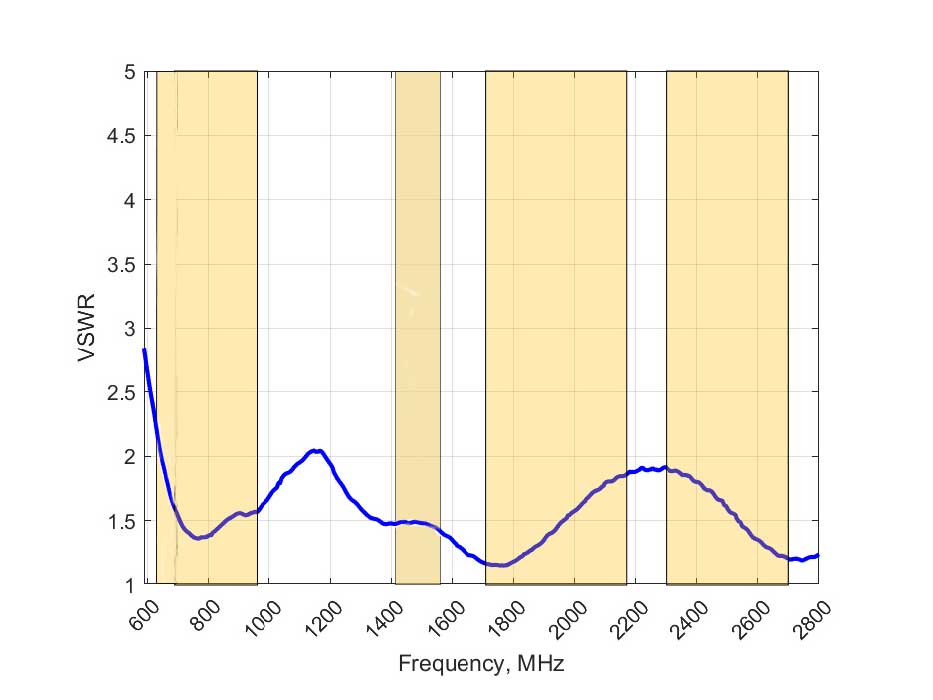

VSWR & Gain

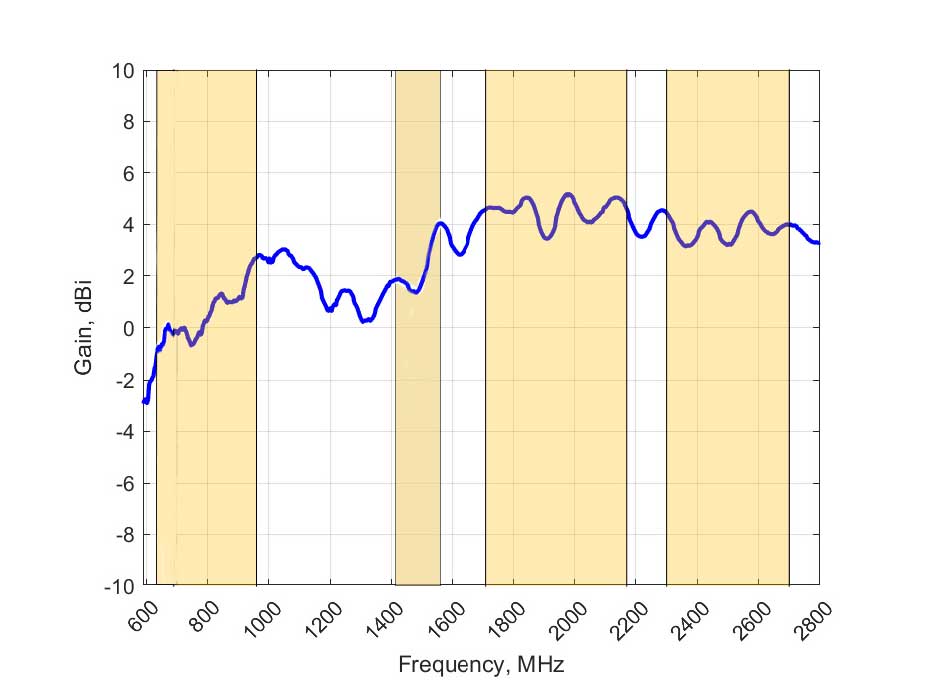

Gain (excluding Cable Loss)

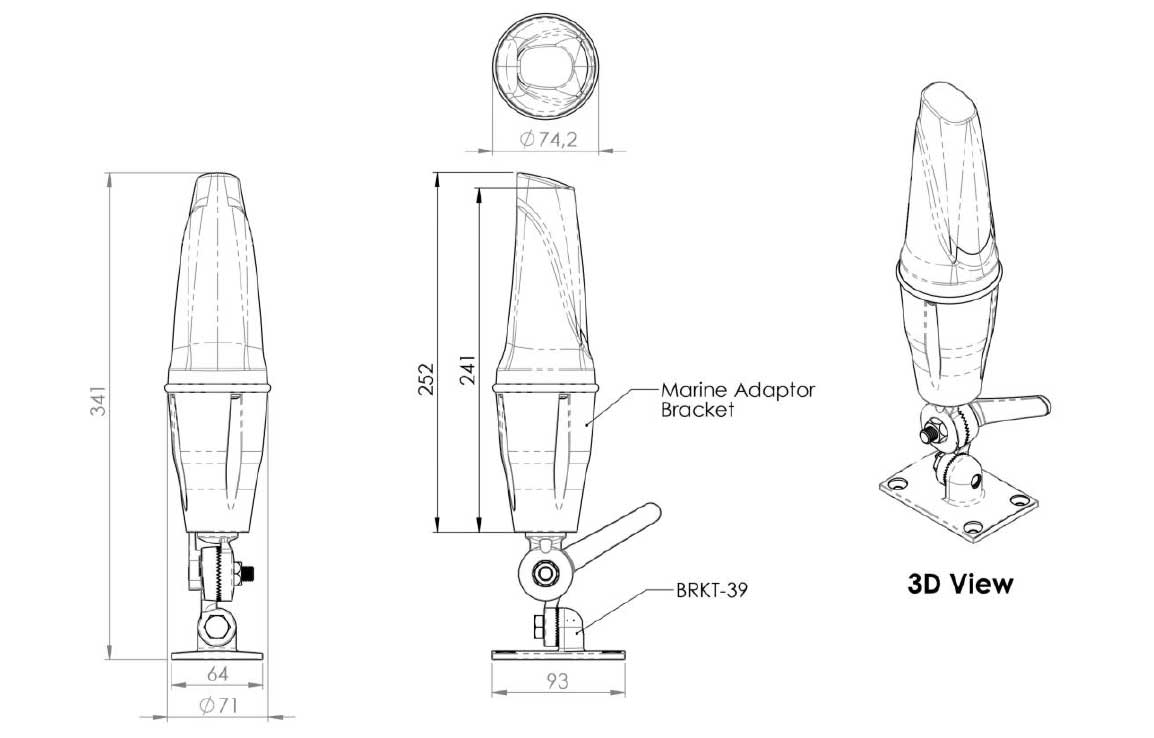

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-OMNI-0403-V1-01 LTE Marine Antenna Feature Image A-OMNI-0403-V1-01 LTE Marine Antenna Back View A-OMNI-0403-V1-01 LTE Marine Antenna Front View A-OMNI-0403-V1-01 LTE Marine Antenna Side View Web Images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0403-V1-01 EAN: 6009710920633 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.5kg
1.1lbs		 Packaged Dimensions: 288 x 97 x 97 mm
11.34 x 3.82 x 3.82 inch		 Master Box QTY: 40 Master Box Weight: 21.55kg
47.51lbs		 Master Box Dimensions: 400 x 500 x 610 mm
15.75 x 19.67 x 24.02 inch		 Country of Origin: CN
SKU A-OMNI-0403-V1-01
EAN 6009710920633
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.5kg
1.1lbs
Packaged Dimensions 288 x 97 x 97 mm
11.34 x 3.82 x 3.82 inch
Master Box QTY 40
Master Box Weight 21.55kg
47.51lbs
Master Box Dimensions 400 x 500 x 610 mm
15.75 x 19.67 x 24.02 inch
Country of Origin CN
