OMNI-214

The Adder Enclosure
Omni-Directional, 4x4 MIMO 5G/LTE Antenna
617 - 3800 MHz, 3.5dBi
POYNTING antennas ensure reliable connectivity in urban environments, providing seamless internet access for city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small and large open office spaces in urban commercial environments, ensuring seamless communication and data access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural farming, ensuring seamless communication between homes, silos, warehouses, and smart agricultural operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas enable reliable IoT connectivity for smart farming, ensuring seamless communication, automation, and real-time data access for precision agriculture. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for urban and rural estates, providing seamless communication and internet access for residential and business applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-3800 MHzview details below
3.5dBi±18km/11mi coverage*
Omni-Directional
4×4 MIMO
IP65Dust-tight & Water-resistant
-40°C to +80°C

Key Features

  • Ultra-wideband, omni-directional antenna
  • 4x4 MIMO capability for improved performance
  • Covers contemporary LTE/5G bands from 617 to 3800 MHz
  • Robust, dust and weather-resistant enclosure design (IP65)
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0214-V1-01
A-OMNI-0214-V2-01,Omni-Directional, 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Antenna Featured Image

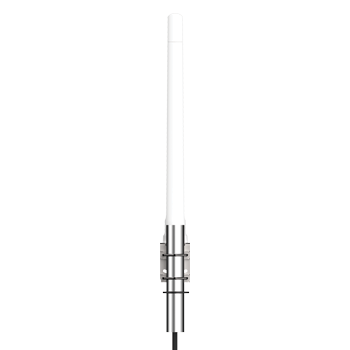

A-OMNI-0214-V2-01,Omni-Directional, 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Antenna Back View

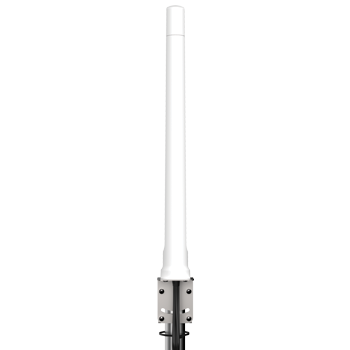

A-OMNI-0214-V2-01,Omni-Directional, 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Antenna Front View

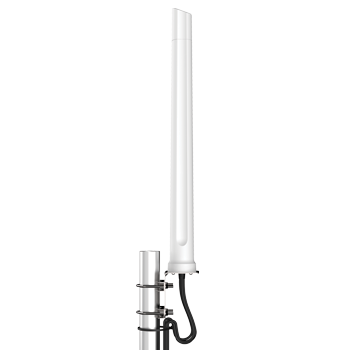

A-OMNI-0214-V2-01,Omni-Directional, 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Antenna Side View
Ultra-Wideband 4x4 MIMO Omni-Directional Antenna

The OMNI-214 is a high-performance ultra-wideband antenna, covering all contemporary LTE and 5G frequency bands from 617 to 3800 MHz. With 4×4 MIMO capability, achieved through vertically separated radiating elements within a single radome, this antenna ensures superior pattern control across the entire frequency range. Designed for urban and commercial applications, the OMNI-214 provides reliable signal reception worldwide and is future-proof for emerging network technologies.

Ultra-Wideband Frequency Coverage: Supports 617 to 3800 MHz, covering all LTE and 5G bands.
4×4 MIMO Capability: Utilizes vertically separated radiating elements to enhance network performance and data throughput.
Superior Pattern Control: Ensures stable omni-directional signal distribution for consistent connectivity.
Future-Proof Design: Covers LTE Band 71 (617 to 698 MHz) and CBRS bands (3400 to 3800 MHz) for inland and commercial deployments.
Reliable Global Connectivity: Guarantees strong signal reception in urban, industrial, and commercial environments.
IP65 Protection Rating: Resistant to dust and water ingress, making it ideal for outdoor urban installations.

The OMNI-214 is a future-ready, high-performance antenna, ensuring robust LTE and 5G connectivity for urban and commercial applications requiring stable, high-speed data transmission.

Print Friendly, PDF & Email

Ideal Applications

  • Enhanced LTE/4G and 5G reception
  • Increase system transmission reliability
  • High-end industrial grade router applications
  • Industrial and commercial LTE/5G deployment
  • Agricultural and farming LTE/5G data distribution

Technical Specifications for OMNI-214

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Product Options/Variants for OMNI-214

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0214-V1-01 SMA (m) HDF-195 / 2m White

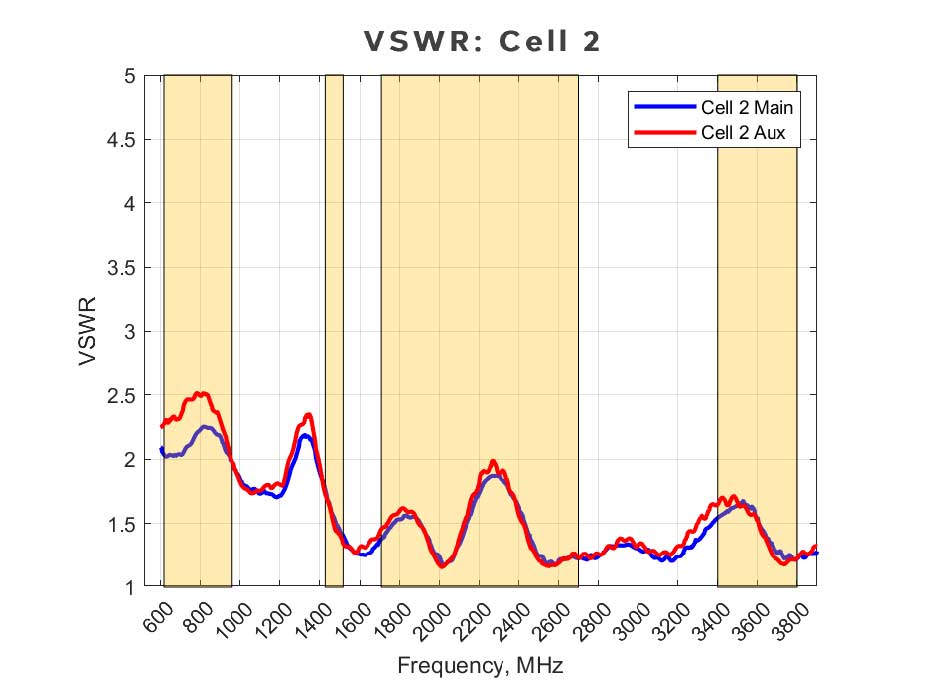

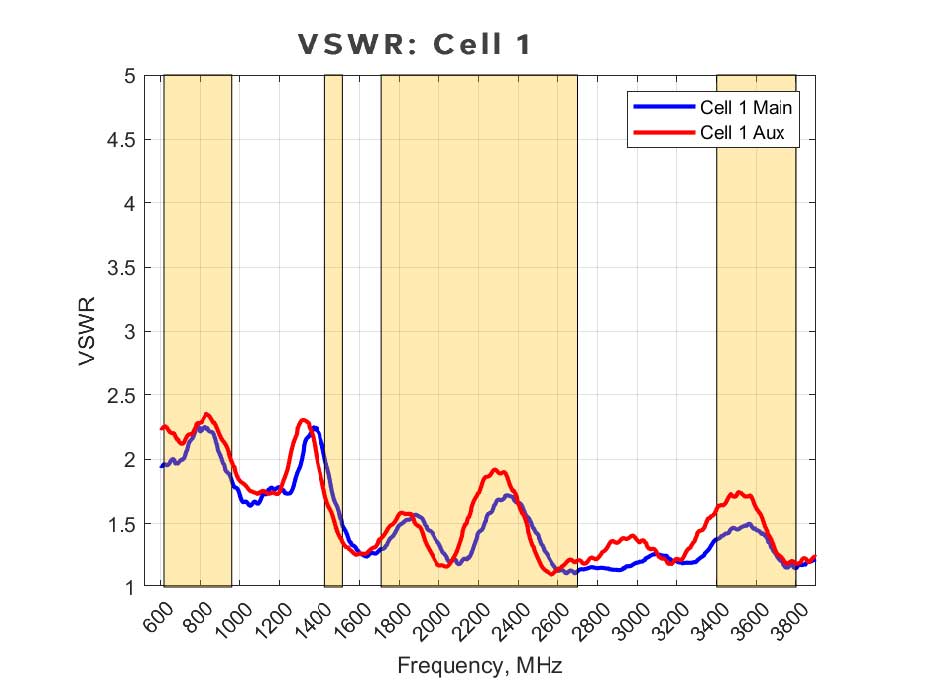

VSWR & Gain

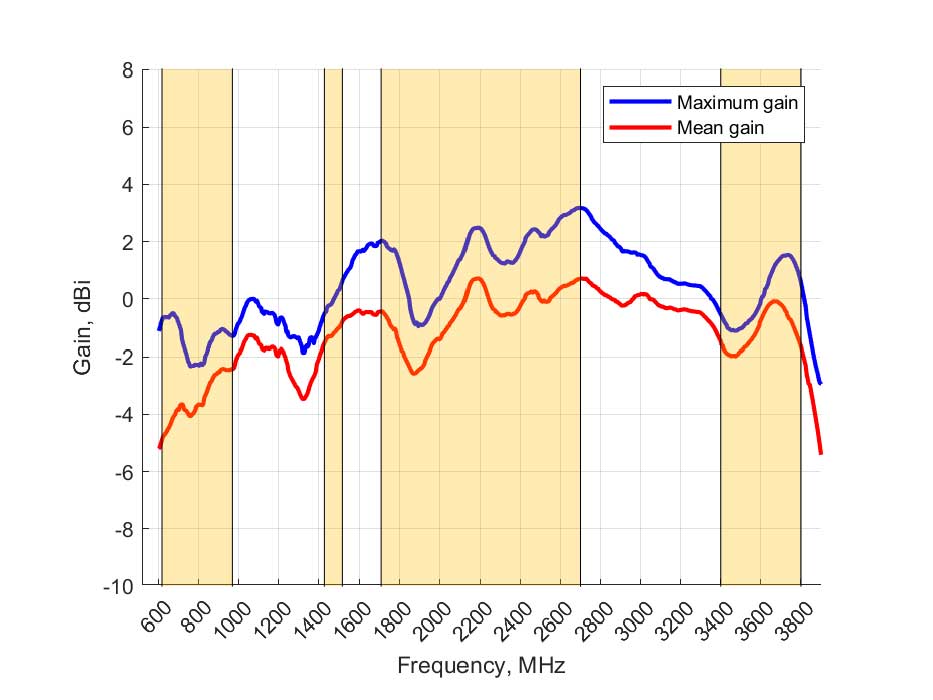

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Cisco
Cradlepoint
Digi
InHand Networks
Milesight
Peplink
Robustel

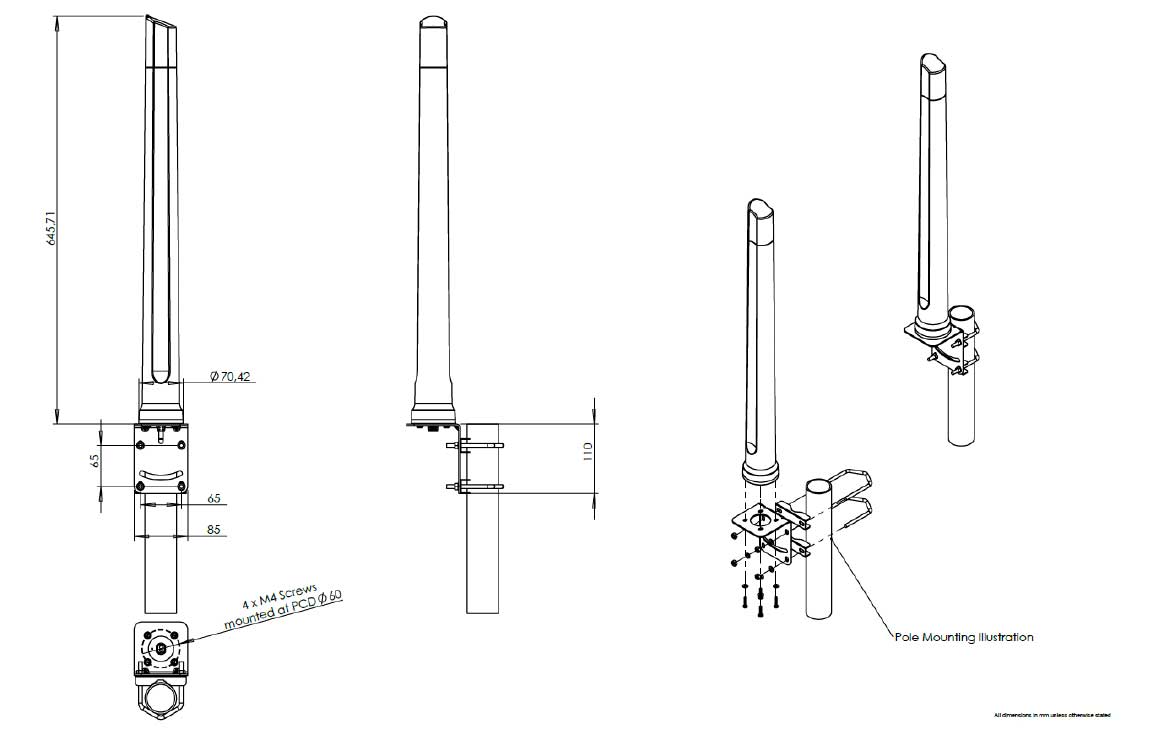

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-OMNI-0214-V1-01-4x4-MIMO-5G-LTE-Antenna Feature Image A-OMNI-0214-V1-01-4x4-MIMO-5G-LTE-Antenna Back View A-OMNI-0214-V1-01-4x4-MIMO-5G-LTE-Antenna Front View A-OMNI-0214-V1-01-4x4-MIMO-5G-LTE-Antenna Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0214-V1-01 EAN: 6009710923665 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.60kg
3.53lbs		 Packaged Dimensions: 690 x 95 x 96 mm
27.17 x 3.74 x 3.78 inch		 Master Box QTY: 15 Master Box Weight: 25.70kg
56.66lbs		 Master Box Dimensions: 560 x 350 x 770 mm
15.75 x 13.78 x 30.32 inch		 Country of Origin: CN
SKU A-OMNI-0214-V1-01
EAN 6009710923665
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.60kg
3.53lbs
Packaged Dimensions 690 x 95 x 96 mm
27.17 x 3.74 x 3.78 inch
Master Box QTY 15
Master Box Weight 25.70kg
56.66lbs
Master Box Dimensions 560 x 350 x 770 mm
15.75 x 13.78 x 30.32 inch
Country of Origin CN
