OMNI-297

The Rhyno Enclosure
Omni-Directional, Wideband 5G/LTE Rhyno Antenna
617 - 3800 MHz, 2dBi
POYNTING antennas enable reliable IoT connectivity for open-pit mining, ensuring seamless communication and automation for enhanced operational efficiency.
POYNTING antennas ensure reliable connectivity for open-pit mining trucks, enabling seamless communication and data transmission for coal transportation in rugged environments.
POYNTING antennas provide reliable IoT connectivity for mining operations, ensuring seamless communication, automation, and real-time data monitoring in challenging environments.
POYNTING antennas provide reliable connectivity for open-pit mining operations, ensuring seamless communication between scrapers, pickers, and ground-loosening vehicles for efficient extraction.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments.
POYNTING antennas enable reliable IoT connectivity for underground mining operations, ensuring seamless communication, automation, and data transmission in challenging environments.
617-960 MHz; 1710-2700 MHz;3400-3800 MHzview details below
2dBi±15km/9mi coverage*
Omni-Directional
IP69K
Fire Resistant

Key Features

  • Medium gain, omni directional antenna
  • Suitable for 5G deployment up to 3800 MHz
  • Compatible with 4G/3G/2G technologies, supports 2.4 GHz Wi-Fi
  • Ideal for IoT and M2M applications
  • Robust and low-profile design
  • High pressure water and dust ingress protected enclosure (IP69K)
Supported Connectivity Technologies


Datasheet Options
POYNTING Antenna Solution Finder
A-OMNI-0297-V1-01
A-OMNI-0297-V2-01,Omni-Directional, Wideband 5G/LTE Rhyno Antenna,Wideband LTE Featured Image

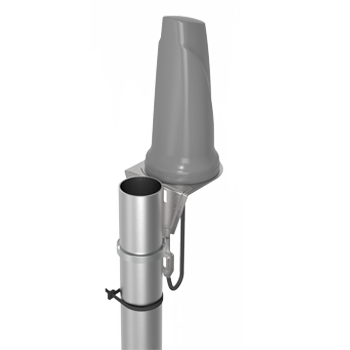

A-OMNI-0297-V2-01,Omni-Directional, Wideband 5G/LTE Rhyno Antenna,Wideband LTE Back View
A-OMNI-0297-V2-01,Omni-Directional, Wideband 5G/LTE Rhyno Antenna,Wideband LTE Front View
A-OMNI-0297-V2-01,Omni-Directional, Wideband 5G/LTE Rhyno Antenna,Wideband LTE Side View
Wideband Omni-Directional Cellular Antenna for 5G, LTE, M2M & IoT

The OMNI-297 is a high-performance wideband cellular antenna, part of Poynting’s new “Rhyno” antenna range. Operating from 617 to 3800 MHz, this antenna covers all contemporary 5G and LTE frequency bands, ensuring reliable and consistent connectivity. Designed for superior pattern control across the entire frequency range, the OMNI-297 delivers stable, omni-directional coverage, making it an exceptional choice for its size.

Wideband Cellular Coverage: Supports 617 – 3800 MHz, ensuring compatibility with global 5G and LTE networks.
Optimized for Fixed Installations: Ideal for stable, long-term deployment in any cellular network environment.
Superior Pattern Control: Provides consistent gain across the entire frequency range, enhancing signal stability.
Multi-Carrier Aggregation (CA) Support: Improves LTE performance by enabling multiple frequency band connections.
Ideal for M2M & IoT Applications: Designed for use in Machine-to-Machine (M2M) and Internet of Things (IoT) applications communicating over GSM networks (GPRS/EDGE/3G/HSPA/LTE).
Omni-Directional Design: Ensures 360° signal reception, optimizing connectivity across different network providers.

The OMNI-297 is a future-proof cellular antenna, offering wideband coverage, superior pattern control, and robust performance for 5G, LTE, M2M, and IoT applications in fixed installations.

Ideal Applications

  • Machine to Machine (M2M) and Internet of Things (IoT)
  • Poor data signal reception (indoor or outdoor)
  • Improves slow data transmission connection
  • Increases system transmission reliability
  • High-end industrial grade router applications
  • Improves reception for mobile offices

Technical Specifications for OMNI-297

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Product Options/Variants for OMNI-297

SKU Connector Type COAX Cable Type / Length Colour
A-OMNI-0297-V1-01 SMA (m) RG-58 / 0.6m Grey

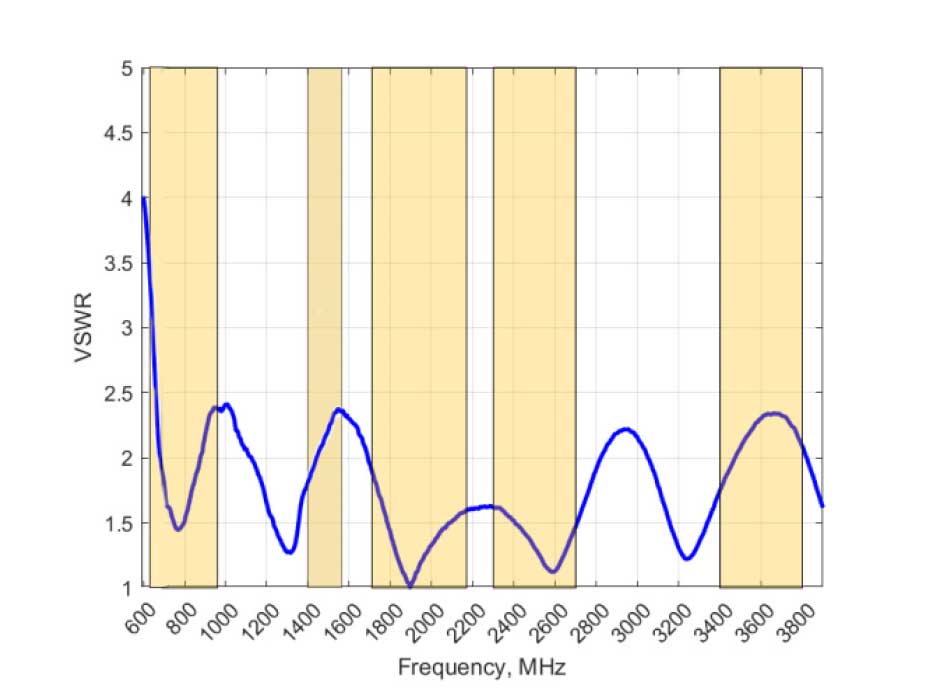

VSWR & Gain

Gain (excluding Cable Loss)

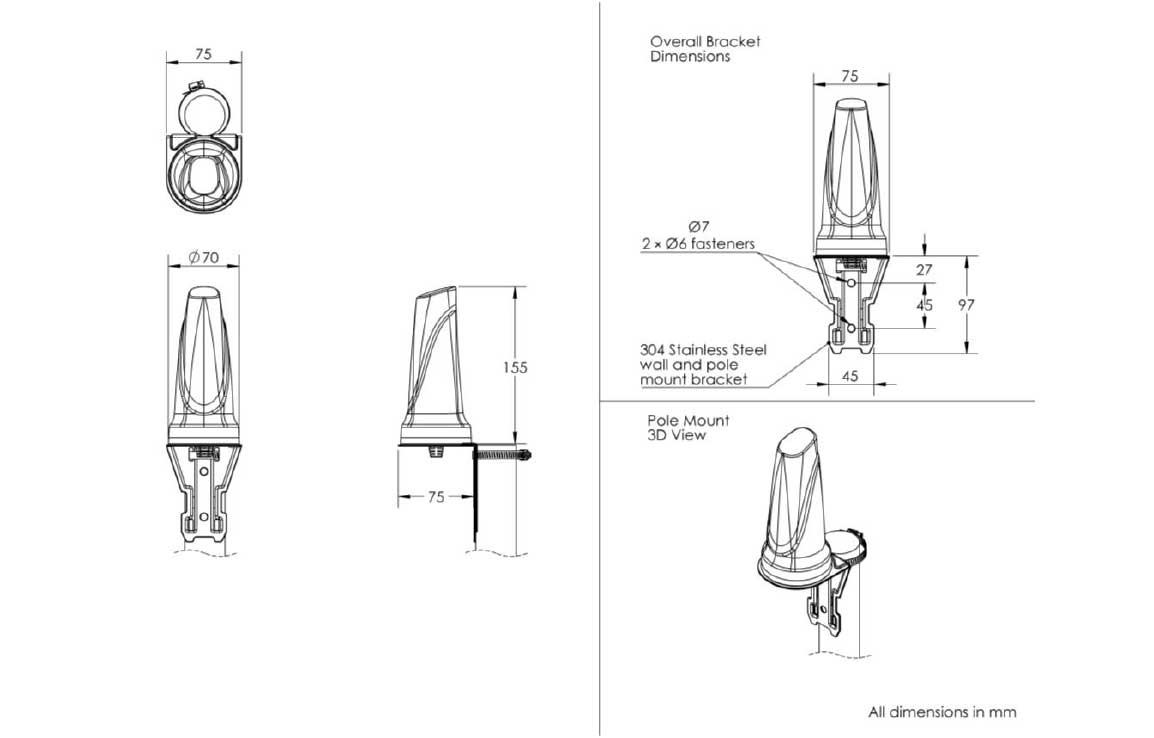

Technical Drawing

FAQ's & Articles

Downloadable Files

High Resolution Images

A-OMNI-297-V1-01 Feature Image A-OMNI-297-V1-01 Back View A-OMNI-297-V1-01 Front View A-OMNI-297-V1-01 Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-OMNI-0297-V1-01 EAN: 6009710920909 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 0.4kg
0.88lbs		 Packaged Dimensions: 240 x 100 x 85 mm
9.45 x 3.94 x 3.35 inch		 Master Box QTY: 50 Master Box Weight: 20.5kg
45.19lbs		 Master Box Dimensions: 520 x 495 x 400 mm
20.47 x 19.49 x 15.75lbs		 Country of Origin: CN
SKU A-OMNI-0297-V1-01
EAN 6009710920909
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 0.4kg
0.88lbs
Packaged Dimensions 240 x 100 x 85 mm
9.45 x 3.94 x 3.35 inch
Master Box QTY 50
Master Box Weight 20.5kg
45.19lbs
Master Box Dimensions 520 x 495 x 400 mm
20.47 x 19.49 x 15.75lbs
Country of Origin CN
