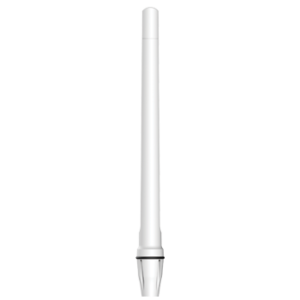

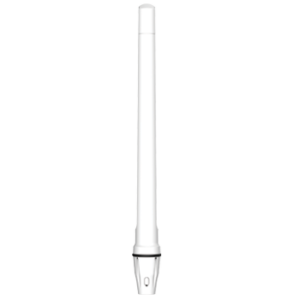

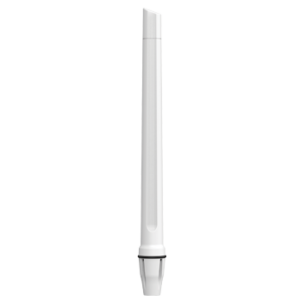

The OMNI-414 is a high-performance omni-directional antenna designed to cover all contemporary LTE and 5G frequency bands. With ultra-wideband coverage from 617 to 3800 MHz, this antenna ensures strong and stable connectivity for marine and coastal applications. Its 4×4 MIMO capability and superior pattern control make it an ideal solution for demanding environments where reliable communication is critical.
Ultra-Wideband Frequency Coverage: Operates from 617 to 3800 MHz, supporting LTE, 5G, and future network expansions.
4×4 MIMO Capability: Features vertically separated radiating elements to enhance data throughput and signal reliability.
Omni-Directional Design: Provides 360° coverage, ensuring consistent connectivity in marine and offshore environments.
Superior Pattern Control: Optimized design for stable signal reception across the entire frequency range.
Future-Proof Technology: Covers LTE Band 71 (617 – 698 MHz) and CBRS bands (3400 – 3800 MHz) for evolving network applications.
Rugged & Marine-Grade Durability: Built to withstand extreme weather conditions with an IP68 rating for full dust and water protection.
Saltwater & UV Protection: Constructed with a UV-stable ASA radome for resistance to highly corrosive marine environments.
Global Deployment: Designed for use worldwide, ensuring seamless operation across multiple network providers.
The OMNI-414 is a future-proof, high-performance marine antenna, delivering ultra-wideband connectivity and 4×4 MIMO support for optimal data transmission in the most challenging conditions at sea.
Industry (Application) | |
---|---|
Technology | |
Cellular Freq. Range | |
Frequency Band | 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz |
5G Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
LTE/4G Bands | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
Wi-Fi Standard | |
Product Configuration | <a href="/product-tag/4g/" target="_blank" title="View all Products with 4G Connec |

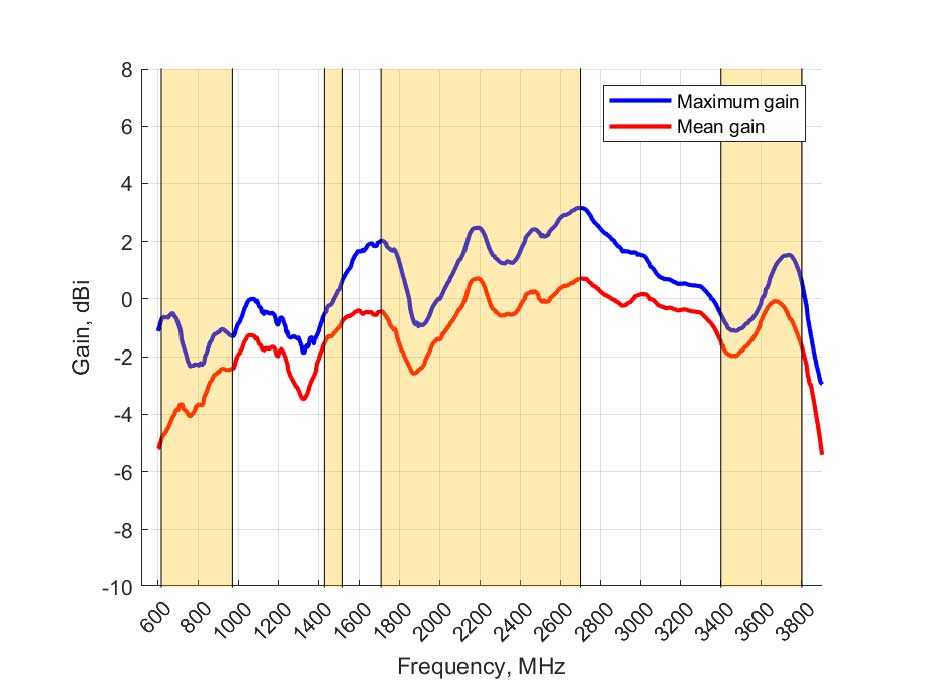

Gain | |
Directionality | |
Mounting Type | |
Connectors | |
MIMO | |
Polarisation | |
Environmental | |
Cellular Ports | |
Accessories |
SKU | Connector Type | COAX Cable Type / Length | Colour |
---|---|---|---|
A-OMNI-0414-V1-01 | SMA (m) | HDF-195 / 2m | White |
SKU | A-OMNI-0414-V1-01 | EAN: 6009710923504 | HS Code: 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
Packaged Weight: 1.90kg 4.19lbs |
Packaged Dimensions: 705 x 150 x 100 mm 27.76 x 5.91 x 3.94 inch |
Master Box QTY: 10 | Master Box Weight: 20.57kg 45.35lbs |
Master Box Dimensions: 560 x 350 x 770 mm 22.05 x 13.78 x 30.32 inch |
Country of Origin: CN |
---|---|---|---|---|---|---|---|---|---|
SKU | A-OMNI-0414-V1-01 | ||||||||
EAN | 6009710923504 | ||||||||
HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) | ||||||||
Packaged Weight | 1.90kg 4.19lbs | ||||||||
Packaged Dimensions | 705 x 150 x 100 mm 27.76 x 5.91 x 3.94 inch | ||||||||
Master Box QTY | 10 | ||||||||
Master Box Weight | 20.57kg 45.35lbs | ||||||||
Master Box Dimensions | 560 x 350 x 770 mm 22.05 x 13.78 x 30.32 inch | ||||||||
Country of Origin | CN |
