XPOL-24

The Lion Enclosure
4x4 MIMO High-Performance Antenna for 5G/LTE
617 - 960 MHz & 1710 - 4200 MHz, 11dBi; 4x4 MIMO
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for commercial card machines, iot, enabling secure and seamless transactions in retail and business environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas deliver reliable connectivity for offices in the sky, ensuring seamless internet access and communication in urban city environments. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for small and large open office spaces in urban commercial environments, ensuring seamless communication and data access. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas provide reliable connectivity for rural farming, ensuring seamless communication between silos, warehouses, and smart agricultural operations. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
POYNTING antennas ensure reliable connectivity for farmers in the field, enabling seamless communication and real-time data access on mobile devices for smart farming. Images are used for visual representation purposes only. These images may not be downloaded, copied, or used in any form without prior permission.
617-4200 MHzview details below
11dBi±43km/27mi coverage*
Directional
4×4 MIMO~400 Mbps (5G)*
IP65Water Resistant
-40°C to +80°C

Key Features

  • Exceptional high-performance antenna over main 5G/LTE bands
  • New advanced metamaterial technology for high performance
  • Wideband 4x4 MIMO 5G/LTE antenna from 617 to 4200 MHz
  • Four cross-polarised antennas within a single enclosure
  • Weather, dust and vandal resistant enclosure with IP65 raing
Supported Connectivity Technologies



Datasheet Options
POYNTING Antenna Solution Finder
A-XPOL-0024-V1

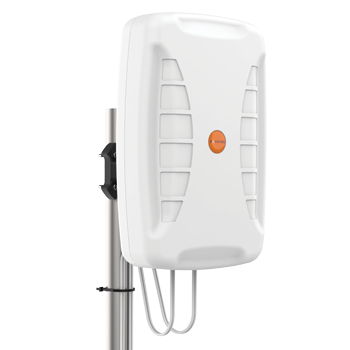

A-XPOL-0024-V1,X-Polarised, Uni-Directional 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Directional 5G Featured Image

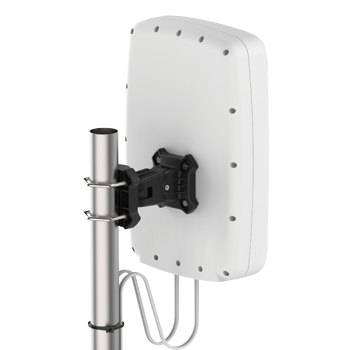

A-XPOL-0024-V1,X-Polarised, Uni-Directional 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Directional 5G Back View

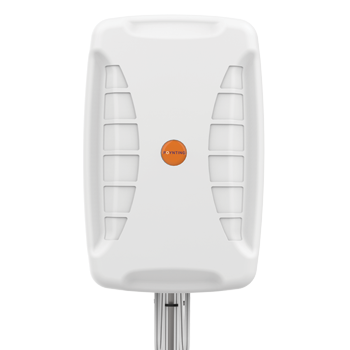

A-XPOL-0024-V1,X-Polarised, Uni-Directional 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Directional 5G Front View

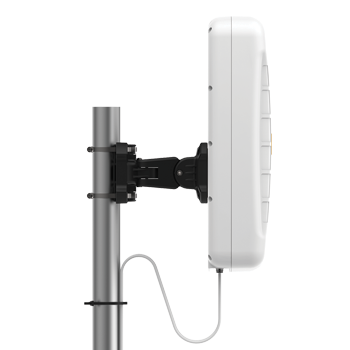

A-XPOL-0024-V1,X-Polarised, Uni-Directional 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Directional 5G Side View
The XPOL-24 is a 4x4 MIMO High-Performance Antenna for 5G/LTE Networks

The XPOL-24 is engineered with cutting-edge metamaterial technology and an Artificial Magnetic Conductor (AMC) for superior bandwidth and gain. This ensures exceptional performance for both current and future 5G/LTE networks.

Wideband Frequency Coverage: 617–4200 MHz, supporting a variety of bands:

  • 617–960 MHz
  • 1710–2170 MHz
  • 2300–2700 MHz
  • 3400–4200 MHz

4×4 MIMO Capability: Boosts connectivity and performance, ideal for Carrier Aggregation.


Peak Gain: Up to 11dBi, delivering reliable signal quality even in challenging environments.

The XPOL-24 is the go-to solution for demanding 5G/LTE deployments, ensuring robust and future-proof connectivity.

Print Friendly, PDF & Email

Ideal Applications

  • Telecommunications: Enhancing 5G/LTE network deployments.
  • Industrial IoT: Ensuring reliable connectivity for IoT devices.
  • Smart Cities: Supporting high-density urban networks.
  • Agriculture: Boosting connectivity in remote areas.
  • Transportation: Providing robust signal quality for vehicles and fleet systems.
  • Residential & Commercial: Optimising broadband services in suburban and urban locations.

Technical Specifications for XPOL-24

Additional information

Industry (Application)

, ,

Technology

Cellular Freq. Range

Frequency Band

, , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

,

Connectors

MIMO

Polarisation

Environmental

LTE Ports

Accessories

Product Options/Variants for XPOL-24

SKU Connector Type COAX Cable Type / Length Colour
A-XPOL-0024-V1-01 SMA (m) Twin HDF-195 / 5m White
A-XPOL-0024-V1-02 N-Type (f) N/A / N/A White

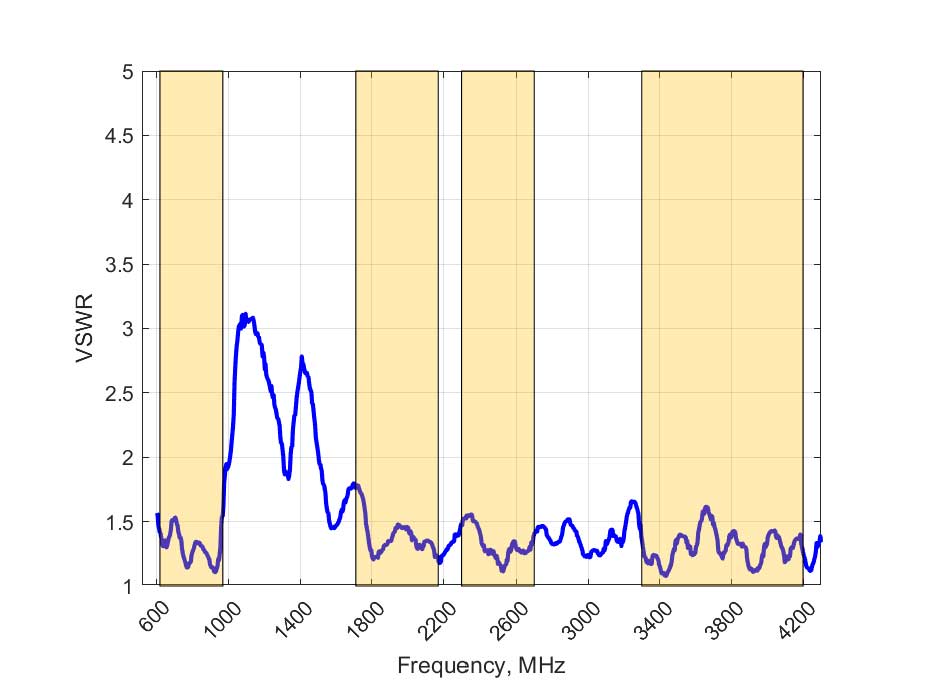

VSWR & Gain

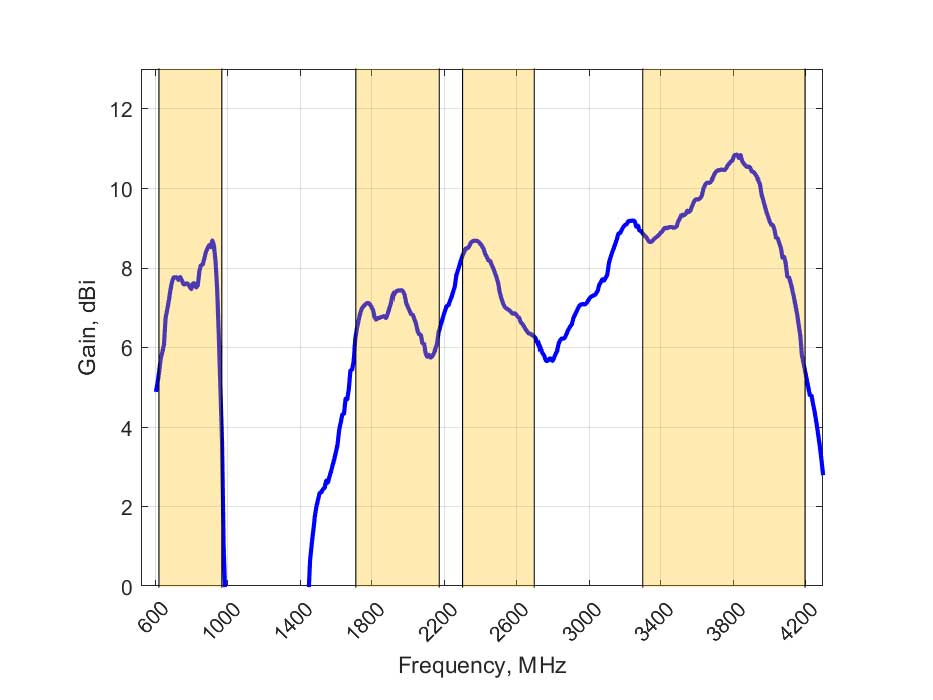

Gain (excluding Cable Loss)

Router Compatibilities

If you do not find your router brand or model below, you can use our POYNTING Antenna Solution Finder Tool to match it with the correct POYNTING antenna. Alternatively contact your closest partner for assistance.
Tip: Click on a model to view other POYNTING Antennas that are also compatible with that specific router.
Our database does not currently have a router that matches this antenna. You can use our POYNTING Antenna Solution Finder Tool to match it with the correct Poynting antenna. Alternatively contact your closest partner for assistance.
Cisco
InHand Networks
Peplink
Robustel

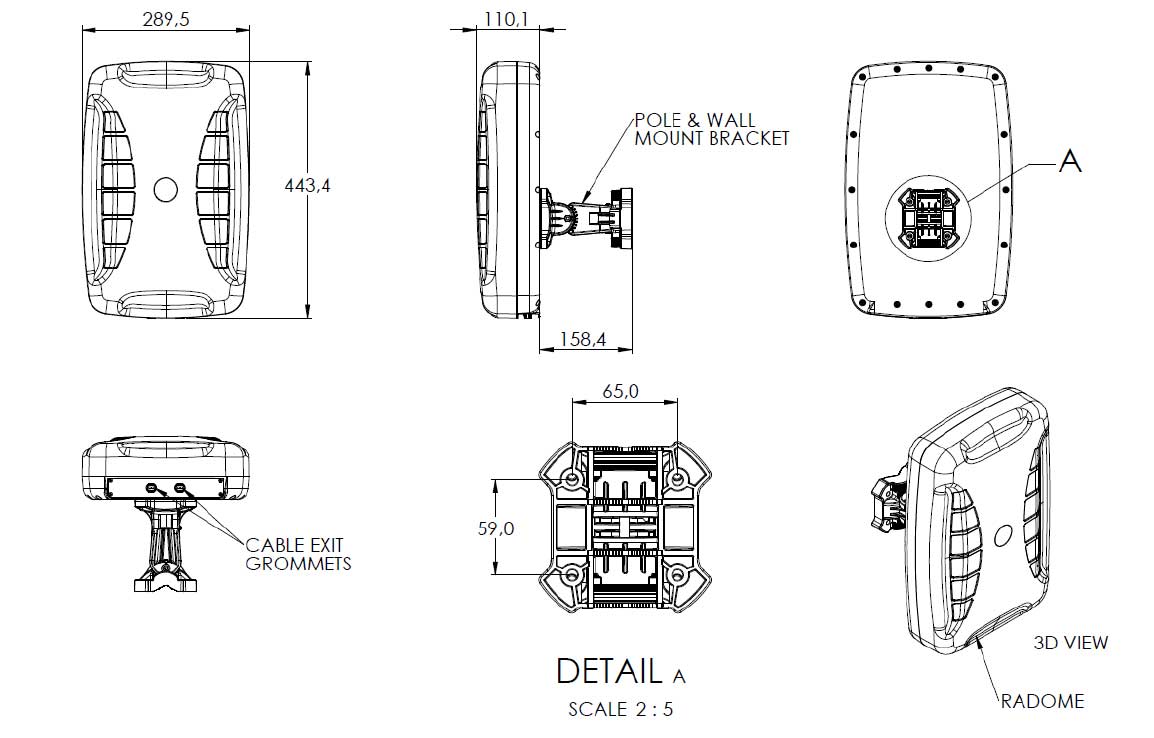

Technical Drawing

FAQ's & Articles

Downloadable Files

XPOL-24 Product Certificates

A-XPOL-0024-V1-01 Declaration of Conformity A-XPOL-0024-V1-02 Declaration of Conformity

High Resolution Images

A-XPOL-0024-V1-X-Polarised-Uni-Directional-4x4-MIMO-5G-LTE-Antenna-4x4-MIMO-Directional-5G Feature Image A-XPOL-0024-V1-X-Polarised-Uni-Directional-4x4-MIMO-5G-LTE-Antenna-4x4-MIMO-Directional-5G Back View A-XPOL-0024-V1-X-Polarised-Uni-Directional-4x4-MIMO-5G-LTE-Antenna-4x4-MIMO-Directional-5G Front View A-XPOL-0024-V1-X-Polarised-Uni-Directional-4x4-MIMO-5G-LTE-Antenna-4x4-MIMO-Directional-5G Side View Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-XPOL-0024-V1-01 EAN: 6009710024693 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 4.38kg
9.66lbs		 Packaged Dimensions: 508 x 419 x120 mm
20 x 16.50 x 4.72 inch		 Master Box QTY: 3 Master Box Weight: 14.45kg
31.86lbs		 Master Box Dimensions: 530 x 450 x 430 mm
20.87 x 17.72 x 16.93 inch		 Country of Origin: CN
SKU A-XPOL-0024-V1-02 EAN: 6009710925003 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 4.38kg
9.66lbs		 Packaged Dimensions: 508 x 419 x120 mm
20 x 16.50 x 4.72 inch		 Master Box QTY: 3 Master Box Weight: 14.45kg
31.86lbs		 Master Box Dimensions: 530 x 450 x 430 mm
20.87 x 17.72 x 16.93 inch		 Country of Origin: CN
SKU A-XPOL-0024-V1-01A-XPOL-0024-V1-02
EAN 60097100246936009710925003
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 4.38kg
9.66lbs		4.38kg
9.66lbs
Packaged Dimensions 508 x 419 x120 mm
20 x 16.50 x 4.72 inch		508 x 419 x120 mm
20 x 16.50 x 4.72 inch
Master Box QTY 33
Master Box Weight 14.45kg
31.86lbs		14.45kg
31.86lbs
Master Box Dimensions 530 x 450 x 430 mm
20.87 x 17.72 x 16.93 inch		530 x 450 x 430 mm
20.87 x 17.72 x 16.93 inch
Country of Origin CNCN
