MIMO-3-12

The Badger Enclosure
2-in-1 Transportation & Automotive Antenna
410 - 3800 MHz; 2X2 LTE (MIMO), 5.8dBi
POYNTING antennas provide reliable connectivity for rally cars, ensuring seamless communication and data transmission in transport and mobility applications.
POYNTING antennas provide reliable connectivity for small speedboats and yachts, ensuring seamless communication and internet access for marine and coastal adventures.
POYNTING antennas provide reliable IoT connectivity for urban environments, ensuring seamless communication, automation, and smart city applications.
POYNTING antennas provide reliable connectivity for RVs and motorhomes, ensuring seamless internet access for families traveling and camping in transport and mobility applications.
POYNTING antennas ensure reliable connectivity for small speedboats, providing seamless communication and internet access for marine and coastal adventures.
POYNTING antennas enable reliable IoT connectivity for industrial and commercial warehousing, ensuring seamless communication and automation for efficient inventory management.
410-3800 MHzview details below
LTE: 5.8dBi±36km/22mi coverage*
Omni-Directional
2×2 MIMO
IP69K
-40°C to +80°C
E-Mark

Key Features

  • 2-in-1 High performance multi frequency 2G/3G/4G/LTE/5G antenna
  • 2X2 MIMO LTE
  • Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
  • Robust and water-resistant antenna (IP 69K)
  • Ideal for transportation and marine use
  • Multi mounting options for easy installation
Supported Connectivity Technologies




Datasheet Options
POYNTING Antenna Solution Finder
A-MIMO-0003-V2-12
A-MIMO-0003-V2-12,2-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Featured Image

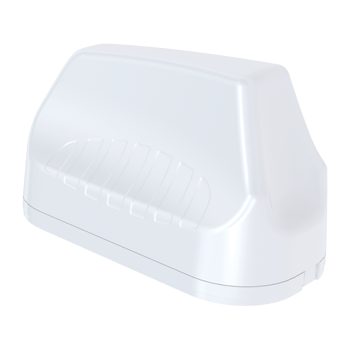

A-MIMO-0003-V2-12,2-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Back View

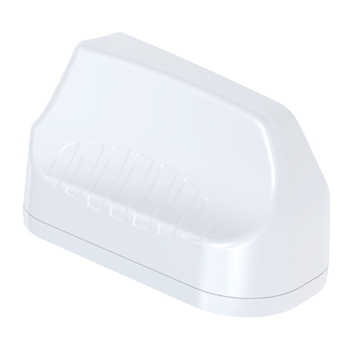

A-MIMO-0003-V2-12,2-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Front View

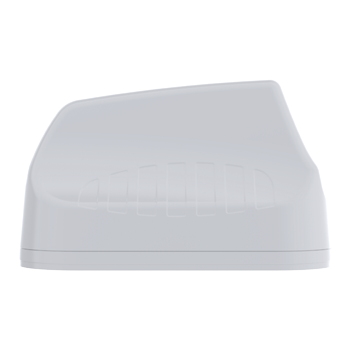

A-MIMO-0003-V2-12,2-in-1 Transportation & Automotive Antenna,LTE MIMO Antenna Side View
High-Performance 2-in-1 Multi-Frequency Antenna for 5G & LTE

The MIMO-3-12 is a high-performance 2-in-1 multi-frequency antenna designed for seamless 2G, 3G, 4G, and emerging 5G connectivity. Housed in a single enclosure, this antenna features two cellular MIMO elements covering 617 MHz to 2700 MHz, as well as the new 450 MHz and 3.5 GHz CBRS bands, ensuring compatibility with various international network operators.

Ultra-Wideband Cellular Coverage: Operates from 617 MHz to 3.8 GHz, supporting LTE and future 5G applications.
Advanced MIMO Technology: Provides enhanced signal strength, pattern diversity, and omnidirectional coverage.
Optimised for Transportation & Marine Use: Designed to meet the demanding requirements of commercial vehicles, marine, and industrial applications.
Futureproof Connectivity: Ensures long-term compatibility with evolving cellular networks and IoT applications.
Superior Radiation Performance: Engineered for excellent balance between omnidirectionality, diversity, and signal propagation.

The MIMO-3-12 is the ideal solution for transportation, marine, M2M, and IoT applications, offering exceptional performance, durability, and future-ready connectivity across a wide range of frequencies.

Ideal Applications

  • Transport broadband, automation and telemetry for buses, utility, trucks and public safety vehicles
  • Industrial factory automation, robotic machinery and other M2M systems telemetry
  • Farming & agricultural automation such as M2M & IoT
  • Broadband cellular distribution for marine / boats (inland and near coastal vessels)
  • Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)

Technical Specifications for MIMO-3-12

Additional information

Industry (Application)

,

Technology

,

Cellular Freq. Range

Frequency Band

, , , , , , , , , , , , , ,

5G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

LTE/4G Bands

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Wi-Fi Standard

Product Configuration

Gain

Directionality

Mounting Type

, ,

Connectors

MIMO

Polarisation

Environmental

Cellular Ports

Accessories

Product Options/Variants for MIMO-3-12

SKU Connector Type COAX Cable Type / Length Colour
A-MIMO-0003-V2-12 SMA (m) HDF-195 / 2m White

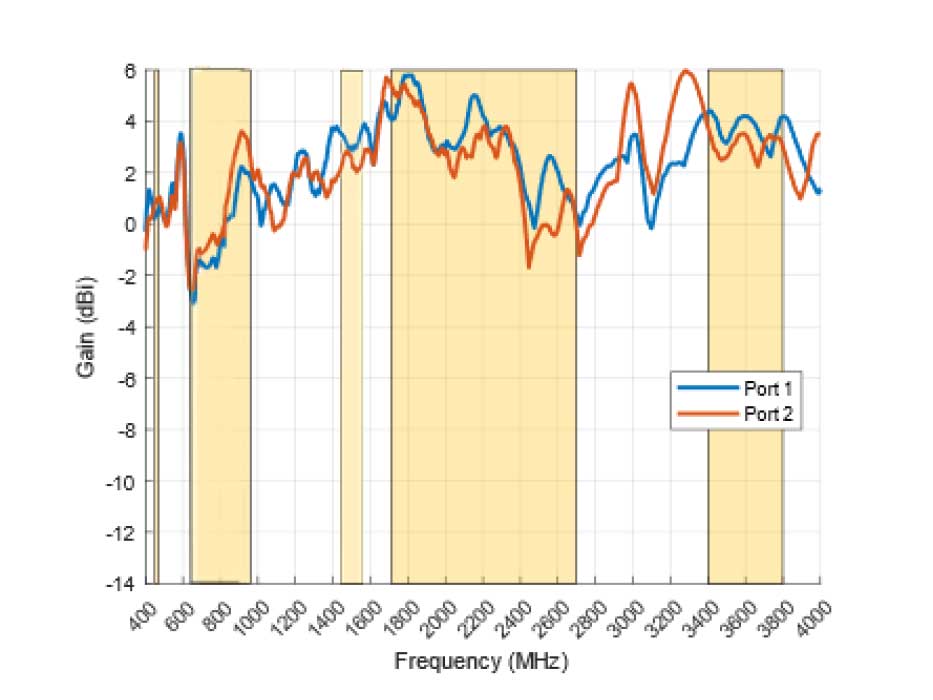

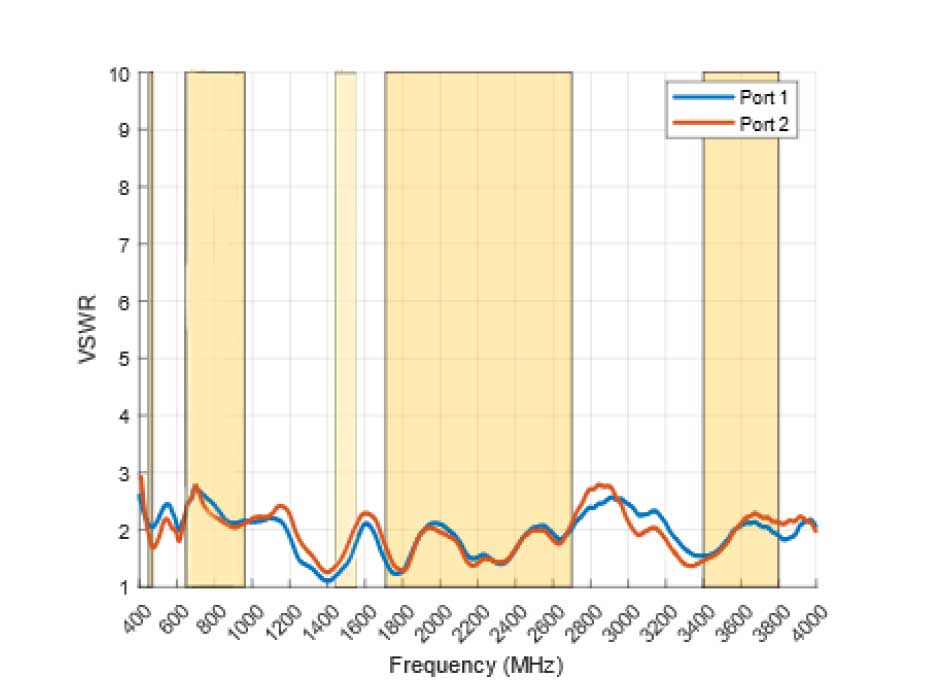

VSWR & Gain

Gain (excluding Cable Loss)

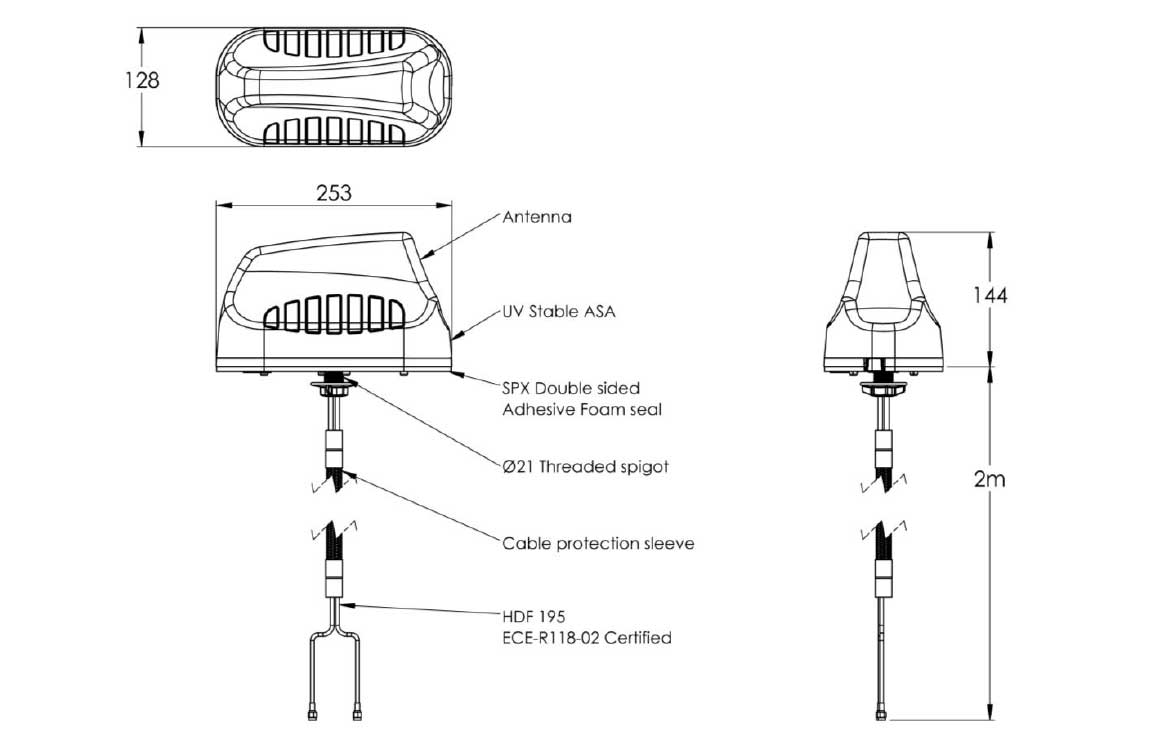

Technical Drawing

FAQ's & Articles

Downloadable Files

MIMO-3-12 Product Certificates

MIMO-3 E-Mark E1*10R06 Certificate

High Resolution Images

A-MIMO-0003-V2-12 LTE MIMO Antenna Feature Image A-MIMO-0003-V2-12 LTE MIMO Antenna Back View A-MIMO-0003-V2-12 LTE MIMO Antenna Front View A-MIMO-0003-V2-12 LTE MIMO Antenna Side View View Mounting Options Download website images (low resolution)

General Information (Not Product Specific)

View Our Downloads Page for High-Res Images and moreView all POYNTING Certifications and Declarations

Shipping Details

SKU A-MIMO-0003-V2-12 EAN: 6009710923689 HS Code: 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)		 Packaged Weight: 1.21kg
2.67lbs		 Packaged Dimensions: 265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch		 Master Box QTY: 10 Master Box Weight: 16.1kg
35.5lbs		 Master Box Dimensions: 1125 x 430 x 330mm
44.29 x 16.93 x 13 inch		 Country of Origin: CN
SKU A-MIMO-0003-V2-12
EAN 6009710923689
HS Code 8529.10.69 (EU)
8517.71.0000 (USA)
8529.10.90 (SA & Global)
Packaged Weight 1.21kg
2.67lbs
Packaged Dimensions 265 x 211 x 204 mm
10.43 x 8.31 x 8.03 inch
Master Box QTY 10
Master Box Weight 16.1kg
35.5lbs
Master Box Dimensions 1125 x 430 x 330mm
44.29 x 16.93 x 13 inch
Country of Origin CN
