POYNTNG Antenna Solution Finder
for Fixed Wireless Access

POYNTING Antenna Solution Finder
for Fixed Wireless Access

Your Questionaire selections below:

Questionnaire starts here:

Please select your Application Area

Please select your Application Area
  • Commercial & Industrial Antennas (9)
  • Farming & Agricultural Antennas (13)
  • Urban & Rural Cellular Antennas (18)

We recommend the following based on your selection:

1 - 18 of 18 products

Important Notice

Altough you have selection results in a SISO antenna, this antenna is most highly recommended antenna for your solution - there for you may purchase two(2) SISO antennas and install it on your 2/4 port router.
Contact Sales for support
B71
A-OMNI-0600-V2-01,Omni-Directional, 2X2 MIMO LTE Antenna,LTE MIMO Antenna Featured Image

OMNI-600-5G

Omni-Directional, 2X2 MIMO 5G/4G Antenna
Freq:
410 – 4200 MHz
Peak Gain:
6dBi
Pattern:
Omni-Directional
MIMO
2x2
Connectors/Ports:
SMA
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
Easy Installation
B71
A-EPNT-0002-V3-01,Cross-Polarised, Omni-Directional 5G/LTE & Wi-Fi Antenna,Omni-Directional CPE Front View

EPNT-2

Cross-Polarised, High Gain, Uni-Directional 5G/LTE & Wi-Fi CPE
Freq:
617 - 4200 MHz
Peak Gain:
11dBi
Pattern:
Uni-Directional
MIMO
2x2, 4x4
Connectors/Ports:
SMA
Antenna Enclosure Size:
Medium
(170 up to 600mm / 6.69 up to 23.62")
Mounting Options
Pole Mount, Wall Mount, Window Mount
Add to Compare
Get a Quote
Easy Installation
B71
A-EPNT-0001-V2-01,Cross-Polarised, Omni-Directional 5G/LTE & Wi-Fi Antenna,Omni-Directional CPE Featured Image

EPNT-1

Cross-Polarised, Omni-Directional 5G/LTE & Wi-Fi CPE
Freq:
617 - 3800 MHz
Peak Gain:
4.5dBi
Pattern:
Omni-Directional
MIMO
2x2, 4x4
Connectors/Ports:
SMA
Antenna Enclosure Size:
Medium
(170 up to 600mm / 6.69 up to 23.62")
Mounting Options
Pole Mount, Wall Mount, Window Mount
Add to Compare
Get a Quote

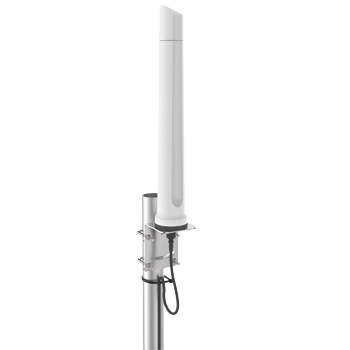

A-OMNI-0296-V2,Omni-Directional, Dual-band Wi-Fi Antenna,Dual-Band Wi-Fi Featured Image

OMNI-296

Omni-Directional, Dual-band Wi-Fi Antenna
Freq:
2400 - 7200 MHz
Peak Gain:
10dBi
Pattern:
Omni-Directional
MIMO
SISO
Connectors/Ports:
N-Type
Antenna Enclosure Size:
Medium
(170 up to 600mm / 6.69 up to 23.62")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
Easy Installation
B71
A-EPNT-0004-V1,X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE,Omni-Directional CPE Featured Image

EPNT-4

X-Polarised, Omni-Directional, 5G/LTE & Wi-Fi CPE
Freq:
617 - 4200 MHz
Peak Gain:
3dBi
Pattern:
Omni-Directional
MIMO
4x4
Connectors/Ports:
RA-SMA (m)
Antenna Enclosure Size:
Medium
(170 up to 600mm / 6.69 up to 23.62")
Mounting Options
Marine Mount, Pole Mount, Surface Mount, Wall Mount
Add to Compare
Get a Quote
B71
A-XPOL-0024-V1,X-Polarised, Uni-Directional 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Directional 5G Featured Image

XPOL-24

X-Polarised, Uni-Directional 4x4 MIMO 5G/LTE Antenna
Freq:
617 - 4200 MHz
Peak Gain:
11dBi
Pattern:
Uni-Directional
MIMO
4x4
Connectors/Ports:
SMA (m)
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote

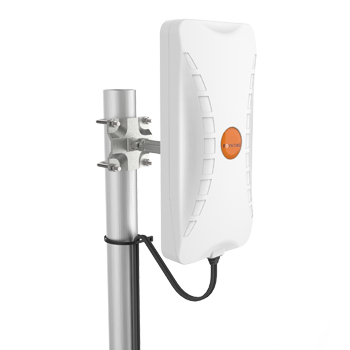

A-XPOL-0006-10M,X-Polarised, High Gain, Directional LTE Antenna (2X2 MIMO),Directional LTE Featured Image

XPOL-6

X-Polarised, High Gain, Directional LTE Antenna (2X2 MIMO)
Freq:
1710 - 2700 MHz
Peak Gain:
11dBi
Pattern:
Uni-Directional
MIMO
2x2
Connectors/Ports:
SMA
Antenna Enclosure Size:
Medium
(170 up to 600mm / 6.69 up to 23.62")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
B71

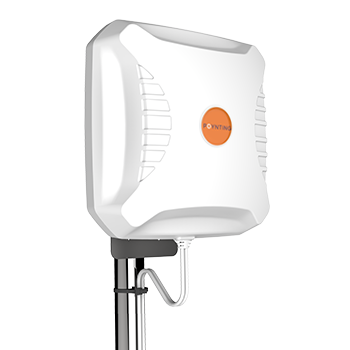

A-XPOL-0002-V3-US,X-Polarised, High Gain, Uni-Directional LTE/5G Antenna (2X2 MIMO),Directional 5G Featured Image

XPOL-2-5G

X-Polarised, High Gain, Uni-Directional 5G/LTE Antenna (2X2 MIMO)
Freq:
617 - 4200 MHz
Peak Gain:
11dBi
Pattern:
Uni-Directional
MIMO
2x2
Connectors/Ports:
N-Type, SMA
Antenna Enclosure Size:
Medium
(170 up to 600mm / 6.69 up to 23.62")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
B71

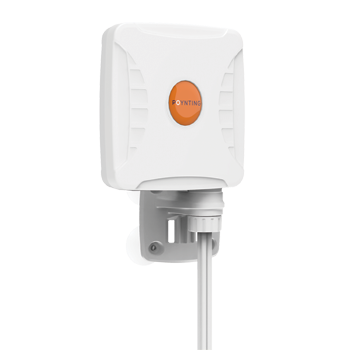

A-XPOL-0001-V2,X-Polarised, Omni-Directional, 2X2 LTE MIMO Antenna,Omni-Directional 5G Antenna Featured Image

XPOL-1-5G

X-Polarised, Omni-Directional, 2X2 LTE MIMO Antenna
Freq:
617 - 3800 MHz
Peak Gain:
3dBi
Pattern:
Omni-Directional
MIMO
2x2, 4x4
Connectors/Ports:
SMA
Antenna Enclosure Size:
Small
(Up to 170 mm / 6.69")
Mounting Options
Pole Mount, Wall Mount, Window Mount
Add to Compare
Get a Quote
B71

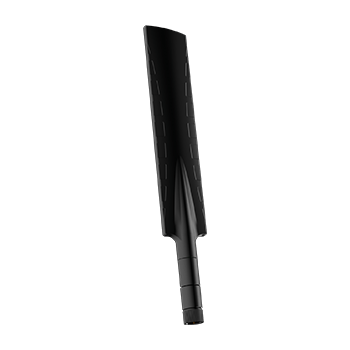

A-OMNI-0085-V3-01,Wideband Router/Equipment Mount 5G/LTE Antenna,5G Router Antenna Featured Image

OMNI-85

Wideband Router/Equipment Mount 5G/LTE Antenna
Freq:
617 - 3800 MHz
Peak Gain:
3.5dBi
Pattern:
Omni-Directional
MIMO
SISO
Connectors/Ports:
SMA
Antenna Enclosure Size:
Small
(Up to 170 mm / 6.69")
Mounting Options
Surface/Desk Mount
Add to Compare
Get a Quote
A-OMNI-0785-V1-01,Omni-Directional, Router/Equipment Mount Wi-Fi Antenna,Wi-Fi Router Antenna Featured Image

OMNI-785

Omni-Directional, Router/Equipment Mount Wi-Fi Antenna
Freq:
2400 - 7200 MHz
Peak Gain:
4dBi
Pattern:
Omni-Directional
MIMO
SISO
Connectors/Ports:
RP-SMA (m)
Antenna Enclosure Size:
Small
(Up to 170 mm / 6.69")
Mounting Options
Surface/Desk Mount
Add to Compare
Get a Quote
A-OMNI-0600-V2-01,Omni-Directional, 2X2 MIMO LTE Antenna,LTE MIMO Antenna Featured Image

OMNI-600

Omni-Directional, 2X2 MIMO LTE Antenna
Freq:
410 - 3800 MHz
Peak Gain:
6.2dBi
Pattern:
Omni-Directional
MIMO
2x2
Connectors/Ports:
SMA
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
B71
A-OMNI-0293-V1-01,Omni-Directional, Wideband 5G/LTE Antenna,5G Omni Featured Image

OMNI-293

Omni-Directional, Wideband 5G/LTE Antenna
Freq:
617 - 3800 MHz
Peak Gain:
9dBi
Pattern:
Omni-Directional
MIMO
SISO
Connectors/Ports:
N-Type
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
B71
A-OMNI-0292-V2,Omni-Directional, Wideband LTE Antenna,Wideband LTE Featured Image

OMNI-292

Omni-Directional, Wideband LTE Antenna
Freq:
617 - 2700 MHz
Peak Gain:
8dBi
Pattern:
Omni-Directional
MIMO
SISO
Connectors/Ports:
N-Type
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
B71
A-OMNI-0214-V1-01,Omni-Directional, 4x4 MIMO 5G/LTE Antenna,4x4 MIMO Antenna Featured Image

OMNI-214

Omni-Directional, 4x4 MIMO 5G/LTE Antenna
Freq:
617 - 3800 MHz
Peak Gain:
4dBi
Pattern:
Omni-Directional
MIMO
4x4
Connectors/Ports:
SMA
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote

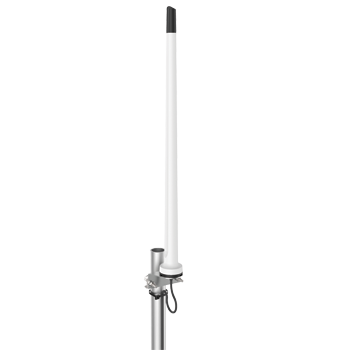

A-OMNI-0121-V3,Omni-Directional, Wideband LTE Antenna,Wideband LTE Featured Image

OMNI-121

Omni-Directional, Wideband LTE Antenna
Freq:
698 – 2700 MHz
Peak Gain:
6dBi
Pattern:
Omni-Directional
MIMO
SISO
Connectors/Ports:
FME, SMA
Antenna Enclosure Size:
Medium
(170 up to 600mm / 6.69 up to 23.62")
Mounting Options
L-Bracket Mount, Pole Mount
Add to Compare
Get a Quote
A-LPDA-0092,Wideband Log-Periodic Dipole Array Antenna,4G LTE Featured Image

LPDA-92

Uni-Directional, Wideband, LPDA 5G Antenna
Freq:
698-3800 MHz
Peak Gain:
11dBi
Pattern:
Uni-Directional
MIMO
SISO
Connectors/Ports:
N-Type, SMA
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount
Add to Compare
Get a Quote
B71
A-LPDA-0500,Ultra-Wideband Log-Periodic Dipole Array 5G Antenna,5G LPDA Featured Image

LPDA-500

Uni-Directional, Ultra-Wideband, LPDA 5G Antenna
Freq:
617 - 7200 MHz
Peak Gain:
11dBi
Pattern:
Uni-Directional
MIMO
SISO
Connectors/Ports:
N-Type (f)
Antenna Enclosure Size:
Large
(600 up to 2500mm / 23.62 up to 98.43")
Mounting Options
Pole Mount, Wall Mount
Add to Compare
Get a Quote
POYNTING DEKRA Seal ISO 9001
Our Company
Translate The site
Support
Help Me Choose an Antenna
In The Press
Contact Us

International

South Africa

Europe

USA

© POYNTING 1997 - 2024 | Designed & Developed by POYNTING Antennas (Pty) Ltd

I am interested, please contact me.

I need help, please contact me.

I have a specialised installation request, please contact me
  • Step 1: Select your Answer per Question
  • Step 2: Click on "Apply my Selection "Button
  • Step 3: Wait for the products to filter to your selection - see how the products adjust. You can remove selections in the selection box.
  • Step 4: Need help? Click on the Enquire Now link in each product, and we will call you back.

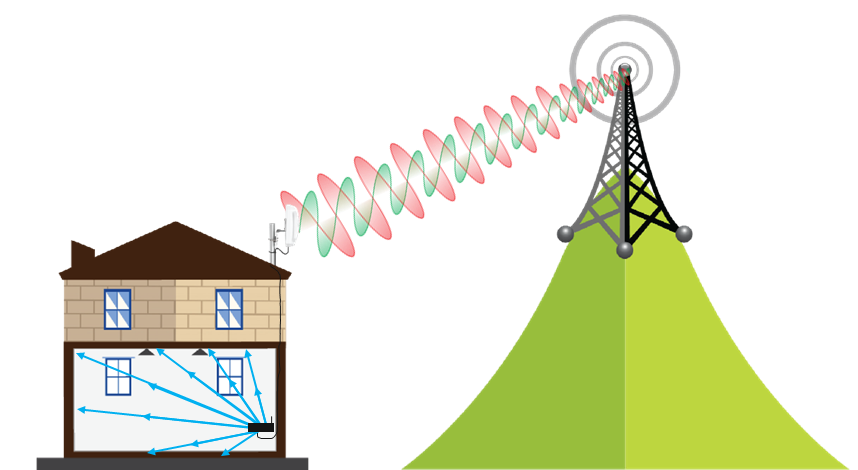

Fixed wireless access (FWA) is a technology that utilizes radio waves to deliver internet to your house or office (or any other fixed site).
