RF LIGHTING ARRESTER

Bi-directional RF Lightning Arrester for Types SMA F/M Interfaces
DC - 7GHz

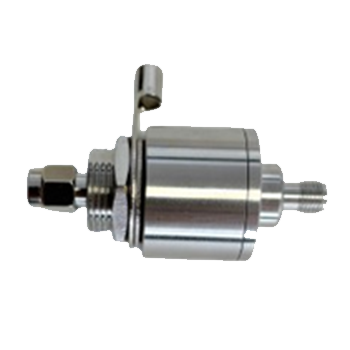

A-RFLA-SMSF-070 Bi-directional RF Lightning Arrester for Types SMA F/M Interfaces

Key Features

  • Surge Protection: Shields against voltage spikes due to lightning strikes
  • Bi-directional Protection especially in systems where surges come from multiple sources
  • Broad Frequency Range from DC to 7 GHz making it versatile and compatible with various communication technologies such as Cellular, Wi-Fi, and Satellite systems
  • Low Insertion Loss to maintain signal integrity while providing protection
  • High Surge Current Capacity capable of handling high surge currents from lightning strikes
  • Durable Build: Robust Brass construction to withstand harsh environmental conditions ensuring long-term reliability
  • Easy Installation: Simple setup saves time and effort
  • Compliance: Meets industry standards for reliability
Datasheet Options
POYNTING Antenna Solution Finder
A-RFLA-SMSF-070
A-RFLA-SMSF-070 Bi-directional RF Lightning Arrester for Types SMA F/M Interfaces
Surge Protection: Shields against voltage spikes due to lightning strikes
Poynting Antennas proudly introduces the A-RFLA-SMSF-070 RF lightning arrester, an outdoor protective device designed to safeguard connected equipment from potential damage caused by voltage surges due to lightning strikes and induced electrical surges. The RFLA lightning arrester diverts the high-voltage surge away from sensitive equipment, allowing it to safely discharge to the ground. This is especially crucial for outdoor antennas, which are often mounted at the highest point in an area and thus more susceptible to lightning strikes. The A-RFLA-SMSF-070 lightning arrester is a bi-directional RF device that can protect against surges coming from both directions (antenna to equipment and vice versa). This ensures comprehensive protection for all connected devices.

Ideal Applications

  • Telecommunication Infrastructure
  • Broadcast and Media Communications Setups
  • Wi-Fi and Wireless Networks
  • Satellite and GNSS Systems

Technical Specifications for RF LIGHTING ARRESTER

Additional information

Industry (Application)

, , , ,

Frequency Range

DC – 7 GHz
Connector Impedance

50 Ohm
VSWR

<1.4:1 across 90% of the bands
Insertion Loss

<1 dB across 90% of the bands
Dielectric Withstanding Voltage

≥2500V RMS, 50Hz at sea level
Rated DC Voltage

230 Volts
Working Voltage

≤1000Volts RMS, 50Hz at sea level
Maximum Impulse Discharge Current

10 KA

VSWR & Gain

Technical Drawing
